Snapdragon-845-baseboard
Simulate this board

About the Snapdragon-845-baseboard PCB

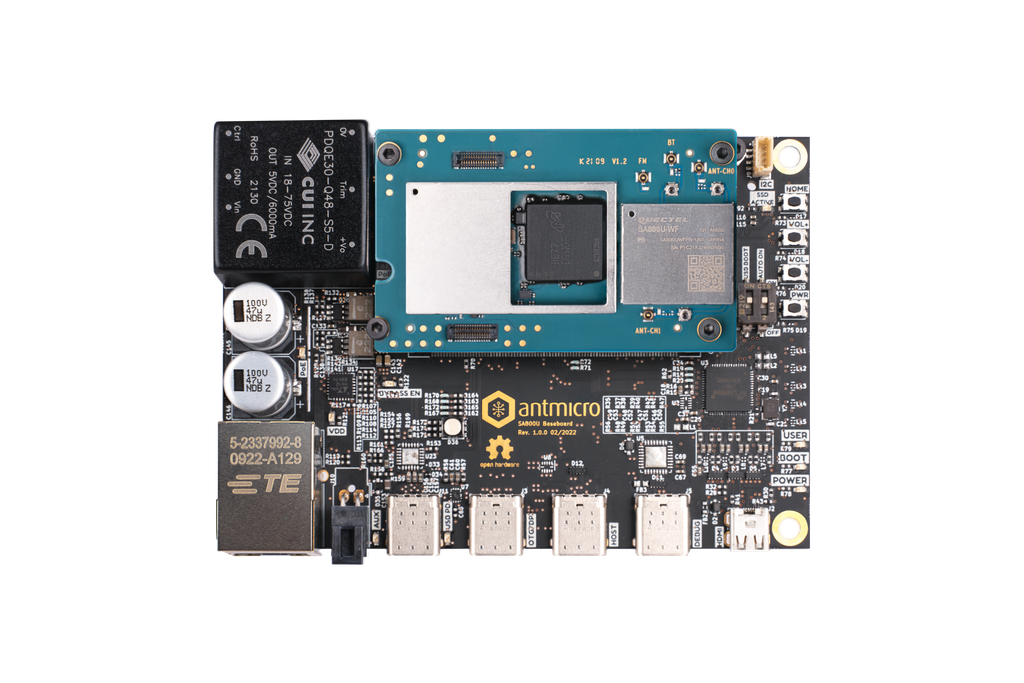

Snapdragon-845-baseboard is an open source PCB design by antmicro, published on GitHub under the Apache-2.0 license. It is a board, with 77 components from 22 distinct parts.

Other key parts include the TPS7A0518PDBVT, FT232RQ-REEL, TPS25820DSST, NX3DV42GU,115 and TXB0104RUTR. By type, the board carries 39 capacitors, 13 test points, 8 resistors, 7 diodes, 6 ICs and 3 connectors.

It belongs with the power & battery and iot & wireless designs in this gallery.

From the project

https://antmicro.com/blog/2022/04/open-source-snapdragon-845-baseboard/

This repository contains open hardware design files for an experimental development board for Quectel SA800-U System on Module (SoM) featuring Qualcomm Snapdragon 845 Mobile Platform. This development board break-routes the relevant I/O interfaces from the SoM keeping a small mechanical outline. The design files were prepared in KiCad.

The main repository directory contains KiCad PCB project files, a LICENSE and README. The remaining files are stored in the following directories:

Main components on the Snapdragon-845-baseboard

TPS7A0518PDBVTFT232RQ-REELTPS25820DSSTNX3DV42GU,115TXB0104RUTRCBTL02043ABQ,115

Snapdragon-845-baseboard bill of materials (BOM)

77 components, 22 distinct parts.

QtyPartRefs
1
TPS7A0518PDBVT
TPS7A0518P_SOT23-5
Texas Instruments
IC1
1
FT232RQ-REEL
FT232R_QFN
FTDI
U5
1
TPS25820DSST
Texas Instruments
U6
1
NX3DV42GU,115
NX3DV42GU
NXP
U7
1
TXB0104RUTR
TXB0104_UQFN
Texas Instruments
U8
1
CBTL02043ABQ,115
Nexperia
U9
3
12401598E4#2A
12401598E4_2A
Amphenol
J3, J4, J5
13
TP_0.75mm_SMD
TP99, TP100, TP101, TP102, TP103, TP104, TP105, TP106 +5
1
1N4148WS
ON Semiconductor
D6
6
PUSB3F96X
PUSB3F96X_PASS
Nexperia
D7, D8, D9, D10, D11, D12
1
BLM18EG221SN1D
FB_220Z_1A_0603
Murata
FB3
7
GRM188R60J476ME15D
C_47u_0603
Murata
C58, C59, C62, C76, C78, C89, C96
26
GRM155R61H104KE14D
C_100n_0402
Murata
C60, C61, C63, C64, C65, C67, C69, C72 +18
1
C1005X6S1A105K050BC
C_1u_0402
TDK
C66
2
GRM1555C1E470JA01D
C_47p_0402
Murata
C68, C70
1
CC0402MRX5R5BB106
C_10u_0402
Yaego
C71
1
0603YD105KAT2A
C_1u_0603
Walsin
C75
1
C1608X5R1V225K080AC
C_2u2_0603
TDK
C77
5
CR0402-FX-1003GLF
R_100k_0402
Bourns
R57, R58, R60, R61, R63
1
ERA2AED104X
R_100k_0.5%_0402
Panasonic
R59
Show 2 more
QtyPartRefs
1
CR0402-FX-2201GLF
R_2k2_0402
Bourns
R62
1
CR0402-FX-2003GLF
R_200k_0402
Bourns
R64

Snapdragon-845-baseboard design files

The KiCad project lives in the antmicro/snapdragon-845-baseboard repository on GitHub; these links point at the commit this page was built from.

Snapdragon-845-baseboard: common questions

How many components are on the Snapdragon-845-baseboard?

77 components, from 22 distinct parts. The full bill of materials is listed on this page.

Where can I download the Snapdragon-845-baseboard design files?

From the antmicro/snapdragon-845-baseboard repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the Snapdragon-845-baseboard design in my own project?

Yes, under the terms of its Apache-2.0 license, which antmicro chose for the repository.
