ProgrammingAdapter

Arkariusz·bms·ProgrammingAdapter/ProgrammingAdapter.kicad_pcb

ProgrammingAdapter PCB layout, top view — open source board by Arkariusz

About the ProgrammingAdapter PCB

ProgrammingAdapter is an open source PCB design by Arkariusz, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 10.5 × 83 mm, with 3 components from 3 distinct parts.

It belongs with the power & battery designs in this gallery.

From the project

Note this is a simple PCB which connects the 6 pin ISP header to a 6 pin ISP header (straight through)

Note this is a simple PCB which connects the 6 pin ISP header to a 6 pin ISP header (straight through)

It is often simpler to use a ribbon cable and two 6 pin plugs!

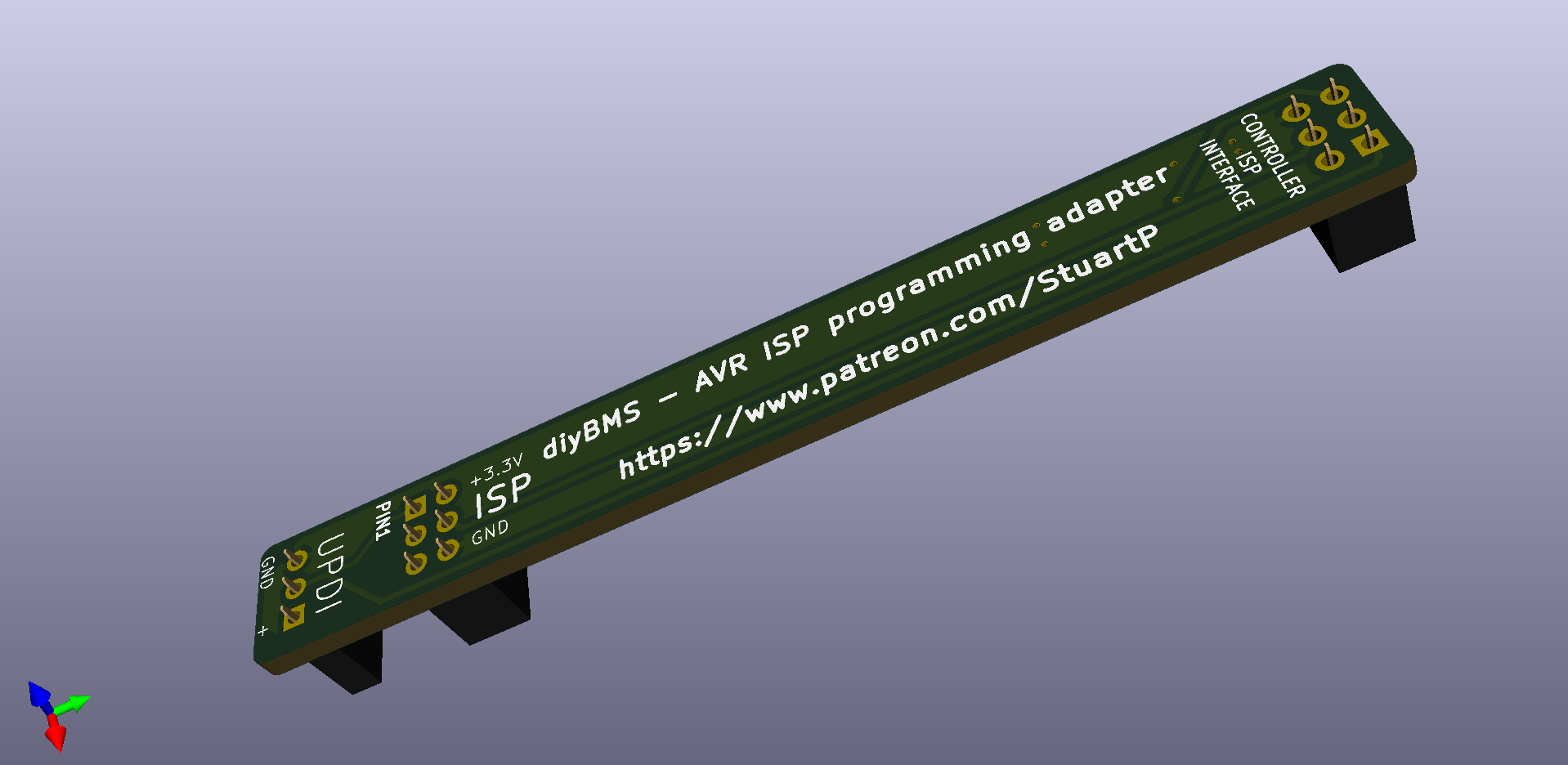

ProgrammingAdapter, from the project README
From the project README

ProgrammingAdapter bill of materials (BOM)

3 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AVR-ISP-6
J1
1
SCREWTERMINAL3PIN
AVR-ISP-6
J2
1
SCREWTERMINAL3PIN
Conn_01x03_Female
J3

ProgrammingAdapter design files

The KiCad project lives in the Arkariusz/bms repository on GitHub; these links point at the commit this page was built from.

ProgrammingAdapter: common questions

How big is the ProgrammingAdapter PCB?

The ProgrammingAdapter measures 10.5 × 83 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ProgrammingAdapter?

3 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ProgrammingAdapter design files?

From the Arkariusz/bms repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the ProgrammingAdapter design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
