SniqxPad PCB layout, top view — open source RP2040/RP2350 board by arnav-kr

About the SniqxPad PCB

SniqxPad is an open source RP2040/RP2350 PCB design by arnav-kr, published on GitHub under the AGPL-3.0 license. It is a 2-layer board measuring 81 × 62 mm, with 22 components from 5 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 10 diodes, 9 switches, 1 IC and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

A Versatile Macropad featuring a rotary encoder and OLED display.

A Versatile Macro Pad with a rotary encoder and OLED display.

2. In Design Tab upload the viaconfig.json` that you downloaded from latest release

3. Authorize your device while it is connected via usb, and select the device in popup.

4. Profit! Configure your keyboard however you want.

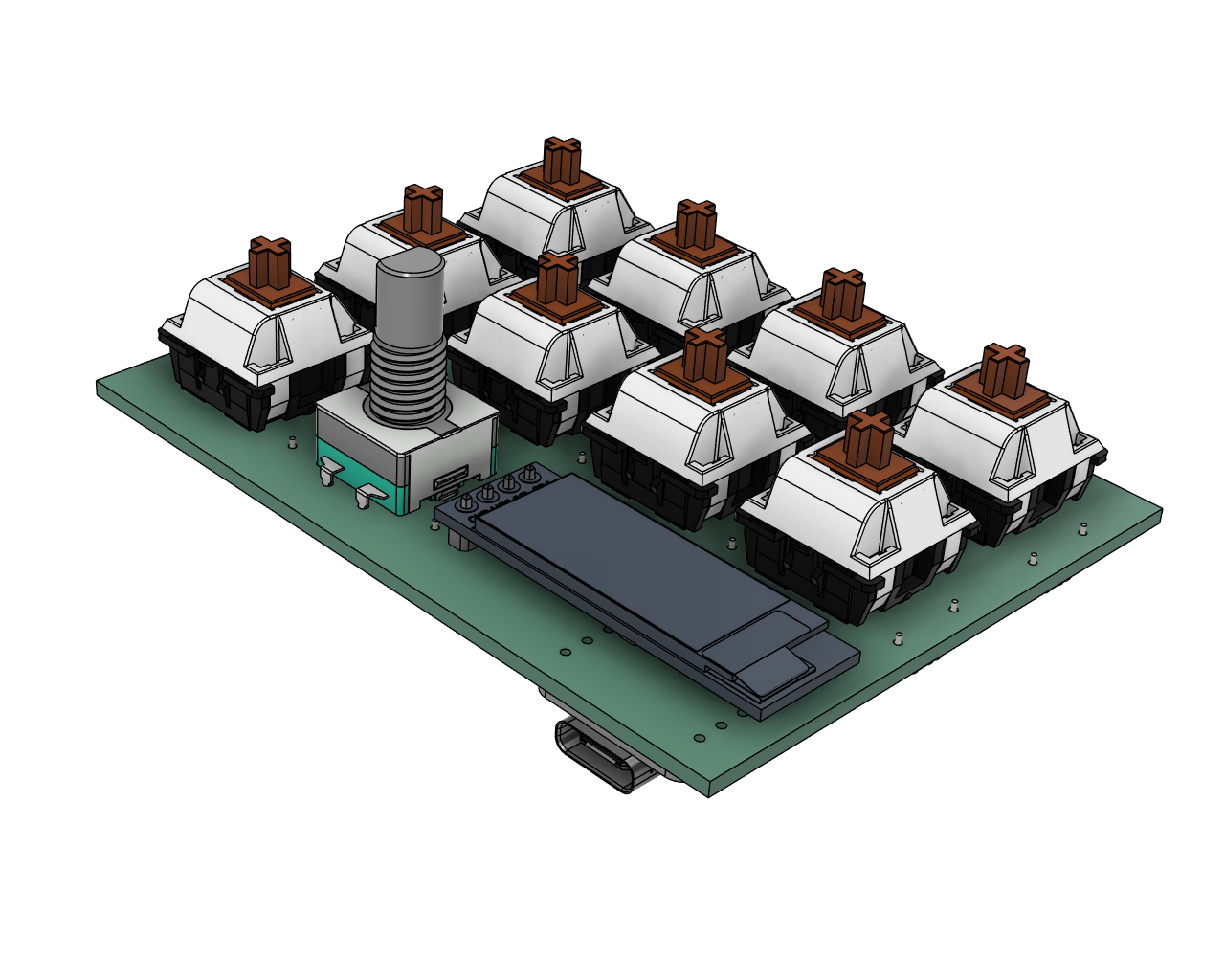

SniqxPad, from the project README
From the project README

Main components on the SniqxPad

XIAO-RP2040-DIP

SniqxPad bill of materials (BOM)

22 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
XIAO-RP2040-DIP
U1
1
OLED_128X32
OLED_128x32
J1
1
RotaryEncoder_Switch
E11
9
SW_PUSH_45DEG
SW_Push_45deg
SW1, SW5, SW6, SW7, SW8, SW9, SW10, SW11 +1
10
1N4148
D1, D4, D5, D6, D7, D8, D9, D10 +2

SniqxPad design files

The KiCad project lives in the arnav-kr/SniqxPad repository on GitHub; these links point at the commit this page was built from.

SniqxPad: common questions

What microcontroller does the SniqxPad use?

The SniqxPad is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.

How big is the SniqxPad PCB?

The SniqxPad measures 81 × 62 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SniqxPad?

22 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the SniqxPad design files?

From the arnav-kr/SniqxPad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the SniqxPad design in my own project?

Yes, under the terms of its AGPL-3.0 license, which arnav-kr chose for the repository.

Can I test firmware for the SniqxPad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
