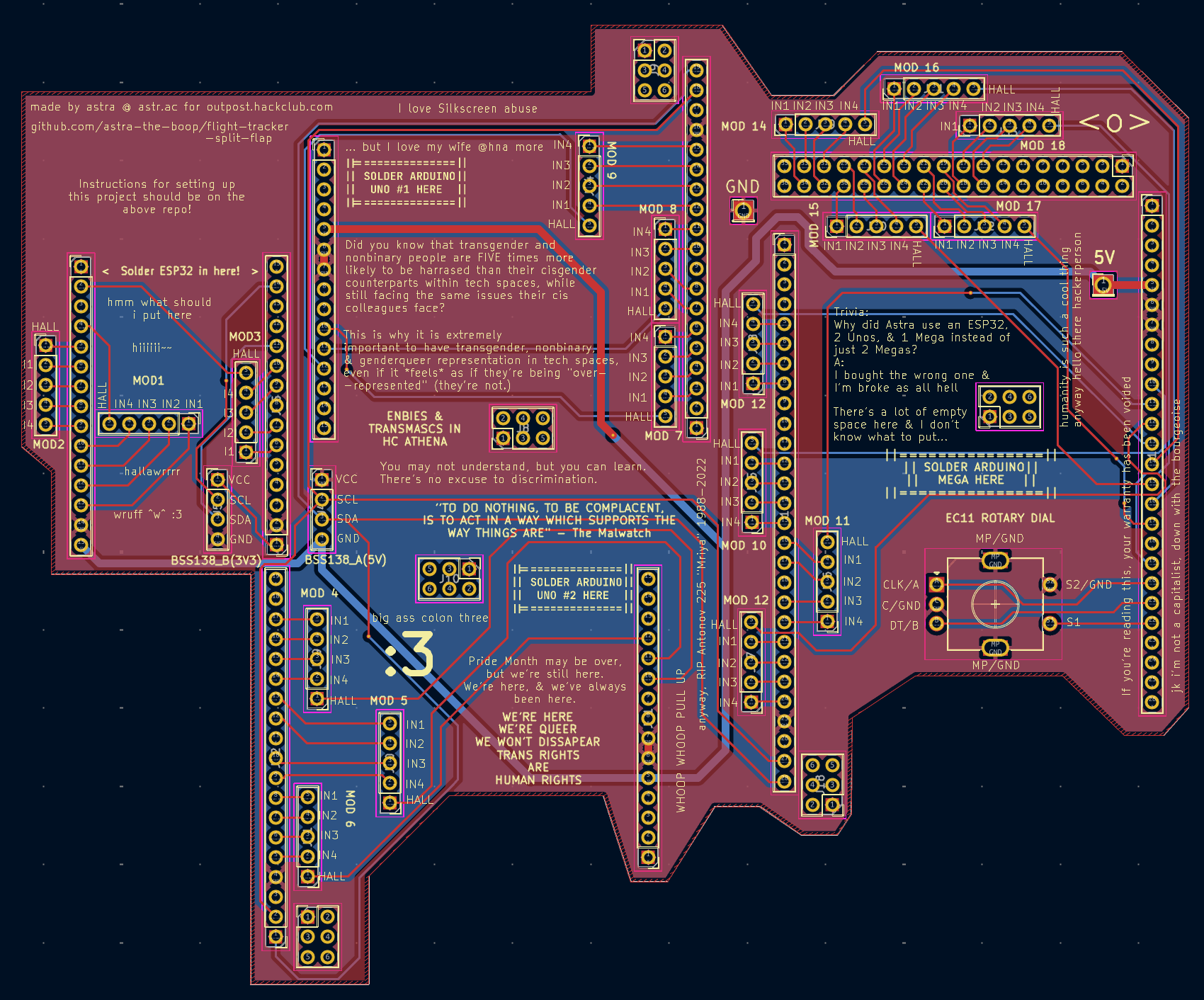

Outpost split flap esp32 PCB layout, top view — open source ESP32 board by astra-the-boop

About the Outpost split flap esp32 PCB

Outpost split flap esp32 is an open source ESP32 PCB design by astra-the-boop, published on GitHub under the MIT license. It is a 2-layer board measuring 149.2 × 122.6 mm, with 38 components from 38 distinct parts.

Its main chip is the ESP32_L, from the ESP32 family. By type, the board carries 37 connectors and 1 switch.

It belongs with the displays & leds designs in this gallery.

From the project

The display has 3 rows, the first row has 7 characters (1 showing logos, 2 showing airline IATA code, 4 showing flight number), the 2nd row has 6 characters showing the origin and destination airport, the 3rd row has 5 alphanumeric characters and shows flight status (INFLT, DELAY

The display has 3 rows, the first row has 7 characters (1 showing logos, 2 showing airline IATA code, 4 showing flight number), the 2nd row has 6 characters showing the origin and destination airport, the 3rd row has 5 alphanumeric characters and shows flight status (INFLT, DELAY, CNCLD, BRDNG), or time (23:59, 5 DAYS, 5 HRS, 3H49M, etc) which could be configured to different modes (only show status, only show time, or switch between the two).

Outpost split flap esp32, from the project README
From the project README

Outpost split flap esp32 bill of materials (BOM)

38 components, 38 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MOD1
J1
1
MOD2
J2
1
MOD3
J3
1
BSS138_A(5V)
J4
1
BSS138_B(3V3)
J5
1
UNO1_L
J6
1
UNO1_R
J7
1
UNO2_BTM
J8
1
UNO2_TOP
J9
1
UNO1_BTM
J10
1
UNO2_L
J11
1
UNO2_R
J12
1
UNO1_TOP
J13
1
MEGA_L
J14
1
MEGA_R
J15
1
MEGA_BTM
J16
1
MEGA_MID
J17
1
MEGA_TOP
J18
1
MOD_4
J19
1
MOD_5
J20
Show 18 more
QtyPartRefs
1
MOD_6
J21
1
MOD_7
J22
1
MOD_8
J23
1
MOD_9
J24
1
MOD_10
J25
1
MOD_11
J26
1
MOD_12
J27
1
MOD_13
J28
1
MOD_14
J29
1
MOD_15
J30
1
MOD_16
J31
1
MOD_17
J32
1
MOD_18
J33
1
ESP32_L
J34
1
ESP32_R
J35
1
GND
J36
1
5V
J37
1
EC11 ROTARY DIAL
SW1

Outpost split flap esp32 design files

The KiCad project lives in the astra-the-boop/flight-tracker-split-flap repository on GitHub; these links point at the commit this page was built from.

Outpost split flap esp32: common questions

What microcontroller does the Outpost split flap esp32 use?

The Outpost split flap esp32 is built around the ESP32_L, from the ESP32 family.

How big is the Outpost split flap esp32 PCB?

The Outpost split flap esp32 measures 149.2 × 122.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Outpost split flap esp32?

38 components, from 38 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Outpost split flap esp32 design files?

From the astra-the-boop/flight-tracker-split-flap repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Outpost split flap esp32 design in my own project?

Yes, under the terms of its MIT license, which astra-the-boop chose for the repository.

Can I test firmware for the Outpost split flap esp32 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
