Keyboard
ataradov·keyboard·hw/keyboard.kicad_pcb
About the Keyboard PCB
Keyboard is an open source Microchip SAM PCB design by ataradov, published on GitHub under the BSD-3-Clause license. It is a 2-layer board measuring 348.4 × 110.2 mm, with 252 components from 26 distinct parts.
Its main chip is the ATSAMD11C, from the Microchip SAM family. Other key parts include the NCA9555PW, MIC5504 and TL1963A. By type, the board carries 92 LEDs, 89 switches, 39 resistors, 13 capacitors, 9 ICs and 7 connectors.
It belongs with the keyboards designs in this gallery.
From the project

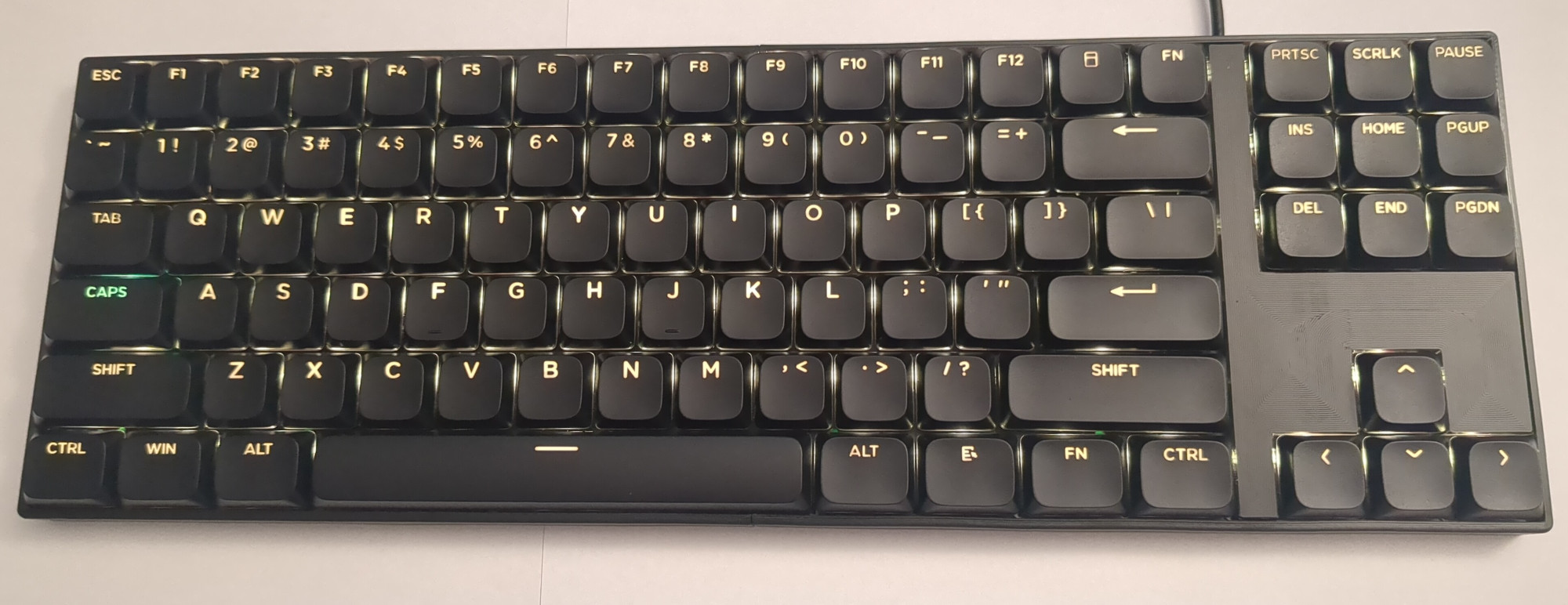

Custom keyboard
This is a keyboard I made for myself after Matias discontinued my favorite keyboard (FK308PC). I could not find a reasonable replacement, so I decided to just make my own.
The goals were: Tenkeyless, but otherwise standard layout. As low profile as possible. As quiet as possible. Single color static dim backlight. Minimal or no space between Escape and F-keys. Firmware I control, so I could modify it as needed.

Main components on the Keyboard
Keyboard bill of materials (BOM)
252 components, 26 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 6 | NCA9555PW | TSSOP-24-0.65mm | IC1, IC3, IC5, IC6, IC7, IC9 |
| 1 | MIC5504 | SOT-23-5 | IC2 |
| 1 | ATSAMD11C | SOIC-14 | IC4 |
| 1 | TL1963A | SOT-223-6 | IC8 |
| 1 | NTR4503N | SOT-23 | Q1 |
| 1 | NTR4502P | SOT-23 | Q2 |
| 1 | VBUS | Pin-2.54mm | J1 |
| 1 | D+ (G) | Pin-2.54mm | J2 |
| 1 | D- (W) | Pin-2.54mm | J3 |
| 2 | GND | Pin-2.54mm | J4, J7 |
| 1 | Debug | Debug-GDCR-2.54mm | J5 |
| 1 | DBG | Pin-2.54mm | J6 |
| 89 | TactSwitch | Gateron-KS-33 | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +81 |
| 3 | Green | 0603_LED | ALED1, ALED2, ALED3 |
| 89 | White | 0603_LED | LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +81 |
| 1 | ESDALD05UD4 | SOT-23-6 | D1 |
| 9 | 1uF | 0603 | C1, C2, C3, C8, C9, C10, C11, C12 +1 |
| 3 | 10uF | 0603 | C4, C5, C7 |
| 1 | 100nF | 0603 | C6 |
| 2 | 3.3K | 0603 | R1, R2 |
Show 6 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 100 | 0603 | R3 |
| 2 | 100K | 0603 | R4, R5 |
| 6 | TBD | 0603 | R6, R7, R9, R10, R11, R12 |
| 2 | 0 | 0603 | R8, R13 |
| 3 | 1K | 0603 | R14, R15, R16 |
| 23 | 100 | 0603x4 | RN1, RN2, RN3, RN4, RN5, RN6, RN7, RN8 +15 |
Keyboard design files
The KiCad project lives in the ataradov/keyboard repository on GitHub; these links point at the commit this page was built from.
- Layouthw/keyboard.kicad_pcb
- Schematichw/keyboard.kicad_sch
Keyboard: common questions
What microcontroller does the Keyboard use?
The Keyboard is built around the ATSAMD11C, from the Microchip SAM family.
How big is the Keyboard PCB?
The Keyboard measures 348.4 × 110.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Keyboard?
252 components, from 26 distinct parts. The full bill of materials is listed on this page.
Where can I download the Keyboard design files?
From the ataradov/keyboard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Keyboard design in my own project?
Yes, under the terms of its BSD-3-Clause license, which ataradov chose for the repository.
Can I test firmware for the Keyboard without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Microchip SAM firmware against it before you order a PCB.
