CC ESP mod 02

attachix·ukit-pcb·esp-board/CC_ESP_mod_02.kicad_pcb

CC ESP mod 02 PCB layout, top view — open source ESP8266 board by attachix

About the CC ESP mod 02 PCB

CC ESP mod 02 is an open source ESP8266 PCB design by attachix, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 21.6 × 32.4 mm, with 14 components from 7 distinct parts.

Its main chip is the ESP-12E, from the ESP8266 family. By type, the board carries 9 resistors, 2 connectors, 2 capacitors and 1 IC.

It belongs with the sensors designs in this gallery.

From the project

The PCBs needed to create the U:Kit sensor kit.

The licensor cannot revoke these freedoms as long as you follow the license terms.

* NonCommercial — You may not use the material for commercial purposes.

No additional restrictions — You may not apply legal terms or technological measures that legally restrict others from doing anything the license permits.

Credit can be attributed through a link to the creator website: https://attachix.com

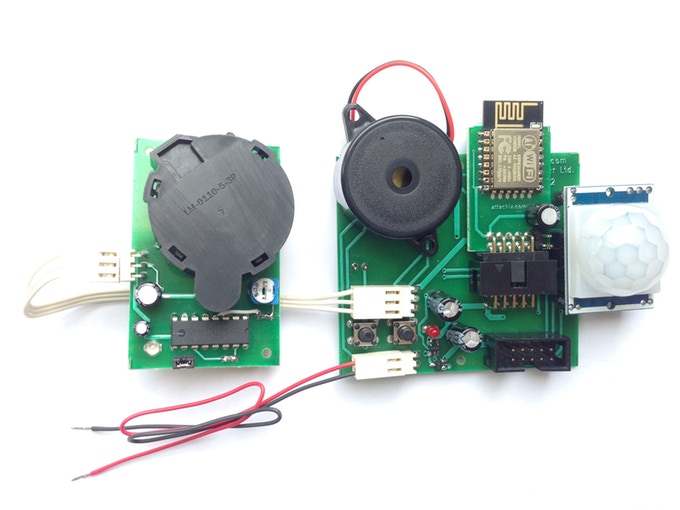

CC ESP mod 02, from the project README
From the project README

Main components on the CC ESP mod 02

ESP-12E

CC ESP mod 02 bill of materials (BOM)

14 components, 7 distinct parts.

QtyPartRefs
1
ESP-12E
U1
1
CONN_02X05
P1
1
CONN_01X02
P2
1
100n
C1
1
220u
C2
3
10K
R1, R2, R7
6
220
R3, R4, R5, R6, R8, R9

CC ESP mod 02 design files

The KiCad project lives in the attachix/ukit-pcb repository on GitHub; these links point at the commit this page was built from.

CC ESP mod 02: common questions

What microcontroller does the CC ESP mod 02 use?

The CC ESP mod 02 is built around the ESP-12E, from the ESP8266 family.

How big is the CC ESP mod 02 PCB?

The CC ESP mod 02 measures 21.6 × 32.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the CC ESP mod 02?

14 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the CC ESP mod 02 design files?

From the attachix/ukit-pcb repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the CC ESP mod 02 design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.

Can I test firmware for the CC ESP mod 02 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
