Besc hw PCB layout, top view — open source STM32 board by augustbering

About the Besc hw PCB

Besc hw is an open source STM32 PCB design by augustbering, published on GitHub. It is a 4-layer board measuring 39.9 × 97.5 mm, with 120 components from 44 distinct parts.

Its main chip is the STM32F40X_LQFP64, from the STM32 family. Other key parts include the TC2117, DRV8302 and SN65HVD232. By type, the board carries 49 capacitors, 48 resistors, 6 transistors, 6 connectors, 5 diodes and 4 ICs.

It belongs with the robotics & motion designs in this gallery.

From the project

This the Hardware for my open source custom ESC.

This the Hardware for my open source custom ESC.

Update: The BOM is no longer available on google docs, it is included in the design folder as an .ods file.

Have a look at this post for a tutorial on how to get started: http://vedder.se/2015/01/vesc-open-source-esc/

VESC Hardware is licensed under the Creative Commons Attribution-ShareAlike 4.0 International License. To view a copy of this license, visit http://creativecommons.org/licenses/by-sa/4.0/.

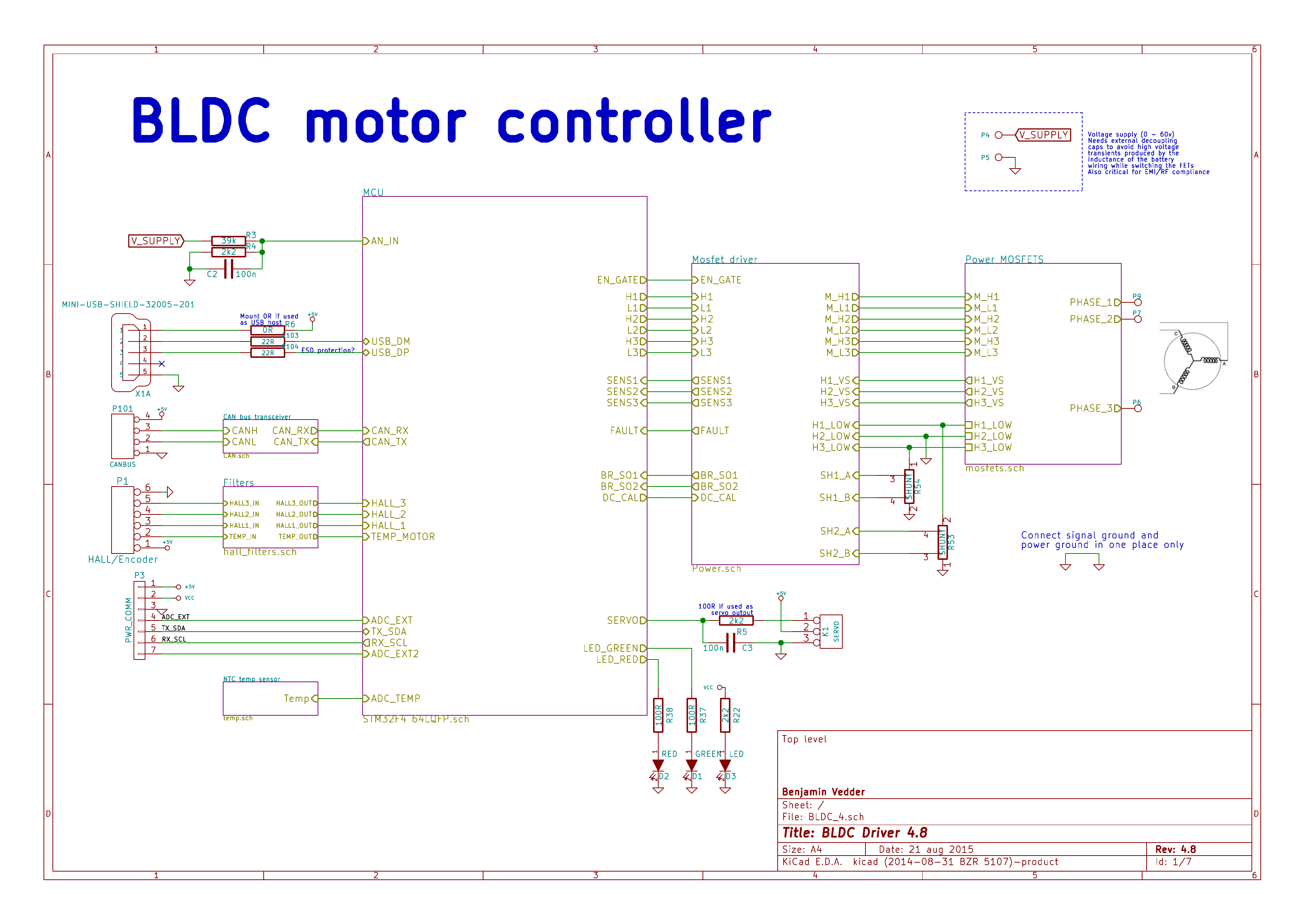

Besc hw, from the project README
From the project README

Main components on the Besc hw

STM32F40X_LQFP64TC2117DRV8302SN65HVD232

Besc hw bill of materials (BOM)

120 components, 44 distinct parts.

QtyPartRefs
1
STM32F40X_LQFP64
U1
1
TC2117
U2
1
DRV8302
U3
1
SN65HVD232
U401
6
IRFS7530
Q1, Q2, Q3, Q4, Q5, Q6
1
8MHz 10ppm
X2
3
Conn_01x02_Pin
J1, J2, J3
1
Conn_01x02_Pin
J4
1
Conn_02x16_Odd_Even
J101
1
USB_C_Receptacle_USB2.0_16P
J803
1
GREEN
D1
2
RED
D2, D3
1
DIODESCH
D4
1
TVS 5V
D5
1
22u
L1
8
10u,50V
C1, C8, C9, C37, C40, C43, C44, C49
4
100n
C2, C3, C27, C32
4
4n7
C4, C5, C6, C7
17
2.2u
C10, C11, C12, C13, C14, C16, C17, C18 +9
2
15p
C15, C38
Show 24 more
QtyPartRefs
1
120p
C19
1
6.8n
C21
1
22n
C22
2
100u
C25, C33
3
220n
C28, C29, C30
2
2.2n
C34, C36
1
10u,63V
C39
2
C_Polarized
C42, C45
1
15u,100V
C51
1
NCP18XH103F03RB
NTC 10k
R1
7
10k
R2, R7, R8, R9, R10, R20, R402
7
39k
R3, R23, R26, R30, R32, R36, R46
9
2k2
R4, R11, R12, R13, R22, R24, R27, R33 +1
1
R0
R6
1
18k
R17
1
3k3
R18
1
15k
R19
1
220k
R21
1
1M
R25
6
4R7
R28, R29, R34, R35, R42, R43
7
100R
R37, R38, R48, R49, R50, R51, R802
2
SHUNT
R53, R54
2
22R
R103, R104
1
120R
R401

Besc hw design files

The KiCad project lives in the augustbering/besc-hw repository on GitHub; these links point at the commit this page was built from.

Besc hw: common questions

What microcontroller does the Besc hw use?

The Besc hw is built around the STM32F40X_LQFP64, from the STM32 family.

How big is the Besc hw PCB?

The Besc hw measures 39.9 × 97.5 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Besc hw?

120 components, from 44 distinct parts. The full bill of materials is listed on this page.

Where can I download the Besc hw design files?

From the augustbering/besc-hw repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Besc hw design in my own project?

The repository has no license, so all rights stay with augustbering. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Besc hw without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
