Kicad piezo audio amplifier

AurelienCapron·kicad-piezo-audio-amplifier·hardware_kicad/BE-Elec-S2.kicad_pcb

Kicad piezo audio amplifier PCB layout, top view — open source board by AurelienCapron

About the Kicad piezo audio amplifier PCB

Kicad piezo audio amplifier is an open source PCB design by AurelienCapron, published on GitHub. It is a 4-layer board measuring 106.7 × 50.8 mm, with 74 components from 38 distinct parts.

Other key parts include the TSV912IDT and TLV1117-50. By type, the board carries 14 connectors, 11 resistors, 10 capacitors, 3 ICs, 3 jumpers and 3 diodes.

It belongs with the audio designs in this gallery.

From the project

Conception sous KiCad 9 et caractérisation de deux cartes PCB CMS pour l'amplification audio d'un capteur piézoélectrique : préampli, filtre Baxandall (ST TSV912), Loudness et étages de puissance Classe AB (TS4871) et Classe D (TS4962).

Conception, simulation SPICE, routage PCB en composants montés en surface (CMS) et caractérisation expérimentale d'une chaîne complète de conditionnement et d'amplification audio pour capteur piézoélectrique (guitare acoustique, contrebasse). Le système est alimenté en asymétrique (0V/5V) et réparti sur deux cartes électroniques : une première dédiée à la préamplification et à l'égalisation active (filtre de Baxandall), et une seconde intégrant une correction physiologique (Loudness) ainsi que deux étages de puissance sélectionnables (Classe AB et Classe D) pour piloter un haut-parleur de 8 Ω…

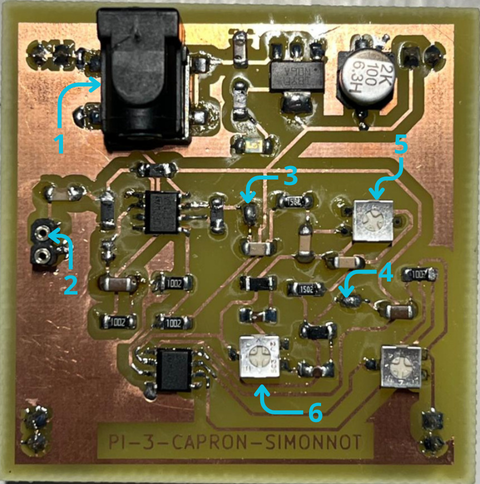

Kicad piezo audio amplifier, from the project README
From the project README

Main components on the Kicad piezo audio amplifier

TSV912IDTTLV1117-50

Kicad piezo audio amplifier bill of materials (BOM)

74 components, 38 distinct parts.

QtyPartRefs
2
TSV912IDT
U1, U2
1
TLV1117-50
U3
1
Barrel_Jack_Switch
J1
8
Conn_01x02
J2, J3, J4, J5, J6, J7, J8, J13
1
Conn_01x03
J9
4
Conn_01x01
J10, J11, J12, J14
2
33n
CB1, CB2
2
3.3n
CT1, CT2
1
1u
Cb3
1
330p
Cfeed1
1
0.33u
Cin1
1
1,1u
Cs1
2
100n
Cs2, Cs3
3
Jumper_2_CMS_Open
JP1, JP2, JP3
1
Conn_Sortie
JS1
2
Conn_01x02
Jin1, Jin2
2
15k
RB1, RB2
3
470
RD1, RD2, RD3
1
300K
RD4
2
3.3k
RT1, RT2
Show 18 more
QtyPartRefs
3
50k
RV1, RV2, RV3
1
10k
RV5
2
22k
Rfeed1, Rin1
1
330k
Rstb1
1
TS4871IDT
U_AB1
1
TS4962
U_D1
1
LED
D1
2
LED-CMS
D2, D3
2
1u
C1, C3
3
10u
C2, C4, C6
1
10u
C5
2
c=10u
C7, C11
1
15u
C9
1
180p
C10
3
100k
R1, R2, R6
5
10K
R3, R4, R5, R7, R11
2
150k
R8, R9
1
120
R10
