N64xCart-Dumper PCB layout, top view — open source RP2040/RP2350 board by Auroxin

About the N64xCart-Dumper PCB

N64xCart-Dumper is an open source RP2040/RP2350 PCB design by Auroxin, published on GitHub under the Custom license license. It is a 2-layer board measuring 90 × 60 mm, with 41 components from 25 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the TD6810-ADJ and N64-Cartridge. By type, the board carries 18 capacitors, 11 resistors, 3 ICs, 2 switches, 1 crystal and 1 connector.

From the project

an open hardware / firmware project for dumping Nintendo 64 cartridges as a USB mass storage device

N64xCart Dumper is a source-available hardware / firmware project for dumping Nintendo 64 cartridges as a USB mass storage device. It is based on the excellent DreamDumper64 project and the DrmDmp64mass` firmware, with changes for the N64xCart Dumper hardware.

- firmware/N64xCartDumper/ - RP2040 firmware adapted for the N64xCart Dumper board. - hardware-v2.1/ - current and recommended KiCad and production files. - hardware-v1.1/ - legacy hardware files, retained for reference only. - extras/ - extra project files, if any.

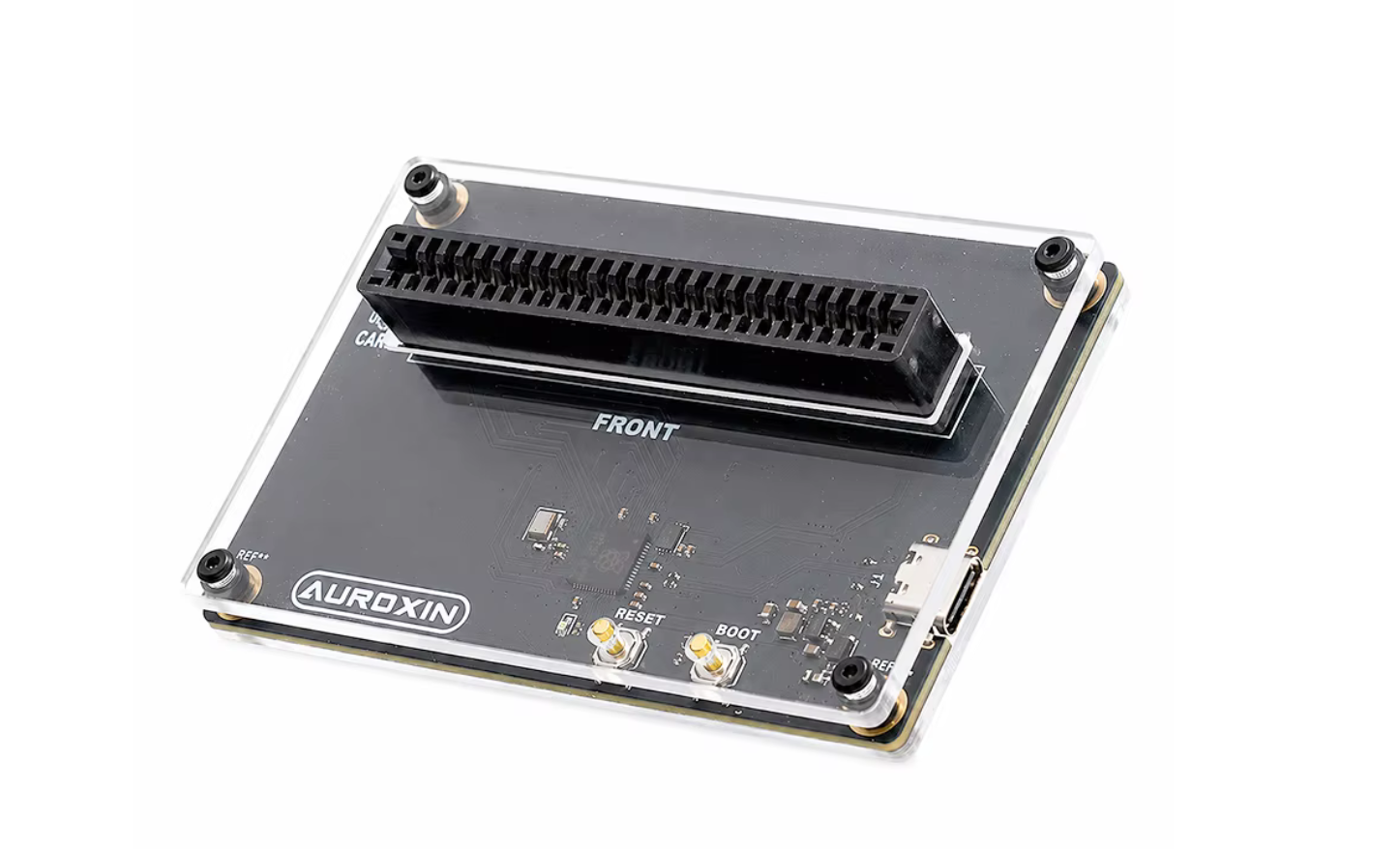

N64xCart-Dumper, from the project README
From the project README

Main components on the N64xCart-Dumper

TD6810-ADJN64-CartridgeRP2040

N64xCart-Dumper bill of materials (BOM)

41 components, 25 distinct parts.

QtyPartRefs
1
TD6810-ADJ
U1
1
N64-Cartridge
U2
1
RP2040
U3
1
3225_4P
Y1
1
USB_C_Receptacle_USB2.0_16P
J1
1
0805L050WR
F1
1
W25Q16JVUXIQ
FLASH1
2
TS011-TBW1EH1.5
XYECONN(辛译)
SW1, SW2
1
LED_0402
LED1
1
1N4002W
D1
1
2.2uH
L1
2
10uf 0603
C1, C9
2
22pf 0402
C2, C19
2
1uf 0402
C3, C10
1
22pF
C4
10
100nf 0402
C5, C6, C7, C8, C12, C13, C14, C15 +2
1
10uf
C17
2
1K 0402
R1, R11
1
10K 0402
R2
2
27r 0402 resistor
R3, R4
Show 5 more
QtyPartRefs
2
5.1K 0402
R5, R6
1
100K 0402
R7
1
680K
R8
1
470 0402
R9
1
150K
R12

N64xCart-Dumper design files

The KiCad project lives in the Auroxin/N64xCart-Dumper repository on GitHub; these links point at the commit this page was built from.

N64xCart-Dumper: common questions

What microcontroller does the N64xCart-Dumper use?

The N64xCart-Dumper is built around the RP2040, from the RP2040/RP2350 family.

How big is the N64xCart-Dumper PCB?

The N64xCart-Dumper measures 90 × 60 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the N64xCart-Dumper?

41 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the N64xCart-Dumper design files?

From the Auroxin/N64xCart-Dumper repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the N64xCart-Dumper design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the N64xCart-Dumper without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
