Avr mod player

bazsimarkus·avr-mod-player·schematic/avr-mod-player.kicad_pcb

Avr mod player PCB layout, top view — open source AVR/Arduino board by bazsimarkus

About the Avr mod player PCB

Avr mod player is an open source AVR/Arduino PCB design by bazsimarkus, published on GitHub. It is a 2-layer board measuring 100 × 60 mm, with 46 components from 28 distinct parts.

Its main chip is the ATmega32A-P, from the AVR/Arduino family. Other key parts include the AM29F040B-90PC, 74HC595, MCP6022 and L7805. By type, the board carries 15 capacitors, 12 resistors, 7 diodes, 5 ICs, 4 connectors and 2 switches.

It belongs with the audio and power & battery designs in this gallery.

From the project

An ATmega32-based ProTracker MOD music player with AM29F040B parallel flash memory and stereo PWM audio output. Program a MOD file onto the flash chip, plug it in, and music starts playing.

An ATmega32-based ProTracker MOD music player with AM29F040B parallel flash memory and stereo PWM audio output. Program a MOD file onto the flash chip, plug it in, and music starts playing.

- Overview - Features - Getting Started - What You Need - Programming the Flash Chip - Building and Flashing the Firmware - Schematic - Bill of Materials for the Main Board - How It Works - Flash Memory Interface - Audio Output - MOD Playback Engine - Channel Activity LEDs - Power Supply and Protection - Speaker Extension Board - Bill of Materials for the Speaker Extension Board - Documentation -…

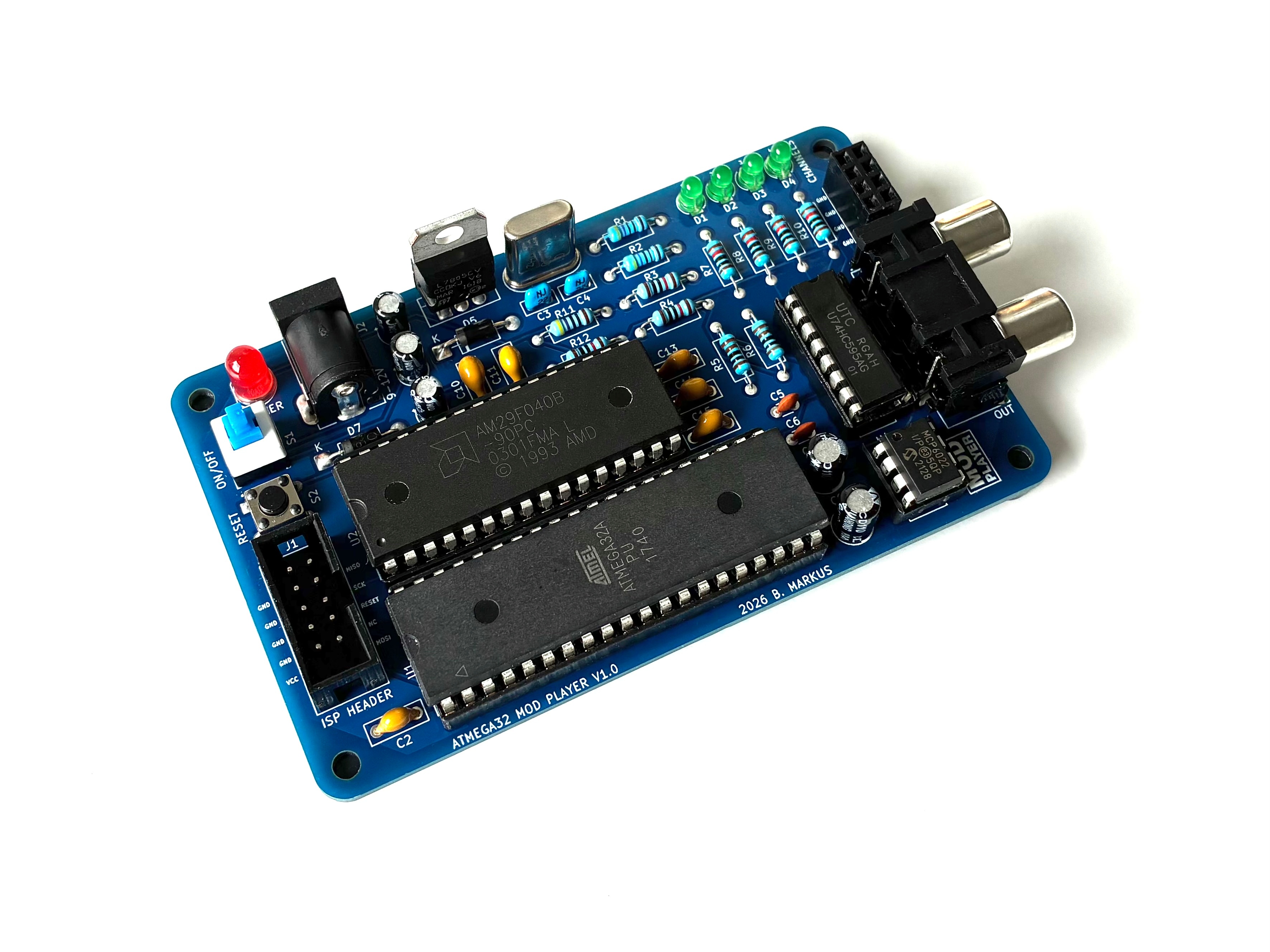

Avr mod player, from the project README
From the project README

Main components on the Avr mod player

ATmega32A-PAM29F040B-90PC74HC595MCP6022L7805

Avr mod player bill of materials (BOM)

46 components, 28 distinct parts.

QtyPartRefs
1
ATmega32A-P
U1
1
AM29F040B-90PC
U2
1
74HC595
U3
1
MCP6022
U4
1
L7805
U5
1
16 MHz
Y1
1
USBasp header
J1
1
DC-005 Power Jack
J2
1
RCA AV2-8.4-45
J3
1
Conn_02x04_Odd_Even
J4
1
Toggle Switch 7x7mm
S1
1
Button TACT 6x6mm
S2
4
LED 3mm GREEN
D1, D2, D3, D4
1
1N4001
D5
1
LED 5mm RED
D6
1
1N5819
D7
3
10uF
C1, C9, C12
4
100nF
C2, C13, C14, C15
2
22pF
C3, C4
2
10nF
C5, C6
Show 8 more
QtyPartRefs
2
220uF
C7, C8
1
0.33uF
C10
1
0.1uF
C11
2
4.7k
R1, R2
3
10k
R3, R4, R12
2
1k
R5, R6
4
10k
R7, R8, R9, R10
1
470R
R11

Avr mod player design files

The KiCad project lives in the bazsimarkus/avr-mod-player repository on GitHub; these links point at the commit this page was built from.

Avr mod player: common questions

What microcontroller does the Avr mod player use?

The Avr mod player is built around the ATmega32A-P, from the AVR/Arduino family.

How big is the Avr mod player PCB?

The Avr mod player measures 100 × 60 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Avr mod player?

46 components, from 28 distinct parts. The full bill of materials is listed on this page.

Where can I download the Avr mod player design files?

From the bazsimarkus/avr-mod-player repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Avr mod player design in my own project?

The repository has no license, so all rights stay with bazsimarkus. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Avr mod player without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
