Lamoka1-DEV-board
bearjhartjen·Lamoka1-project·Lamoka1-DEV-Brain/Kicad files/Lamoka1-DEV-board.kicad_pcb
About the Lamoka1-DEV-board
Lamoka1-DEV-board is an open source Raspberry Pi PCB design by bearjhartjen, published on GitHub under the CERN-OHL-W-2.0 license. It is a 2-layer board measuring 70 × 30 mm, with 48 components from 19 distinct parts.
Its main chip is the SC1511-A4, from the Raspberry Pi family. Other key parts include the AMS1117-3.3 and SN74AHCT1G125DBVR. By type, the board carries 21 capacitors, 10 diodes, 10 resistors, 3 ICs, 1 crystal and 1 connector.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
Flamingo and Cactus has paid PCBway to manufacture and assemble the DEV Brain, It has arrived, and works much better than expected. It does however make some high frequency audible noise when plugged in to low quality power sources so it is quite sensitive to low quality sources.
Flamingo and Cactus has paid PCBway to manufacture and assemble the DEV Brain, It has arrived, and works much better than expected. It does however make some high frequency audible noise when plugged in to low quality power sources so it is quite sensitive to low quality sources.

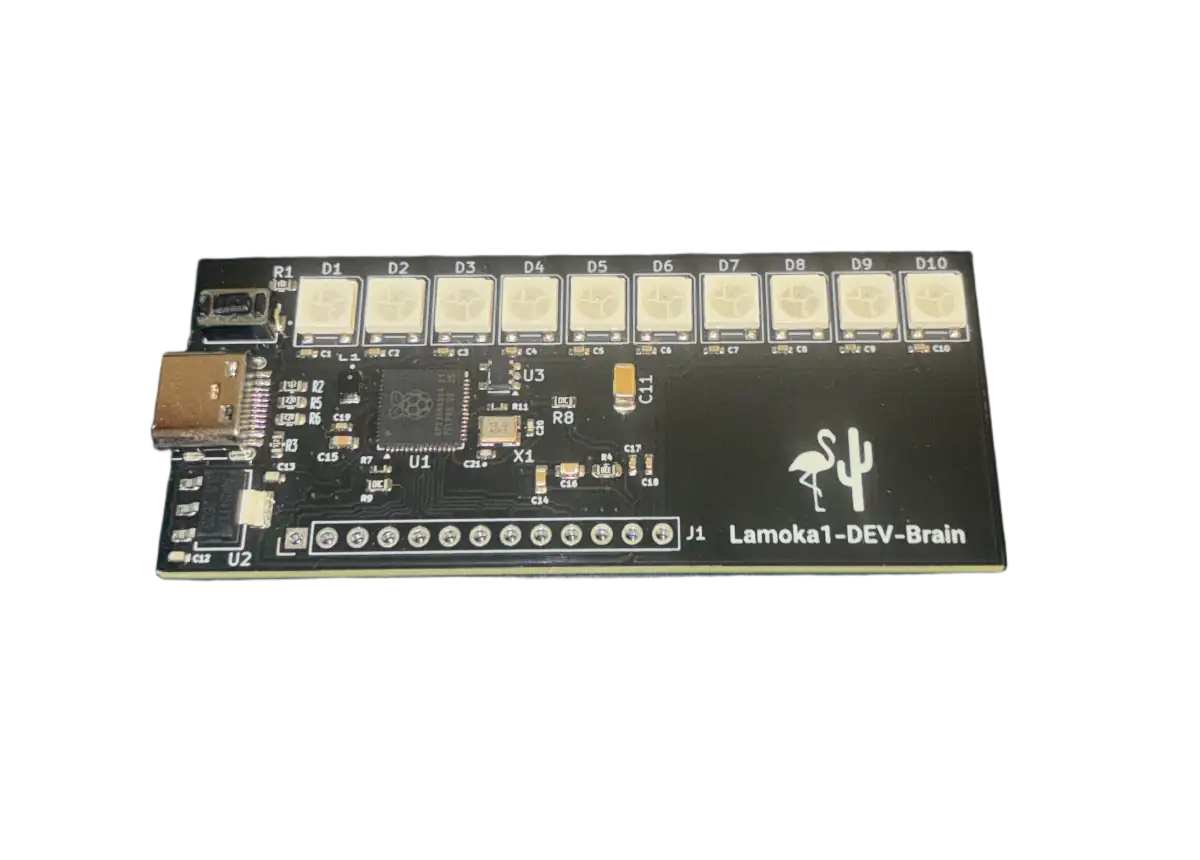

The DEV-Brain brings the Lamoka1’s MCU, lights, and simplicity into a 70x30mm laminated sandwich (PCB).

Main components on the Lamoka1-DEV-board
Lamoka1-DEV-board bill of materials (BOM)
48 components, 19 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SC1511-A4 RP2354A nRaspberry Pi | QFN-60-1EP_7x7mm_P0.4mm_EP3.4x3.4mm | U1 |
| 1 | AMS1117-3.3 EVVO | SOT-223_UMW | U2 |
| 1 | SN74AHCT1G125DBVR 74AHCT1G125 Texas Instruments | SOT-23-5 | U3 |
| 1 | ABM8-272-T3 Abracon LLC | ABM8-272-T3_ABR | X1 |
| 1 | TYPE-C-31-M-12 USB_C_Receptacle_USB2.0_14P HRO Electronics | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J3 |
| 1 | PTS636SM43JSMTR LFS PTS636 SM43J SMTR LFS C&K | SW_PTS636_CNK | SW1 |
| 10 | TZ-5050S2RGB-5V-I4-H1 WS2812B TUOZHAN | LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm | D1, D2, D3, D4, D5, D6, D7, D8 +2 |
| 1 | AOTA-B201610S3R3-101-T 3.3u Abracon | AOTAB201610S3R3101T | L1 |
| 13 | CL05B104KO5NNNC 100n Samsung Electro-Mechanics | CAP_0402_SAM | C1, C2, C3, C4, C5, C6, C7, C8 +5 |
| 1 | GRM31CR61A107MEA8K 100u Murata Electronics | C_1206_3216Metric | C11 |
| 2 | CL05A106MQ5NUNC 10u Samsung Electro-Mechanics | CAP_CL_05_SAM | C12, C13 |
| 3 | CL10A475KP8NNNC 4.7u Samsung Electro-Mechanics | CAP_0603_CL10A_1P6XP8_SAM | C14, C15, C16 |
| 2 | 0402CG150J500NT 15p FH | C_0402_1005Metric | C20, C21 |
| 1 | RC0603FR-07330RL 330 YAGEO | R_0603_1608Metric | R1 |
| 2 | RC0603FR-075K1L 5.1k YAGEO | RC0603N_YAG | R2, R3 |
| 1 | RC0603FR-0733RL 33 YAGEO | R_0603_1608Metric | R4 |
| 2 | RC0603FR-0727RL 27 YAGEO | R_0603_1608Metric | R5, R6 |
| 2 | RC0402FR-071KL 1k YAGEO | RC0402N_PAN | R7, R11 |
| 2 | RC0603FR-0710KL 10k YAGEO | RES_CRCW_0603 | R8, R9 |
Lamoka1-DEV-board design files
The KiCad project lives in the bearjhartjen/Lamoka1-project repository on GitHub; these links point at the commit this page was built from.
Lamoka1-DEV-board: common questions
What microcontroller does the Lamoka1-DEV-board use?
The Lamoka1-DEV-board is built around the SC1511-A4, from the Raspberry Pi family.
How big is the Lamoka1-DEV-board?
The Lamoka1-DEV-board measures 70 × 30 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Lamoka1-DEV-board?
48 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Lamoka1-DEV-board design files?
From the bearjhartjen/Lamoka1-project repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Lamoka1-DEV-board design in my own project?
Yes, under the terms of its CERN-OHL-W-2.0 license, which bearjhartjen chose for the repository.
Can I test firmware for the Lamoka1-DEV-board without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
