Cube green addon

bi-zone·offzone-hw·2024/cube_green_addon/cube_green_addon.kicad_pcb

Cube green addon PCB layout, top view — open source board by bi-zone
Simulate this board

About the Cube green addon PCB

Cube green addon is an open source PCB design by bi-zone, published on GitHub. It is a 2-layer board measuring 40.5 × 38.5 mm, with 5 components from 3 distinct parts.

By type, the board carries 3 diodes, 1 connector and 1 resistor.

From the project

Количество проводящих слоев: 2 Базовый материал (Core): FR4 Суммарная толщина платы, мм: 1.5 Толщина фольги, мкм: 18 или 35 Финишное покрытие площадок: HASL Паяльная маска: зелёная * Маркировка обозначений: чёрная

Количество проводящих слоев: 2 Базовый материал (Core): FR4 Суммарная толщина платы, мм: 1.5 Толщина фольги, мкм: 18 или 35 Финишное покрытие площадок: HASL Паяльная маска: зелёная * Маркировка обозначений: чёрная

3 светодиода 1206 Зелёные 1 резистор 1206 100 Ом * Коннектор PLD-4

1) Припаять резисторы. 2) Припаять светодиоды линзой вниз, соблюдая полярность. 3) Припаять коннектор.

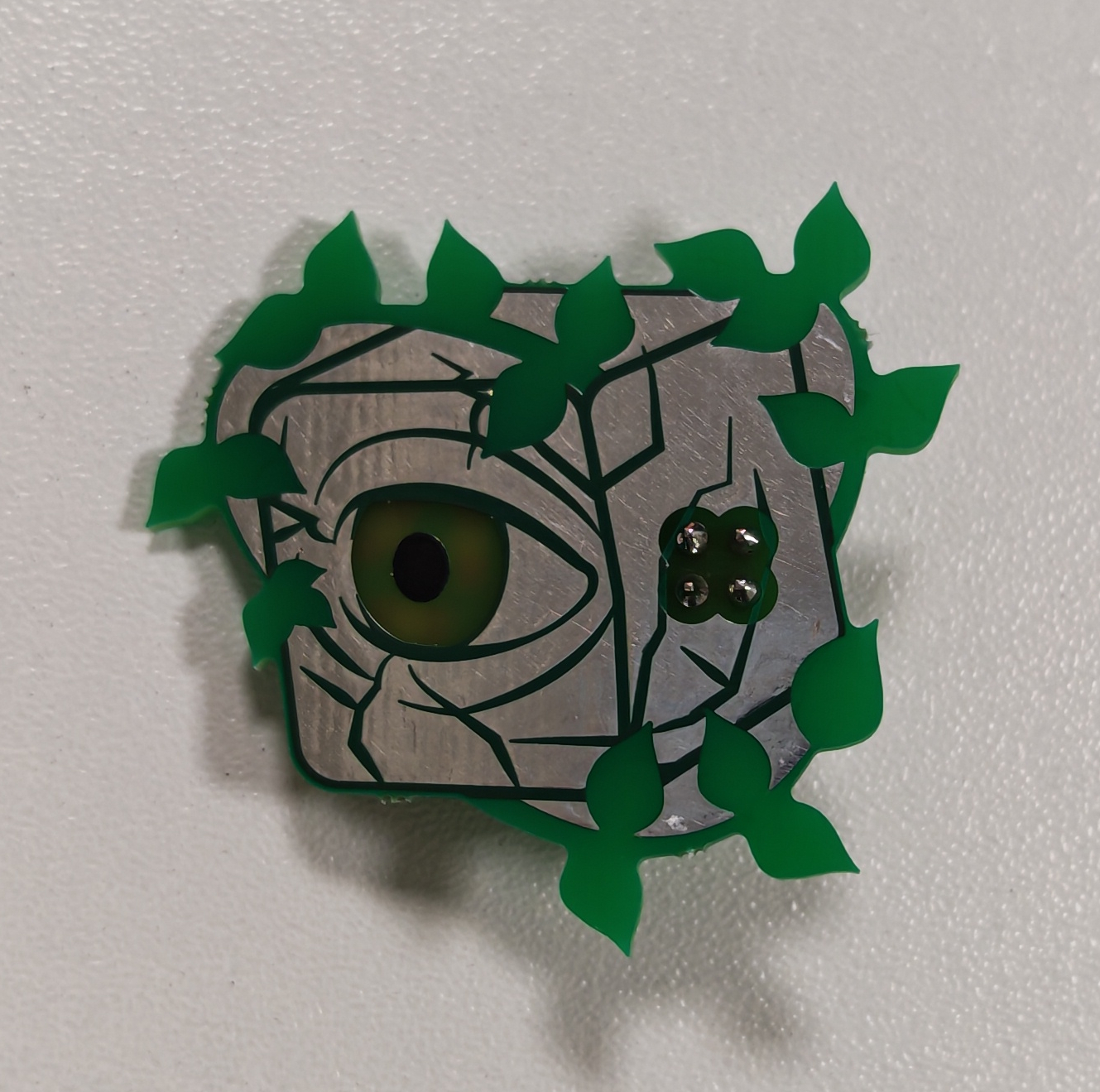

Cube green addon, from the project README
From the project README

Cube green addon bill of materials (BOM)

5 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Conn_02x02
J1
3
LED_GREEN
D1, D2, D3
1
100
R1

Cube green addon design files

The KiCad project lives in the bi-zone/offzone-hw repository on GitHub; these links point at the commit this page was built from.

Cube green addon: common questions

How big is the Cube green addon PCB?

The Cube green addon measures 40.5 × 38.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Cube green addon?

5 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Cube green addon design files?

From the bi-zone/offzone-hw repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Cube green addon design in my own project?

The repository has no license, so all rights stay with bi-zone. Use it as a reference, and ask the author before reusing the design.
