Lighthouse addon

bi-zone·offzone-hw·2023/lighthouse_addon/lighthouse_addon.kicad_pcb

Lighthouse addon PCB layout, top view — open source board by bi-zone
Simulate this board

About the Lighthouse addon PCB

Lighthouse addon is an open source PCB design by bi-zone, published on GitHub. It is a 2-layer board measuring 19.9 × 67.8 mm, with 11 components from 6 distinct parts.

By type, the board carries 4 resistors, 2 transistors, 2 diodes, 2 capacitors and 1 connector.

From the project

Количество проводящих слоев: 2 Базовый материал (Core): FR4 Суммарная толщина платы, мм: 1.5 Толщина фольги, мкм: 18 или 35 Финишное покрытие площадок: HASL Паяльная маска: чёрная * Маркировка обозначений: белая

Количество проводящих слоев: 2 Базовый материал (Core): FR4 Суммарная толщина платы, мм: 1.5 Толщина фольги, мкм: 18 или 35 Финишное покрытие площадок: HASL Паяльная маска: чёрная * Маркировка обозначений: белая

2 светодиода 3 мм Белые 2 резистора 1206 220 Ом 2 резистора 1206 100 кОм 2 транзистора BC807-25 2 конденсатора электролитических SMD 10 мкФ или 22 мкФ 1 коннектор PLD-4

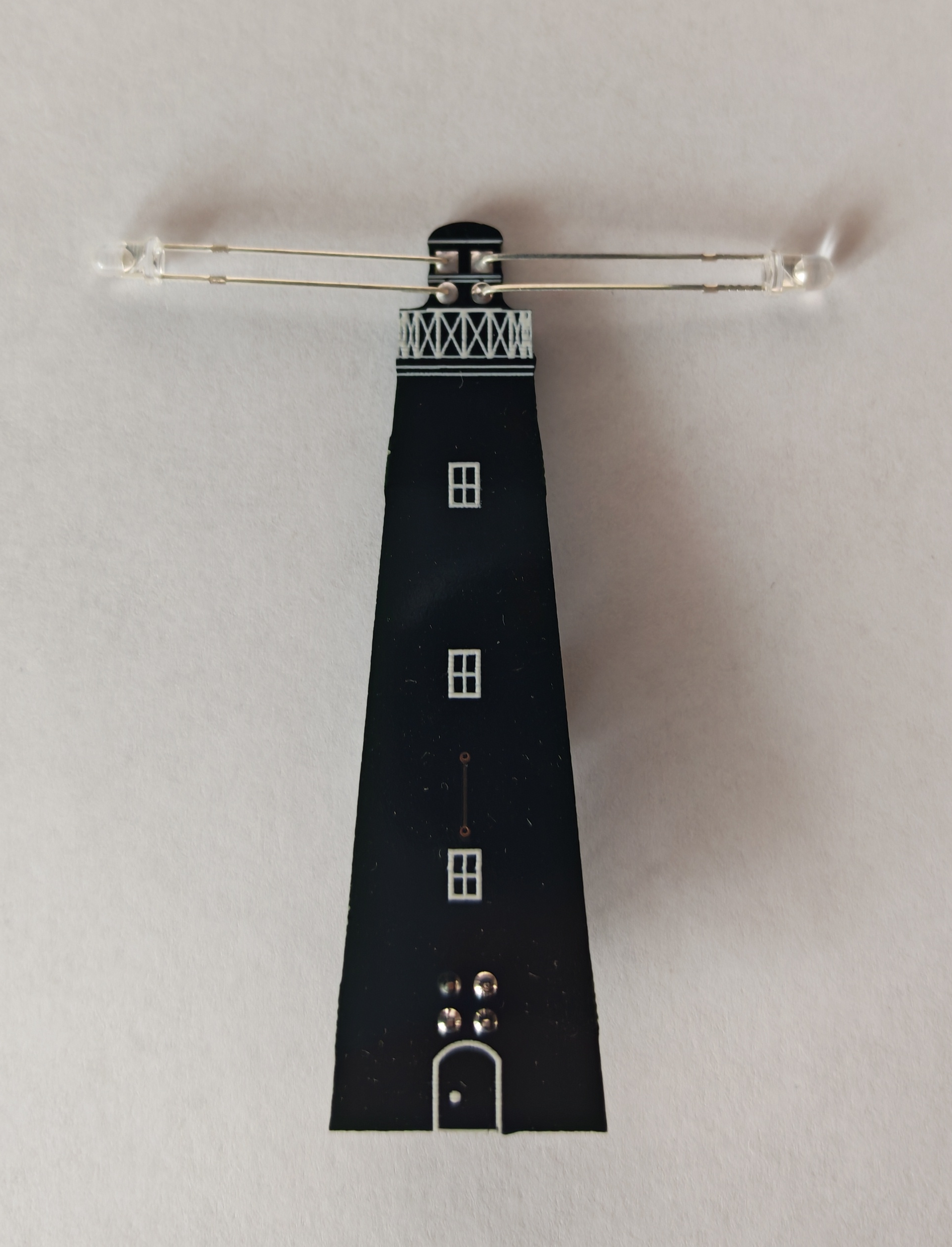

Lighthouse addon, from the project README
From the project README

Lighthouse addon bill of materials (BOM)

11 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
Q_PNP_BEC
Q1, Q2
1
Conn_02x02
J1
2
LED_WHITE
D1, D2
2
10 uF
C1, C2
2
100k
R1, R4
2
470
R2, R3

Lighthouse addon design files

The KiCad project lives in the bi-zone/offzone-hw repository on GitHub; these links point at the commit this page was built from.

Lighthouse addon: common questions

How big is the Lighthouse addon PCB?

The Lighthouse addon measures 19.9 × 67.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Lighthouse addon?

11 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Lighthouse addon design files?

From the bi-zone/offzone-hw repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Lighthouse addon design in my own project?

The repository has no license, so all rights stay with bi-zone. Use it as a reference, and ask the author before reusing the design.
