Narrowband-SDR PCB layout, top view — open source board by BillyWoods
Simulate this board

About the Narrowband-SDR PCB

Narrowband-SDR is an open source PCB design by BillyWoods, published on GitHub. It is a 4-layer board measuring 100 × 100 mm, with 463 components from 39 distinct parts.

Other key parts include the AMS1117-3.3, NB3L553, CY7C68013A-56PVX, 24LC128 and MCP1825S. By type, the board carries 214 capacitors, 194 resistors, 33 ICs, 12 inductors, 5 connectors and 2 crystals.

It belongs with the rf & radio designs in this gallery.

From the project

A four-channel narrowband SDR receiver based around the Mirics MSi001, MAX11131 and FX2LP.

Having libusb installed will also allow the host utility to be compiled.

The open source Sigrok project must be acknowledged for serving as an example of how to use the FX2LP at the core of this SDR for high speed data acquisition. Similarly, the Osmocom project, which provides a driver for the tuners used in this SDR, has assisted with interfacing and configuring the MSi001 tuners used in this project.

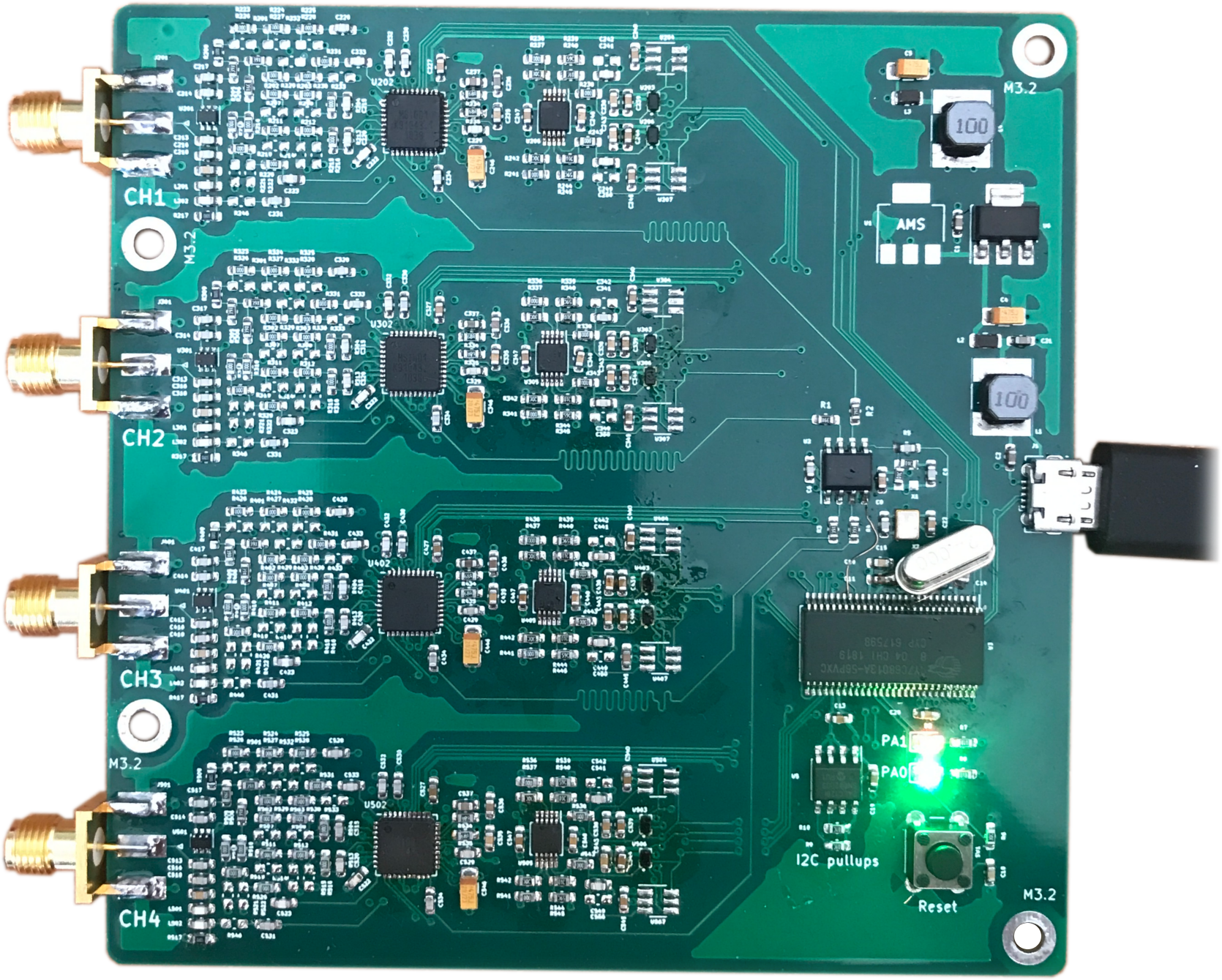

Narrowband-SDR, from the project README
From the project README

Main components on the Narrowband-SDR

AMS1117-3.3NB3L553CY7C68013A-56PVX24LC128MCP1825SBGA2803MSi001-Q40MAX19777AZA+ADS7883LMV712-N

Narrowband-SDR bill of materials (BOM)

463 components, 39 distinct parts.

QtyPartRefs
1
AMS1117-3.3
U1
1
NB3L553
U2
1
CY7C68013A-56PVX
U3
1
24LC128
U5
1
MCP1825S
U6
4
BGA2803
U201, U301, U401, U501
4
MSi001-Q40
U202, U302, U402, U502
8
MAX19777AZA+
U203, U206, U303, U306, U403, U406, U503, U506
8
ADS7883
U204, U207, U304, U307, U404, U407, U504, U507
4
LMV712-N
U205, U305, U405, U505
2
XO32
X1, X2
1
USB_B_Mini
J1
4
Molex 73251-1150 SMA
J201, J301, J401, J501
1
SW_Push
SW1
2
LED
D1, D2
2
10uH
L1, L4
2
4.7uH
L2, L3
8
150nH
L201, L202, L301, L302, L401, L402, L501, L502
7
1uF
C1, C2, C21, C226, C326, C426, C526
6
4.7uF
C4, C5, C246, C346, C446, C546
Show 19 more
QtyPartRefs
16
1nF
C6, C9, C15, C16, C230, C231, C234, C330 +8
35
0.1uF
C8, C10, C13, C14, C18, C20, C22, C201 +27
34
10nF
C11, C19, C210, C212, C227, C238, C240, C243 +26
72
100pF
C203, C204, C205, C206, C207, C208, C209, C211 +64
24
220pF
C215, C219, C220, C221, C232, C233, C315, C319 +16
8
390pF
C222, C223, C322, C323, C422, C423, C522, C523
4
39nF
C235, C335, C435, C535
8
2.7nF
C236, C237, C336, C337, C436, C437, C536, C537
16
25
R1, R2, R3, R4, R201, R205, R206, R301 +8
113
0
R5, R202, R203, R204, R207, R208, R210, R211 +105
9
20k
R6, R237, R242, R337, R342, R437, R442, R537 +1
2
1k
R7, R8
2
2.2k
R9, R10
8
50
R209, R217, R309, R317, R409, R417, R509, R517
4
499R
R234, R334, R434, R534
4
360R
R235, R335, R435, R535
20
0R
R236, R238, R241, R243, R246, R336, R338, R341 +12
8
40.2k
R239, R244, R339, R344, R439, R444, R539, R544
8
10k
R240, R245, R340, R345, R440, R445, R540, R545

Narrowband-SDR design files

The KiCad project lives in the BillyWoods/Narrowband-SDR repository on GitHub; these links point at the commit this page was built from.

Narrowband-SDR: common questions

How big is the Narrowband-SDR PCB?

The Narrowband-SDR measures 100 × 100 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Narrowband-SDR?

463 components, from 39 distinct parts. The full bill of materials is listed on this page.

Where can I download the Narrowband-SDR design files?

From the BillyWoods/Narrowband-SDR repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Narrowband-SDR design in my own project?

The repository has no license, so all rights stay with BillyWoods. Use it as a reference, and ask the author before reusing the design.
