About the MiniNDP PCB
MiniNDP is an open source PCB design by bkw777, published on GitHub under the Custom license license. It is a 2-layer board measuring 60 × 34 mm, with 16 components from 10 distinct parts.
Other key parts include the AS6C8008-55ZIN, 74HC238D,653, 74HC4040D,653 and CY74FCT841CTSOC. By type, the board carries 7 capacitors, 4 ICs, 2 diodes, 1 connector, 1 battery holder and 1 resistor.
From the project
Reproduction & documentation of Node Systems DATAPAC
This repo documents the NODE Systems DATAPAC, rampac, and a new clone, the MiniNDP.

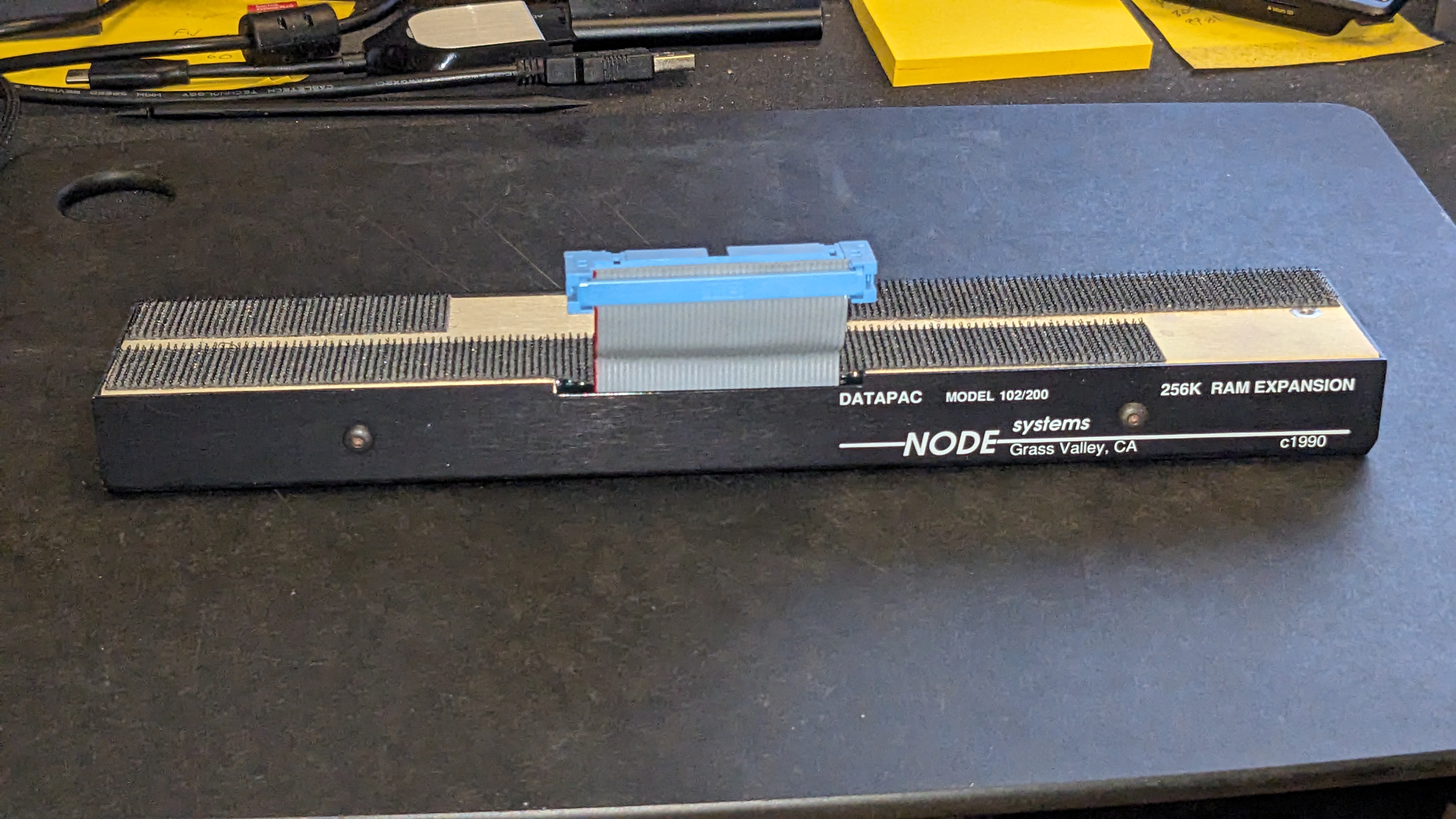

The NODE Systems DATAPAC/rampac was a popular ram disk peripheral for TRS-80 / TANDY Models 100, 102, & 200 computers.
The schematic and PCB below documents the DATAPAC.
rampac is a smaller later version of the same device that uses fewer larger sram chips and replaces most of the discrete logic IC's with a single PLD, but functions exactly the same.

Main components on the MiniNDP
MiniNDP bill of materials (BOM)
16 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AS6C8008-55ZIN AS6C8008_TSOPII | TSOP-II-44 | U1 |
| 1 | 74HC238D,653 HC238 | SOIC-16_3.9x9.9mm_P1.27mm | U2 |
| 1 | 74HC4040D,653 HC4040 | SOIC-16_3.9x9.9mm_P1.27mm | U3 |
| 1 | CY74FCT841CTSOC FCT841 | SOIC-24 | U4 |
| 1 | 302-S401 Conn_02x20_Odd_Even | IDC-Header_2x20_P2.54mm_Vertical | J1 |
| 1 | Keystone 3034 Keystone_3034 | Keystone_3028_3034_bkw | BT1 |
| 2 | FDLL4148 LL4148 | D_MiniMELF | D1, D2 |
| 5 | CL21B105KAFNNNE 1u | C_0805 | C1, C2, C3, C4, C5 |
| 2 | C3216X5R1E476M160DC 47u | C_1206 | C6, C7 |
| 1 | RMCF0805FT47K0 47k | R_0805 | R1 |
MiniNDP design files
The KiCad project lives in the bkw777/NODE_DATAPAC repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/MiniNDP.kicad_pcb
- SchematicPCB/MiniNDP.kicad_sch
- BOMPCB/out/MiniNDP_OG.bom.csv
MiniNDP: common questions
How big is the MiniNDP PCB?
The MiniNDP measures 60 × 34 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the MiniNDP?
16 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the MiniNDP design files?
From the bkw777/NODE_DATAPAC repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the MiniNDP design in my own project?
It is published under Custom license, which limits how it may be reused; read the license before building on it.
