Esp32-pcb bitraf layout, top view — open source ESP32 board by blurpy

About the Esp32-pcb bitraf

Esp32-pcb bitraf is an open source ESP32 PCB design by blurpy, published on GitHub under the MIT license. It is a 2-layer board measuring 25.4 × 55.3 mm, with 23 components from 13 distinct parts.

Its main chip is the ESP32-S2-M, from the ESP32 family. Other key parts include the LM1117-3.3. By type, the board carries 8 resistors, 5 capacitors, 3 connectors, 3 diodes and 2 ICs.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

ESP32 PCB created at Bitraf workshop

ESP32 S2 Mini Development Board PCB created with KiCad 6 at Bitraf workshop, to be ordered from PCBWay.

Reference PCB for the workshop available here: https://github.com/jenschr/ESP32-workshop-files

Inspired by the official development board ESP32-S2-DevKitM-1.

Reset switch Boot switch for entering programming mode Power LED General purpose LED DotStar LED USB-C for power and programming * Fits on a breadboard

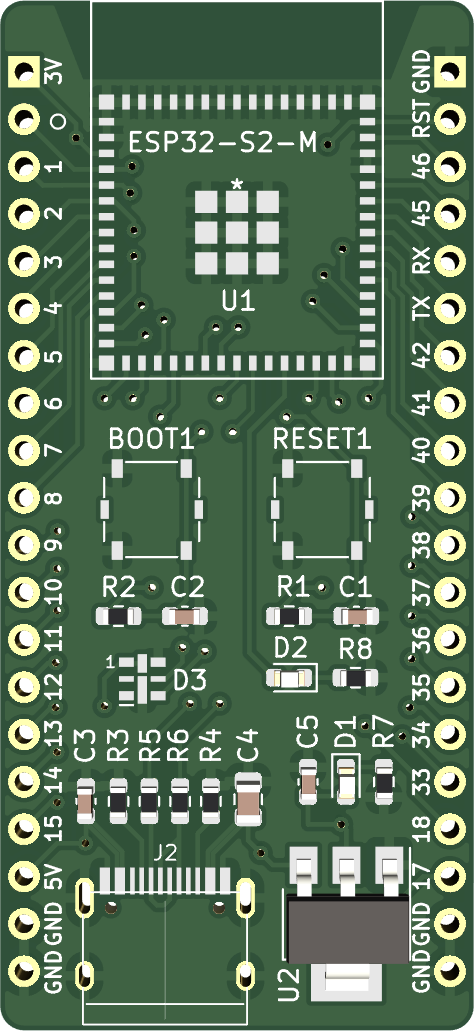

Esp32-pcb bitraf, from the project README
From the project README

Main components on the Esp32-pcb bitraf

ESP32-S2-MLM1117-3.3

Esp32-pcb bitraf bill of materials (BOM)

23 components, 13 distinct parts.

QtyPartRefs
1
ESP32-S2-M
U1
1
LM1117-3.3
U2
2
Conn_01x20_Male
J1, J3
1
USB_C_Receptacle_USB2.0
J2
2
SW_Push
BOOT1, RESET1
2
LED
D1, D2
1
APA102-2020
D3
4
0.1uF
C1, C2, C3, C5
1
10uF
C4
2
10K
R1, R2
2
5.1K
R3, R4
2
33R
R5, R6
2
1K
R7, R8

Esp32-pcb bitraf design files

The KiCad project lives in the blurpy/esp32-pcb-bitraf repository on GitHub; these links point at the commit this page was built from.

Esp32-pcb bitraf: common questions

What microcontroller does the Esp32-pcb bitraf use?

The Esp32-pcb bitraf is built around the ESP32-S2-M, from the ESP32 family.

How big is the Esp32-pcb bitraf?

The Esp32-pcb bitraf measures 25.4 × 55.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esp32-pcb bitraf?

23 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the Esp32-pcb bitraf design files?

From the blurpy/esp32-pcb-bitraf repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Esp32-pcb bitraf design in my own project?

Yes, under the terms of its MIT license, which blurpy chose for the repository.

Can I test firmware for the Esp32-pcb bitraf without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
