About the CPC464-2MINICAS1 PCB

CPC464-2MINICAS1 is an open source PCB design by Board-Folk, published on GitHub. It is a 2-layer board measuring 54.1 × 48 mm, with 19 components from 5 distinct parts.

Other key parts include the 4164. By type, the board carries 8 ICs, 8 capacitors, 1 connector, 1 diode and 1 resistor.

From the project

Mini CPC464

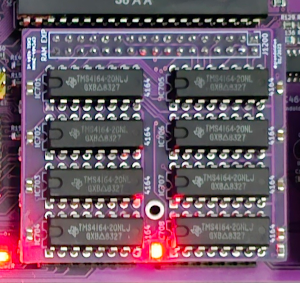

CPC464-2MINICAS1, from the project README
From the project README

Main components on the CPC464-2MINICAS1

4164

CPC464-2MINICAS1 bill of materials (BOM)

19 components, 5 distinct parts.

QtyPartRefs
8
4164
IC701, IC702, IC703, IC704, IC705, IC706, IC707, IC708
1
RAM EXP
J1200
1
POWER
D1220
8
100nF
C701, C702, C703, C704, C705, C706, C707, C708
1
1K
R1220

CPC464-2MINICAS1 design files

The KiCad project lives in the Board-Folk/CPC464-2MINI repository on GitHub; these links point at the commit this page was built from.

CPC464-2MINICAS1: common questions

How big is the CPC464-2MINICAS1 PCB?

The CPC464-2MINICAS1 measures 54.1 × 48 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the CPC464-2MINICAS1?

19 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the CPC464-2MINICAS1 design files?

From the Board-Folk/CPC464-2MINI repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the CPC464-2MINICAS1 design in my own project?

The repository has no license, so all rights stay with Board-Folk. Use it as a reference, and ask the author before reusing the design.
