CPC464-2MINI

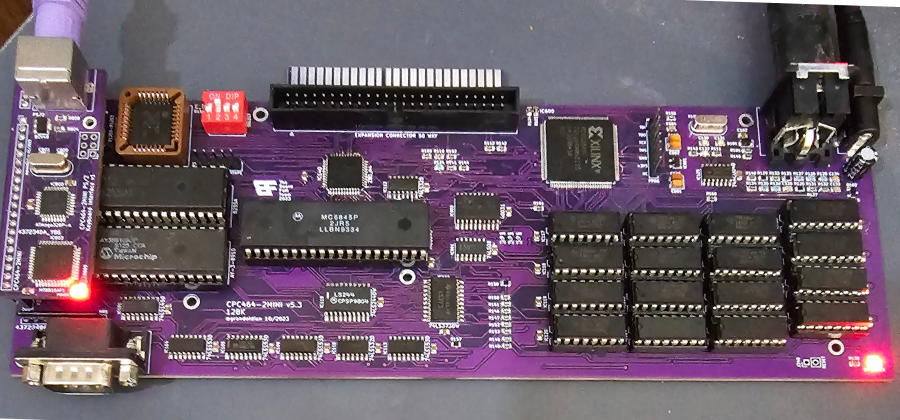

About the CPC464-2MINI PCB
CPC464-2MINI is an open source PCB design by Board-Folk, published on GitHub. It is a 2-layer board measuring 246.1 × 85 mm, with 156 components from 60 distinct parts.
Other key parts include the 74LS145D, 74LS153D, 8255A, MC6845 and 74LS132D. By type, the board carries 65 resistors, 38 capacitors, 35 ICs, 6 connectors, 2 diodes and 1 transistor.
From the project
Mini CPC464
Version 5 boards can't use an original Amstrad Gate array
AMSGateArray Xilinx based Gate Array. Needs skills. 128K RAM SMD 40031 GAL required for 128K operation QFP44 Z80 CPU AY-3-8910 Sound/IO Only PLCC32 ROM with switch selectable banking
Main components on the CPC464-2MINI
CPC464-2MINI bill of materials (BOM)
156 components, 60 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74LS145D | SOIC-16_3.9x9.9mm_P1.27mm | IC101 |
| 4 | 74LS153D | SOIC-16_3.9x9.9mm_P1.27mm | IC104, IC105, IC109, IC113 |
| 1 | 8255A | DIP-40_W15.24mm | IC107 |
| 1 | MC6845 | DIP-40_W15.24mm | IC108 |
| 1 | 74LS132D | SOIC-14_3.9x8.7mm_P1.27mm | IC110 |
| 1 | 74LS32D | SOIC-14_3.9x8.7mm_P1.27mm | IC112 |
| 1 | 74LS373DW | SOIC-20W_7.5x12.8mm_P1.27mm | IC114 |
| 1 | 74LS244DW | SOIC-20W_7.5x12.8mm_P1.27mm | IC115 |
| 16 | 4164 | DIP-16_W7.62mm | IC117, IC118, IC119, IC120, IC121, IC122, IC123, IC124 +8 |
| 1 | 74HCU04D | SOIC-14_3.9x8.7mm_P1.27mm | IC125 |
| 1 | Z80_44 | LQFP-44_10x10mm_P0.8mm | IC140 |
| 1 | AY-3-8910 | DIP-40_W15.24mm | IC141 |
| 1 | XC95288XL-10TQG144C | QFP50P2200X2200X160-144N | IC600 |
| 1 | TPS7A2036PDBVR | SOT-23-5 | IC601 |
| 1 | 40031 | SOIC-20W_7.5x12.8mm_P1.27mm | IC900 |
| 1 | 74LS08 | SOIC-14_3.9x8.7mm_P1.27mm | IC901 |
| 1 | 39SF040 | PLCC-32_THT-Socket | IC1250 |
| 1 | C1815 | SOT-23 | Q102 |
| 1 | 16MHz | Crystal_HC49-U_Vertical | X101 |
| 1 | VIDEO OUT | VIDEOJACK | J101 |
Show 40 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STEREO JACK | STEREO | J103 |
| 1 | DC INPUT | BarrelJack_Horizontal | J104 |
| 1 | KBPWR | PinHeader_1x03_P2.54mm_Vertical | J105 |
| 1 | RESET | PinHeader_1x02_P2.54mm_Vertical | J340 |
| 1 | PROG | PinHeader_1x07_P2.54mm_Vertical | J601 |
| 1 | KEYBOARD | PinHeader_1x20_P2.54mm_Vertical | CP2 |
| 1 | MINITAPE | PinHeader_1x05_P2.54mm_Vertical | CP3 |
| 1 | LK5 | PinHeader_1x02_P1.00mm_Vertical | LK5 |
| 1 | LK6 | PinHeader_1x02_P1.00mm_Vertical | LK6 |
| 1 | LK8 | PinHeader_1x02_P1.00mm_Vertical | LK8 |
| 1 | 10K | R_Array_SIP9 | NR1 |
| 1 | EXPANSION CONNECTOR 50 WAY | EXPANSION_IDC_ANONYMISED | PL1 |
| 1 | SELECT | DIP-8_W7.62mm_Socket | SW1250 |
| 1 | 1N4148 | D101 | D101 |
| 1 | 5V POWER | LED_1206_3216Metric | D102 |
| 1 | 100uF 25V | CP_Radial_D5.0mm_P2.50mm | C101 |
| 26 | 100nF | C_0805_2012Metric | C102, C104, C105, C106, C107, C108, C109, C110 +18 |
| 2 | 68pF | C_0805_2012Metric | C130, C131 |
| 1 | 47pF | C_0805_2012Metric | C132 |
| 3 | 220pF | C_0805_2012Metric | C133, C134, C135 |
| 4 | 10uF | CP_EIA-3216-18_Kemet-A | C600, C601, C602, C603 |
| 1 | 220nF | R_0805_2012Metric | C604 |
| 1 | 3M3 | R_0805_2012Metric | R101 |
| 10 | 2K2 | R_0805_2012Metric | R102, R103, R104, R105, R106, R107, R108, R109 +2 |
| 1 | 1M | R_0805_2012Metric | R111 |
| 11 | 10K | R_0805_2012Metric | R114, R115, R116, R117, R120, R133, R142, R1250 +3 |
| 2 | 22K | R_0805_2012Metric | R118, R119 |
| 6 | 1K | R_0805_2012Metric | R121, R122, R123, R132, R138, R140 |
| 1 | 1K5 | R_0805_2012Metric | R124 |
| 6 | 680R | R_0805_2012Metric | R125, R127, R129, R135, R157, R158 |
| 3 | 270R | R_0805_2012Metric | R126, R128, R130 |
| 1 | 3K3 | R_0805_2012Metric | R131 |
| 1 | 100R | R_0805_2012Metric | R134 |
| 2 | 220R | R_0805_2012Metric | R136, R137 |
| 9 | 82R | R_0805_2012Metric | R141, R146, R147, R148, R149, R150, R151, R152 +1 |
| 2 | 10M | R_0805_2012Metric | R143, R145 |
| 1 | 4K7 | R_0805_2012Metric | R144 |
| 1 | 56R | R_0805_2012Metric | R155 |
| 3 | 47R | R_0805_2012Metric | R156, R160, R161 |
| 4 | 0R | R_0805_2012Metric | R185, R186, R187, R188 |
CPC464-2MINI design files
The KiCad project lives in the Board-Folk/CPC464-2MINI repository on GitHub; these links point at the commit this page was built from.
CPC464-2MINI: common questions
How big is the CPC464-2MINI PCB?
The CPC464-2MINI measures 246.1 × 85 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the CPC464-2MINI?
156 components, from 60 distinct parts. The full bill of materials is listed on this page.
Where can I download the CPC464-2MINI design files?
From the Board-Folk/CPC464-2MINI repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the CPC464-2MINI design in my own project?
The repository has no license, so all rights stay with Board-Folk. Use it as a reference, and ask the author before reusing the design.
