CPC464-2MINIPS2

Board-Folk·CPC464-2MINI·Expansions/MINIPS2/Kicad/CPC464-2MINIPS2.kicad_pcb

CPC464-2MINIPS2 PCB layout, top view — open source AVR/Arduino board by Board-Folk

About the CPC464-2MINIPS2 PCB

CPC464-2MINIPS2 is an open source AVR/Arduino PCB design by Board-Folk, published on GitHub. It is a 2-layer board measuring 24.7 × 67.6 mm, with 17 components from 14 distinct parts.

Its main chip is the ATmega328P-A, from the AVR/Arduino family. Other key parts include the MT8816AF1. By type, the board carries 5 capacitors, 3 connectors, 3 resistors, 2 ICs, 1 transistor and 1 crystal.

From the project

Mini CPC464

Atmega328 / MT8816 Based PS/2 Adapter for the CPC464-2MINI

Arduino Code found in the Arduino Folder. This needs uploading to the ATMega328. Print Screen pulls down !BUS to reset the system * More notes to follow

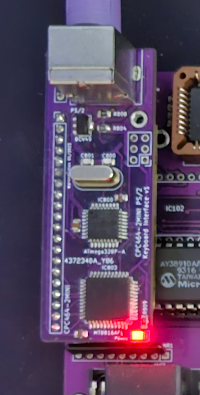

CPC464-2MINIPS2, from the project README
From the project README

Main components on the CPC464-2MINIPS2

ATmega328P-AMT8816AF1

CPC464-2MINIPS2 bill of materials (BOM)

17 components, 14 distinct parts.

QtyPartRefs
1
ATmega328P-A
IC800
1
MT8816AF1
IC803
1
BCV49
Q800
1
16MHz
Y800
1
CPCMINIPWR
J105
1
ISP6
J800
1
PS/2
J804
1
CPC464-2MINI
CP002
1
POWER
D810
2
20pF
C800, C801
3
100nF
C802, C806, C807
1
10K
R804
1
1K5
R808
1
1K
R809

CPC464-2MINIPS2 design files

The KiCad project lives in the Board-Folk/CPC464-2MINI repository on GitHub; these links point at the commit this page was built from.

CPC464-2MINIPS2: common questions

What microcontroller does the CPC464-2MINIPS2 use?

The CPC464-2MINIPS2 is built around the ATmega328P-A, from the AVR/Arduino family.

How big is the CPC464-2MINIPS2 PCB?

The CPC464-2MINIPS2 measures 24.7 × 67.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the CPC464-2MINIPS2?

17 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the CPC464-2MINIPS2 design files?

From the Board-Folk/CPC464-2MINI repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the CPC464-2MINIPS2 design in my own project?

The repository has no license, so all rights stay with Board-Folk. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the CPC464-2MINIPS2 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
