Electron-PS2Slim

Board-Folk·keys·Acorn Electron/PS2 Slim/Kicad/Electron-PS2Slim.kicad_pcb

Electron-PS2Slim PCB layout, top view — open source AVR/Arduino board by Board-Folk

About the Electron-PS2Slim PCB

Electron-PS2Slim is an open source AVR/Arduino PCB design by Board-Folk, published on GitHub. It is a 2-layer board measuring 81.1 × 33.6 mm, with 39 components from 17 distinct parts.

Its main chip is the ATmega328P-A, from the AVR/Arduino family. Other key parts include the MT8816AF1. By type, the board carries 17 diodes, 9 resistors, 5 capacitors, 2 ICs, 2 connectors and 1 transistor.

It belongs with the keyboards and retro computing designs in this gallery.

From the project

Board Folk Retro Keyboards and Adapters

A keyboard interface for the Acorn Electron based on C64keyboard by Robert VanHazinga using an ATMEGA328 and an MT8816 switch chip. This is a surface mount board designed to fit inside the Electron's case with the original keyboard still connected. The PS/2 socket sits a the hole of the original UHF modulator - requires the modulator to be removed for fitting.

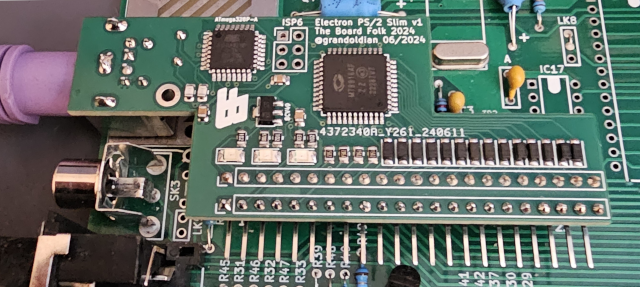

Electron-PS2Slim, from the project README
From the project README

Main components on the Electron-PS2Slim

ATmega328P-AMT8816AF1

Electron-PS2Slim bill of materials (BOM)

39 components, 17 distinct parts.

QtyPartRefs
1
ATmega328P-A
IC800
1
MT8816AF1
IC803
1
BCV49
Q1
1
16MHz
Y800
1
ISP6
J800
1
PS/2
J804
2
KEYBOARD
CP1, CP2
14
1N4148
D1, D2, D3, D4, D5, D6, D7, D8 +6
1
POWER
D15
1
BREAK
D16
1
CAPS
D17
2
20pF
C800, C801
3
100nF
C802, C806, C807
4
15K
R2, R3, R4, R5
1
470R
R16
3
1K
R17, R18, R19
1
10K
R804

Electron-PS2Slim design files

The KiCad project lives in the Board-Folk/keys repository on GitHub; these links point at the commit this page was built from.

Electron-PS2Slim: common questions

What microcontroller does the Electron-PS2Slim use?

The Electron-PS2Slim is built around the ATmega328P-A, from the AVR/Arduino family.

How big is the Electron-PS2Slim PCB?

The Electron-PS2Slim measures 81.1 × 33.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Electron-PS2Slim?

39 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the Electron-PS2Slim design files?

From the Board-Folk/keys repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Electron-PS2Slim design in my own project?

The repository has no license, so all rights stay with Board-Folk. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Electron-PS2Slim without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
