IR-sensor-01

bobc·Prusa-Mini-assembly·Prusa3d/MKxS-IR-sensor/rev.01/IR-sensor-01.kicad_pcb

IR-sensor-01 PCB layout, top view — open source board by bobc
Simulate this board

About the IR-sensor-01 PCB

IR-sensor-01 is an open source PCB design by bobc, published on GitHub under the MIT license. It is a 2-layer board measuring 20.5 × 8 mm, with 6 components from 5 distinct parts.

Other key parts include the EE-SX1103. By type, the board carries 3 resistors, 1 IC, 1 transistor and 1 connector.

It belongs with the sensors designs in this gallery.

From the project

A Prusa Mini 3D model assembly using OpenSCAD

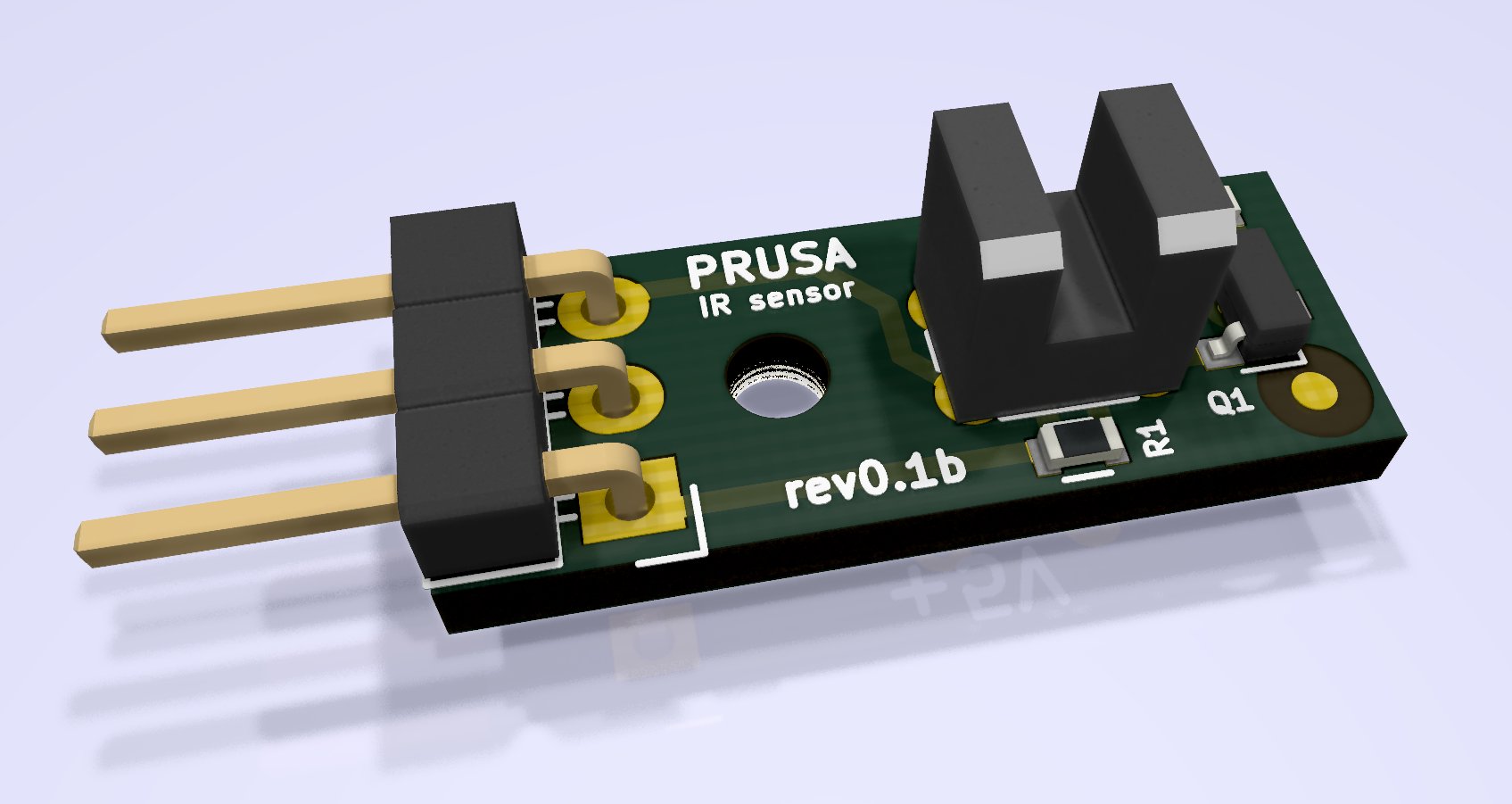

IR-sensor-01, from the project README
From the project README

Main components on the IR-sensor-01

EE-SX1103

IR-sensor-01 bill of materials (BOM)

6 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
EE-SX1103
U1
1
2N7002KT1G
Q1
1
CONN_01X03
P1
1
330R
R1
2
10k
R2, R3

IR-sensor-01 design files

The KiCad project lives in the bobc/Prusa-Mini-assembly repository on GitHub; these links point at the commit this page was built from.

IR-sensor-01: common questions

How big is the IR-sensor-01 PCB?

The IR-sensor-01 measures 20.5 × 8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the IR-sensor-01?

6 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the IR-sensor-01 design files?

From the bobc/Prusa-Mini-assembly repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the IR-sensor-01 design in my own project?

Yes, under the terms of its MIT license, which bobc chose for the repository.
