About the Hackpad PCB
Hackpad is an open source RP2040/RP2350 PCB design by BoredVoidAter, published on GitHub. It is a 2-layer board measuring 96.8 × 63.6 mm, with 21 components from 5 distinct parts.
Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 10 switches, 9 diodes and 1 IC.
It belongs with the keyboards and displays & leds designs in this gallery.
From the project

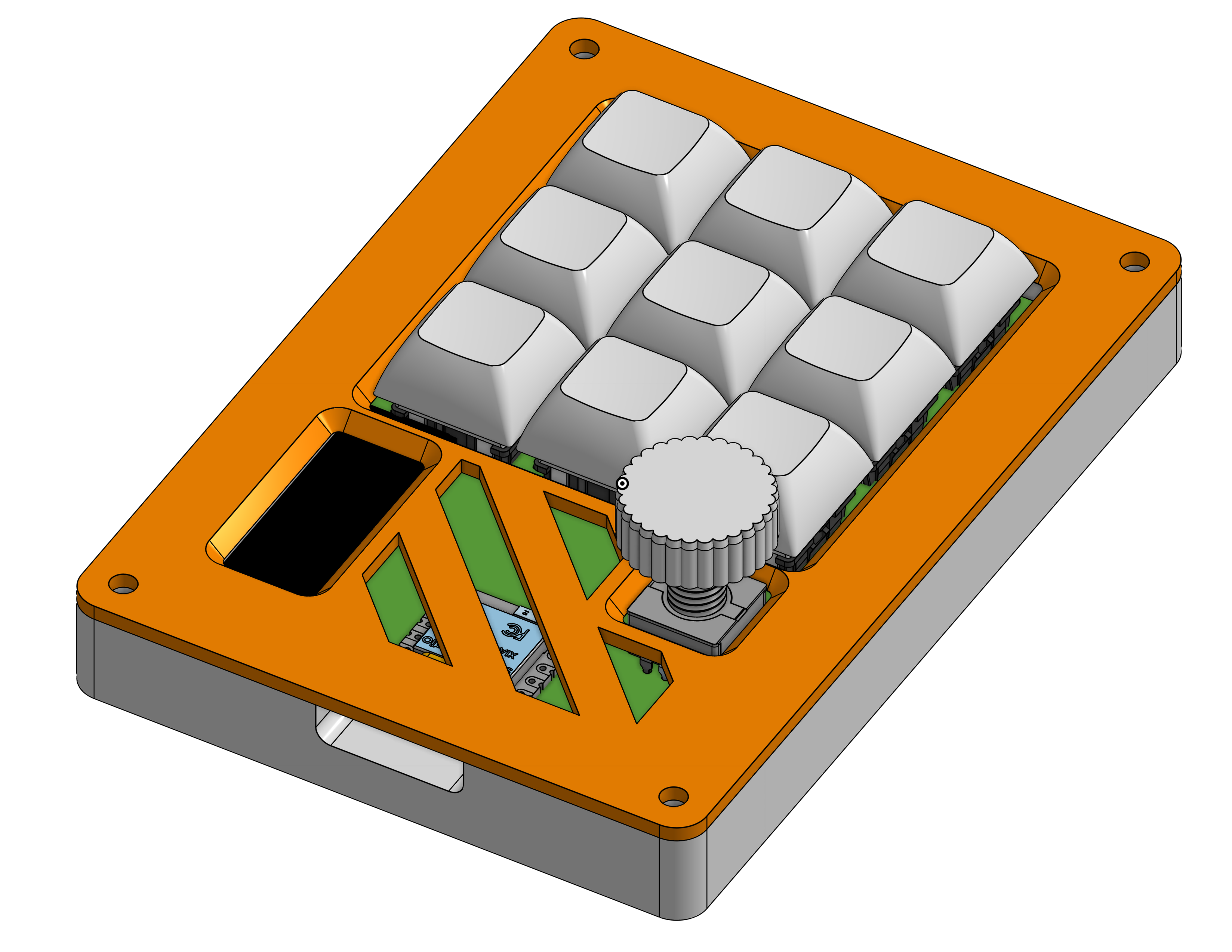

a custom keyboard designed for changing workspaces
This repository contains the design files for my Hackpad, designed to make workspace switchin on qtile easy.
- CAD/: Contains the 3D model files for the case (3MF format) - PCB/: Contains the KiCad design files for the PCB - Firmware/: Contains the source code for the firmware - Images/: Project screenshots

Main components on the Hackpad
Hackpad bill of materials (BOM)
21 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | XIAO-RP2040-DIP | XIAO-RP2040-DIP | U1 |
| 1 | Conn_01x04 | PinHeader_1x04_P2.54mm_Vertical | OLED1 |
| 1 | RotaryEncoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm | SW1 |
| 9 | SW_Push | SW_Cherry_MX_1.00u_PCB_3DModel | SW2, SW3, SW4, SW5, SW6, SW7, SW8, SW9 +1 |
| 9 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2, D3, D4, D5, D6, D7, D8 +1 |
Hackpad design files
The KiCad project lives in the BoredVoidAter/hackpad repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/hackpad.kicad_pcb
- SchematicPCB/hackpad.kicad_sch
Hackpad: common questions
What microcontroller does the Hackpad use?
The Hackpad is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.
How big is the Hackpad PCB?
The Hackpad measures 96.8 × 63.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Hackpad?
21 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the Hackpad design files?
From the BoredVoidAter/hackpad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Hackpad design in my own project?
The repository has no license, so all rights stay with BoredVoidAter. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Hackpad without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
