Nrf52832 devboard

brrastak·nrf52832_devboard

Nrf52832 devboard PCB layout, top view — open source Nordic nRF board by brrastak

About the Nrf52832 devboard PCB

Nrf52832 devboard is an open source Nordic nRF PCB design by brrastak, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 33 × 53.3 mm, with 28 components from 23 distinct parts.

Its main chip is the NRF52832-QFAA, from the Nordic nRF family. Other key parts include the AMS1117-3.3. By type, the board carries 12 capacitors, 4 resistors, 3 connectors, 3 inductors, 2 ICs and 1 crystal.

It belongs with the dev boards & breakouts and iot & wireless designs in this gallery.

From the project

The project main intension is the first experiment in designing bluetooth hardware. Design is not tested!

The project main intension is the first experiment in designing bluetooth hardware. Design is not tested!

The TI antenna SWRA117D is used (AN 043).

USB connector and voltage regulator circuitry are optional and only provide power.

It turns out that using P10 as an LED pin is not the best idea, as it is one of the NFC pins. To use it as a GPIO, you first need to disable the NFC pin protection. Using Rust and the nRF52832 PAC, this is done with the following code (the dedicated NVRAM register value should be set once and the new configuration is taken into account after MCU reset):

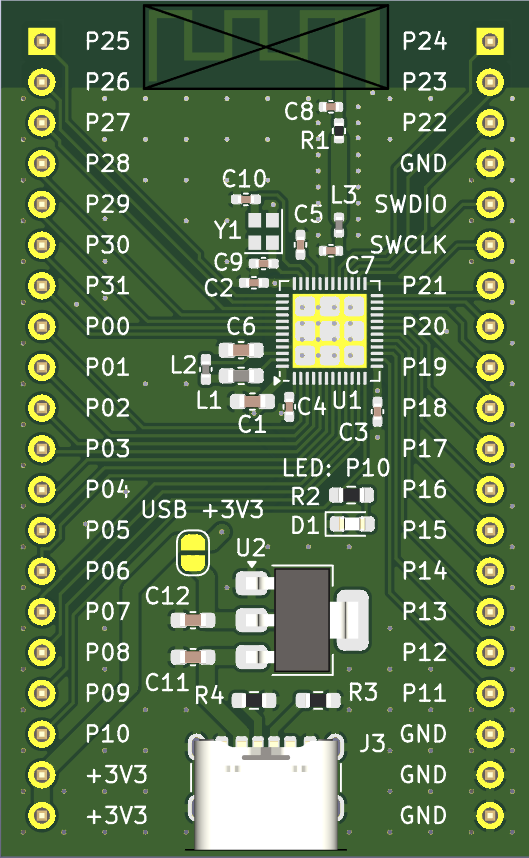

Nrf52832 devboard, from the project README
From the project README

Main components on the Nrf52832 devboard

NRF52832-QFAAAMS1117-3.3

Nrf52832 devboard bill of materials (BOM)

28 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
NRF52832-QFAA
nRF52832-QFAA
U1
1
AMS1117-3.3
U2
1
32MHz 8pF 40ppm
Y1
2
CONN_01X20_PIN
Conn_01x20_Pin
J1, J2
1
USB_C_RECEPTACLE_POWERONLY_6P
USB_C_Receptacle_PowerOnly_6P
J3
1
SWRA117D_2.4GHZ
SWRA117D_2.4GHz
AE1
1
stamp
G1
1
LED
D1
1
10uH 50mA
L1
1
15nH RF 10%
L2
1
3.9nH RF 5%
L3
1
4.7U
4.7u
C1
3
0.1U
0.1u
C2, C3, C4
1
100p NP0 5%
C5
1
1.0U
1.0u
C6
1
0.8p NP0 5%
C7
1
NA
C8
1
12P
12p
C9
1
12p 2%
C10
2
10U
10u
C11, C12
Show 3 more
QtyPartRefs
1
0
R1
1
10K
10k
R2
2
5.1K
5.1k
R3, R4

Nrf52832 devboard design files

The KiCad project lives in the brrastak/nrf52832_devboard repository on GitHub; these links point at the commit this page was built from.

Nrf52832 devboard: common questions

What microcontroller does the Nrf52832 devboard use?

The Nrf52832 devboard is built around the NRF52832-QFAA, from the Nordic nRF family.

How big is the Nrf52832 devboard PCB?

The Nrf52832 devboard measures 33 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Nrf52832 devboard?

28 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Nrf52832 devboard design files?

From the brrastak/nrf52832_devboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Nrf52832 devboard design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which brrastak chose for the repository.
