4201 multiples

butchwarns·4201_multiples·4201_multiples_kicad/4201_multiples.kicad_pcb

4201 multiples PCB layout, top view — open source board by butchwarns

About the 4201 multiples PCB

4201 multiples is an open source PCB design by butchwarns, published on GitHub. It is a 2-layer board measuring 20 × 128.5 mm, with 53 components from 17 distinct parts.

Other key parts include the TL074. By type, the board carries 19 connectors, 14 diodes, 12 resistors, 6 capacitors and 2 ICs.

It belongs with the audio designs in this gallery.

From the project

Dual buffered 1:3 multiples with bipolar signal indicator lights.

This is an open hardware project. The repository contains all design files as well as gerbers to order PCBs directly from a manufacturer like PCBWay.com, who kindly supplied prototyping boards for the development of this module.

Upload the .zip in the gerberfiles/` folder to your PCB manufacturer's website to order.

An interactive html BOM is available in the bom/ folder inside of the KiCad project. Just open it in a browser and tick off sourced/placed components. Also shows where on the board components should be placed.

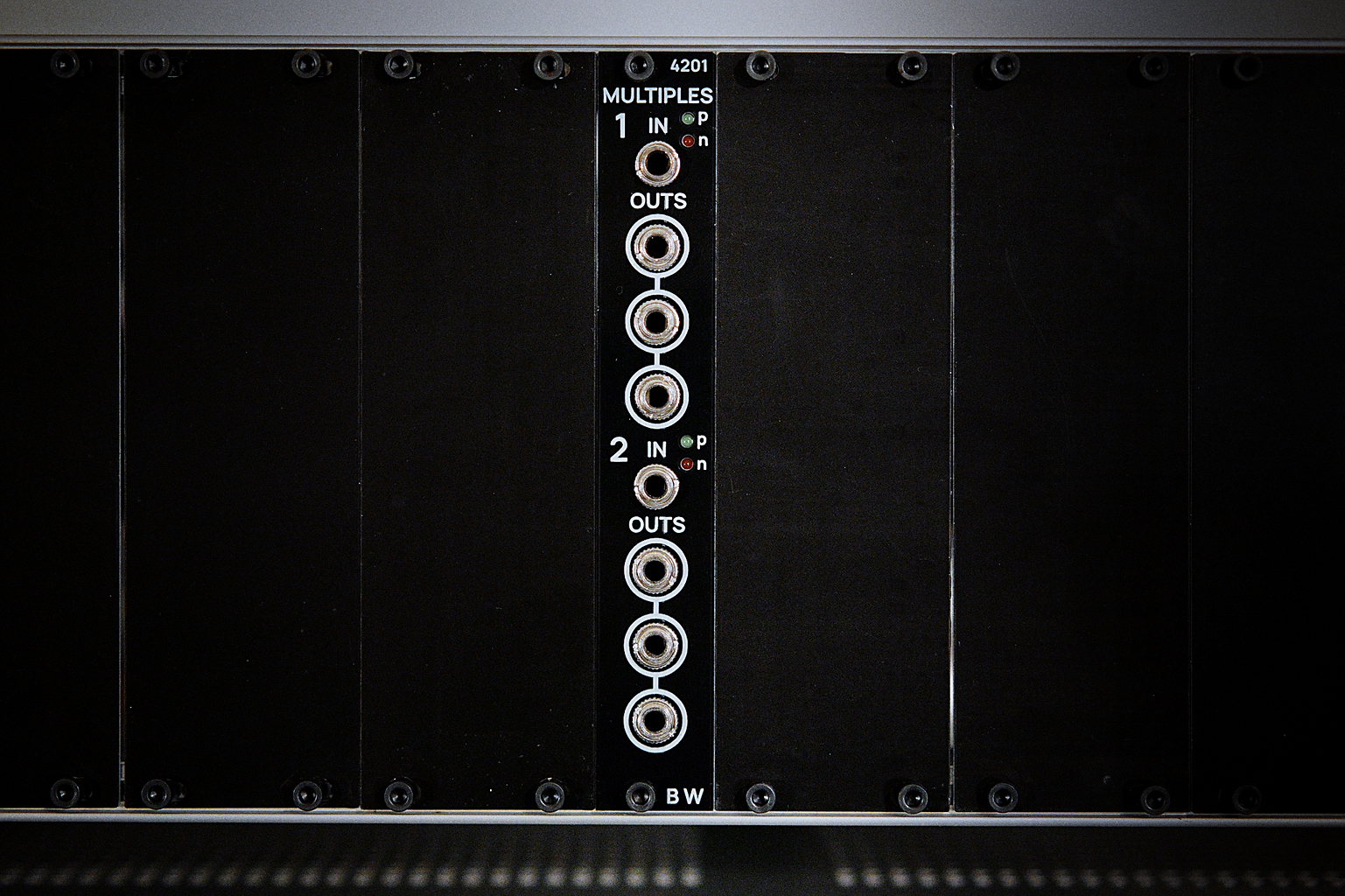

4201 multiples, from the project README
From the project README

Main components on the 4201 multiples

TL074

4201 multiples bill of materials (BOM)

53 components, 17 distinct parts.

QtyPartRefs
2
TL074
U1, U2
8
PJ392
J1, J2, J3, J4, J5, J6, J7, J8
2
Conn_01x05_Female
J9, J11
3
Conn_01x04_Female
J10, J12, J13
2
Conn_01x05_Male
J14, J16
3
Conn_01x04_Male
J15, J17, J18
1
Conn_02x05_Odd_Even
J19
2
1.8mm_red
D1, D3
2
1.8mm_green
D2, D4
8
1N4148
D5, D6, D7, D8, D9, D10, D11, D12
2
LL103A
D13, D14
2
47uF
C1, C2
4
100nF
C3, C4, C5, C6
2
220k
R1, R7
2
4k7
R2, R8
2
47k
R3, R9
6
100R
R4, R5, R6, R10, R11, R12

4201 multiples design files

The KiCad project lives in the butchwarns/4201_multiples repository on GitHub; these links point at the commit this page was built from.

4201 multiples: common questions

How big is the 4201 multiples PCB?

The 4201 multiples measures 20 × 128.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 4201 multiples?

53 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the 4201 multiples design files?

From the butchwarns/4201_multiples repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the 4201 multiples design in my own project?

The repository has no license, so all rights stay with butchwarns. Use it as a reference, and ask the author before reusing the design.
