Butterstick hardware PCB layout, top view — open source FPGA board by butterstick-fpga
Simulate this board

About the Butterstick hardware PCB

Butterstick hardware is an open source FPGA PCB design by butterstick-fpga, published on GitHub under the CERN-OHL-1.2 license. It is a 6-layer board measuring 80 × 49 mm, with 222 components from 60 distinct parts.

Its main chip is the ECP5U25, from the FPGA family. Other key parts include the TLV725P, DAC081C081CIMK, IS66WVH16M8ALL, S25FL127S and TPS73101DBV. By type, the board carries 100 capacitors, 76 resistors, 22 ICs, 9 diodes, 7 connectors and 6 inductors.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Basic ECP5 based GigE to SYZYGY interface.

A compact Lattice ECP5 based development board with breakouts for lots of high-speed I/O and serdes.

With onboard DDR3, High Speed USB and Ethernet.

Previous Revisions: ButterStick r0.2 ButterStick r0.1

ECP5 25F/45F/85F (BGA381 package) USB 2.0 High Speed (480 Mbit/s) Gigabit Ethernet upto 8Gbit DDR3L RAM (dual rank) 128Mbit QSPI FLASH Memory (Bitstream + User storage) MicroSD socket (4 bit SD interface) Onboard oscillators: 30 MHz (ECP5's PLLs can create 60MHz,125MHz,etc.) 25 MHz (RGMII PHY) 0.1" pitch JTAG connector 7x User RGB LEDs 2x User Buttons 2x Standard SYZYGY compatible…

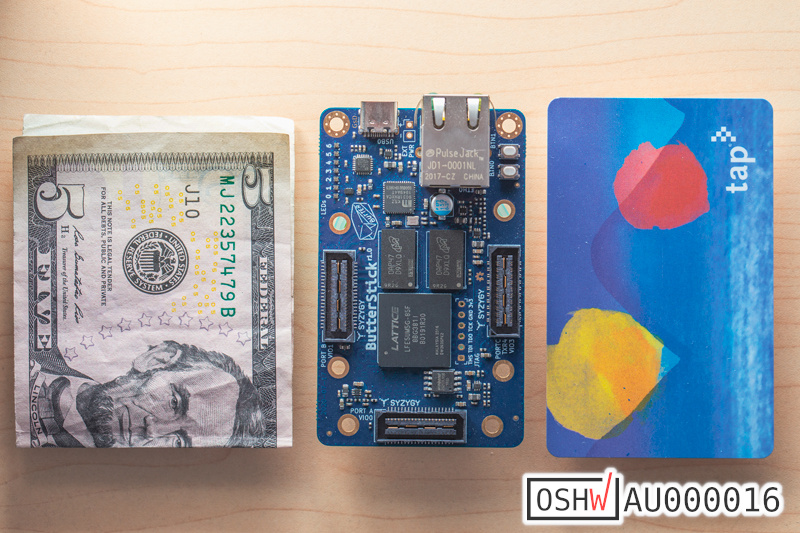

Butterstick hardware, from the project README
From the project README

Main components on the Butterstick hardware

TLV725PDAC081C081CIMKECP5U25IS66WVH16M8ALLS25FL127STPS73101DBVTLV718PXCL206B123CR-GKSZ9031SN74LVC1T45TPS542951ATmega328PB-MUPUSB3FR6LTC4367AON7804
