About the Cphp82001 PCB

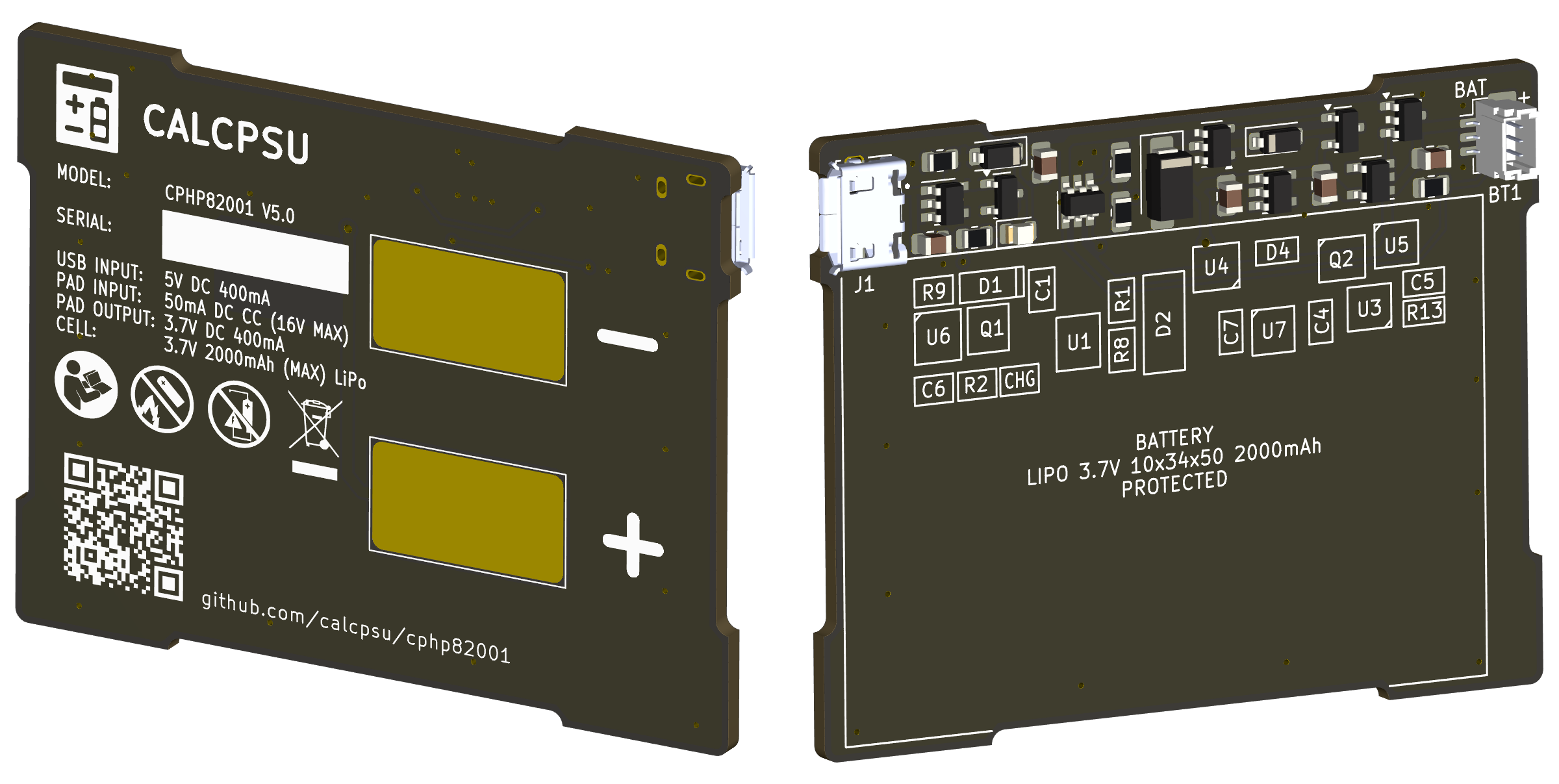

Cphp82001 is an open source PCB design by calcpsu, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 56 × 44 mm, with 26 components from 24 distinct parts.
Other key parts include the BQ21040, MAX40203AUK, APX810-44SA, APX809S-31SA and NCP360SNT. By type, the board carries 6 ICs, 5 capacitors, 5 resistors, 4 diodes, 3 connectors and 2 transistors.
It belongs with the power & battery designs in this gallery.
From the project
CalcPack replacement for HP 82001, suits HP35/45/55/65/67 calculators
A Li-Po battery replacement design for HP35/HP45/HP55/HP65/HP67 calculators. The original batteries had ~ 500mAh capacity, while modern Ni-MH replacements are typically ~1500mAh.
Li-Po has the advantage of far reduced self-discharge in comparison to Ni-MH, which is an advantage for an intermittently-used device. Even with similar mAh capacity, we can expect longer battery life.

Main components on the Cphp82001
Cphp82001 bill of materials (BOM)
26 components, 24 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | BQ21040 | SOT-23-6_TI_DBV6 | U1 |
| 1 | MAX40203AUK | SOT-23-5_TI_DBV5 | U3 |
| 1 | APX810-44SA | SOT-23-3 | U4 |
| 1 | APX809S-31SA | SOT-23-3 | U5 |
| 1 | NCP360SNT | SOT-23-5_TI_DBV5 | U6 |
| 1 | NCP380HSN05 | SOT-23-5_TI_DBV5 | U7 |
| 1 | 2N7002 | SOT-23 | Q1 |
| 1 | AO3413 | SOT-23 | Q2 |
| 1 | USB | AMPHENOL_10118194-0001LF | J1 |
| 1 | PAD+ | PAD_8x15 | J2 |
| 1 | PAD- | PAD_8x15 | J3 |
| 1 | Batt | JST_SH_BM03B-SRSS-TB_1x03-1MP_P1.00mm_Vertical_13PADS | BT1 |
| 1 | PMEG40T10ERX | D_SOD-123 | D1 |
| 1 | 5V6/3W | D_SMA | D2 |
| 1 | RED | LED_0805_2012Metric | D3 |
| 1 | 1N4148W | D_SOD-123 | D4 |
| 3 | 1u | C_0805_2012Metric | C1, C4, C6 |
| 1 | 4U7 4u7 | C_0805_2012Metric | C5 |
| 1 | 10U 10u | C_0805_2012Metric | C7 |
| 1 | 1K8 1k8 | R_0805_2012Metric | R1 |
Show 4 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 3k | R_0805_2012Metric | R2 |
| 1 | 9K1 9k1 | R_0805_2012Metric | R8 |
| 1 | 33K 33k | R_0805_2012Metric | R9 |
| 1 | 10K 10k | R_0805_2012Metric | R13 |
Cphp82001 design files
The KiCad project lives in the calcpsu/cphp82001 repository on GitHub; these links point at the commit this page was built from.
Cphp82001: common questions
How big is the Cphp82001 PCB?
The Cphp82001 measures 56 × 44 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Cphp82001?
26 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Cphp82001 design files?
From the calcpsu/cphp82001 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Cphp82001 design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
