Forti rev 2
About the Forti rev 2 PCB
Forti rev 2 is an open source STM32 PCB design by calvin-mcd, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 245.7 × 82.9 mm, with 86 components from 15 distinct parts.
Its main chip is the STM32F072C8TX, from the STM32 family. Other key parts include the USBLC6-2SC6, XC6206PXXXMR-REGULATOR_LINEAR and 74AHCT1G125. By type, the board carries 47 diodes, 18 LEDs, 10 capacitors, 4 ICs, 3 resistors and 1 connector.
It belongs with the keyboards designs in this gallery.
From the project

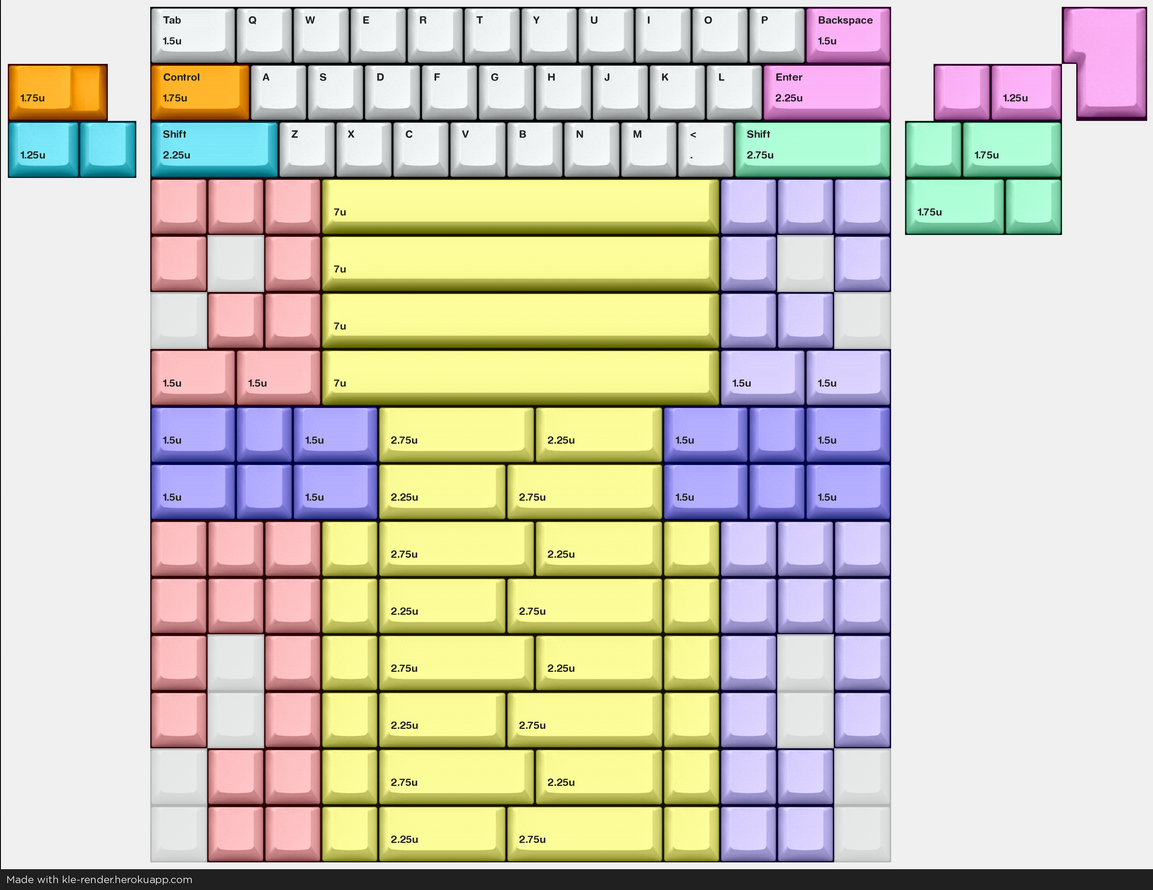

13u pcb for Førti
The F�rti pcb (40 in Norwegian) is a 13u 40% pcb with full basekit support for the upcoming F�rti keyboard case created and designed by xonuss and xezioh that is based on Geon's F1-8x. The pcb takes its layout and design cues from the oxymoron, bully and ttocyobitna amongst others. It's a stm32 based pcb for low cost, good performance.
- [X] order & test pcb - [X] create firmware - [X] order & test case - [ ] revise mx pcb - [ ] create HS & EC pcbs (work-in-progress)
Main components on the Forti rev 2
Forti rev 2 bill of materials (BOM)
86 components, 15 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USBLC6-2SC6 | SOT-23-6 | U1 |
| 1 | STM32F072C8TX STM32F072C8Tx | LQFP-48_7x7mm_P0.5mm | U2 |
| 1 | XC6206PXXXMR-REGULATOR_LINEAR XC6206PxxxMR-Regulator_Linear | SOT-23 | U3 |
| 1 | 74AHCT1G125 | TSOT-23-5 | U4 |
| 1 | USB_C_RECEPTACLE_USB2.0 USB_C_Receptacle_USB2.0 | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J1 |
| 1 | SMF9.0CA | D_SOD-123 | D_PWR1 |
| 1 | 500MA 500mA | Fuse_1206_3216Metric | F1 |
| 1 | SKQGABE010 | SW_SPST_SKQG_WithoutStem | SW1 |
| 18 | WS2812_2020 | LED_WS2812_2020 | LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +10 |
| 47 | C64898 D_Small | D_SOD-123F | D1, D2, D3, D4, D5, D6, D7, D8 +39 |
| 2 | 1UF 1uF | C_0603_1608Metric | C1, C2 |
| 1 | 10UF 10uF | C_0603_1608Metric | C3 |
| 7 | 100NF 100nF | C_0603_1608Metric | C4, C5, C6, C7, C8, C9, C10 |
| 2 | 5K1 5k1 | R_0603_1608Metric | R1, R2 |
| 1 | 10K 10k | R_0603_1608Metric | R3 |
Forti rev 2 design files
The KiCad project lives in the calvin-mcd/Forti repository on GitHub; these links point at the commit this page was built from.
Forti rev 2: common questions
What microcontroller does the Forti rev 2 use?
The Forti rev 2 is built around the STM32F072C8TX, from the STM32 family.
How big is the Forti rev 2 PCB?
The Forti rev 2 measures 245.7 × 82.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Forti rev 2?
86 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Forti rev 2 design files?
From the calvin-mcd/Forti repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Forti rev 2 design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
Can I test firmware for the Forti rev 2 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
