Toastershield
About the Toastershield PCB
Toastershield is an open source PCB design by Camuise, published on GitHub. It is a 2-layer board measuring 68.6 × 53.3 mm, with 35 components from 22 distinct parts.
Other key parts include the NE555P and 74HC14. By type, the board carries 5 connectors, 5 LEDs, 4 switches, 3 capacitors and 2 ICs.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
Open-source Breadboard Companion clone

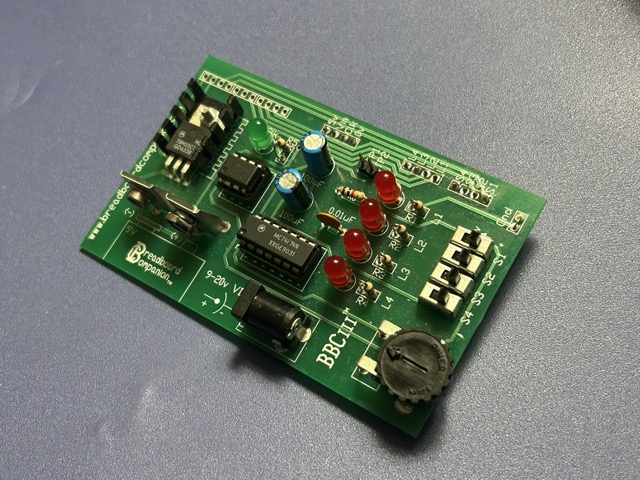

My attempt at making an open-source Breadboard Companion-like dev board.
Main components on the Toastershield
Toastershield bill of materials (BOM)
35 components, 22 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NE555P | DIP-8_W7.62mm_Socket | U2 |
| 1 | 74HC14 | DIP-14_W7.62mm_Socket | U3 |
| 1 | Power | PinHeader_1x08_P2.54mm_Vertical | J1 |
| 1 | Digital/PWM | PinHeader_1x10_P2.54mm_Vertical | J2 |
| 1 | Analog | PinHeader_1x06_P2.54mm_Vertical | J3 |
| 1 | Digital/PWM | PinHeader_1x08_P2.54mm_Vertical | J4 |
| 1 | PinHeader_2x03_P2.54mm_Vertical | PinHeader_2x03_P2.54mm_Vertical | J5 |
| 1 | J5B | PinHeader_1x01_P2.54mm_Vertical | CLK_HEAD1 |
| 1 | J5A | PinSocket_1x01_P2.54mm_Vertical | CLK_SOCK1 |
| 2 | PinSocket_1x08_P2.54mm_Vertical | PinSocket_1x08_P2.54mm_Vertical | JB1, JB4 |
| 1 | PinSocket_1x10_P2.54mm_Vertical | PinSocket_1x10_P2.54mm_Vertical | JB2 |
| 1 | PinSocket_1x06_P2.54mm_Vertical | PinSocket_1x06_P2.54mm_Vertical | JB3 |
| 1 | PinHeader_2x03_P2.54mm_Vertical | PinHeader_2x03_P2.54mm_Vertical | JB5 |
| 1 | 10k | Potentiometer_Piher_PT-15-V02_Vertical | RV1 |
| 5 | 1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical | R_CLK1, R_LED1, R_LED2, R_LED3, R_LED4 |
| 2 | 5.1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical | R_PULLUP1, R_PULLUP2 |
| 1 | 1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P5.08mm_Vertical | R_RV1 |
| 4 | SW_SPDT | SW_Slide_SPDT_Straight_CK_OS102011MS2Q | SW1, SW2, SW3, SW4 |
| 4 | Red | LED_D3.0mm | LED1, LED2, LED3, LED4 |
| 1 | Green | LED_D3.0mm | LED_CLK1 |
Show 2 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 0.01uF | C_Disc_D5.0mm_W2.5mm_P5.00mm | C1 |
| 2 | 100uF | CP_Radial_D5.0mm_P2.00mm | C2, C3 |
Toastershield design files
The KiCad project lives in the Camuise/toasterboard repository on GitHub; these links point at the commit this page was built from.
- Layoutshield/toastershield.kicad_pcb
- Schematicshield/toastershield.kicad_sch
Toastershield: common questions
How big is the Toastershield PCB?
The Toastershield measures 68.6 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Toastershield?
35 components, from 22 distinct parts. The full bill of materials is listed on this page.
Where can I download the Toastershield design files?
From the Camuise/toasterboard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Toastershield design in my own project?
The repository has no license, so all rights stay with Camuise. Use it as a reference, and ask the author before reusing the design.
