DRV8830 FeatherWing
About the DRV8830 FeatherWing PCB
DRV8830 FeatherWing is an open source PCB design by CedarGroveStudios, published on GitHub under the MIT license. It is a 2-layer board measuring 50.8 × 22.9 mm, with 25 components from 17 distinct parts.
Other key parts include the INA260 and DRV8830. By type, the board carries 9 capacitors, 7 resistors, 3 connectors, 2 ICs, 2 diodes and 1 module.
It belongs with the robotics & motion and dev boards & breakouts designs in this gallery.
From the project

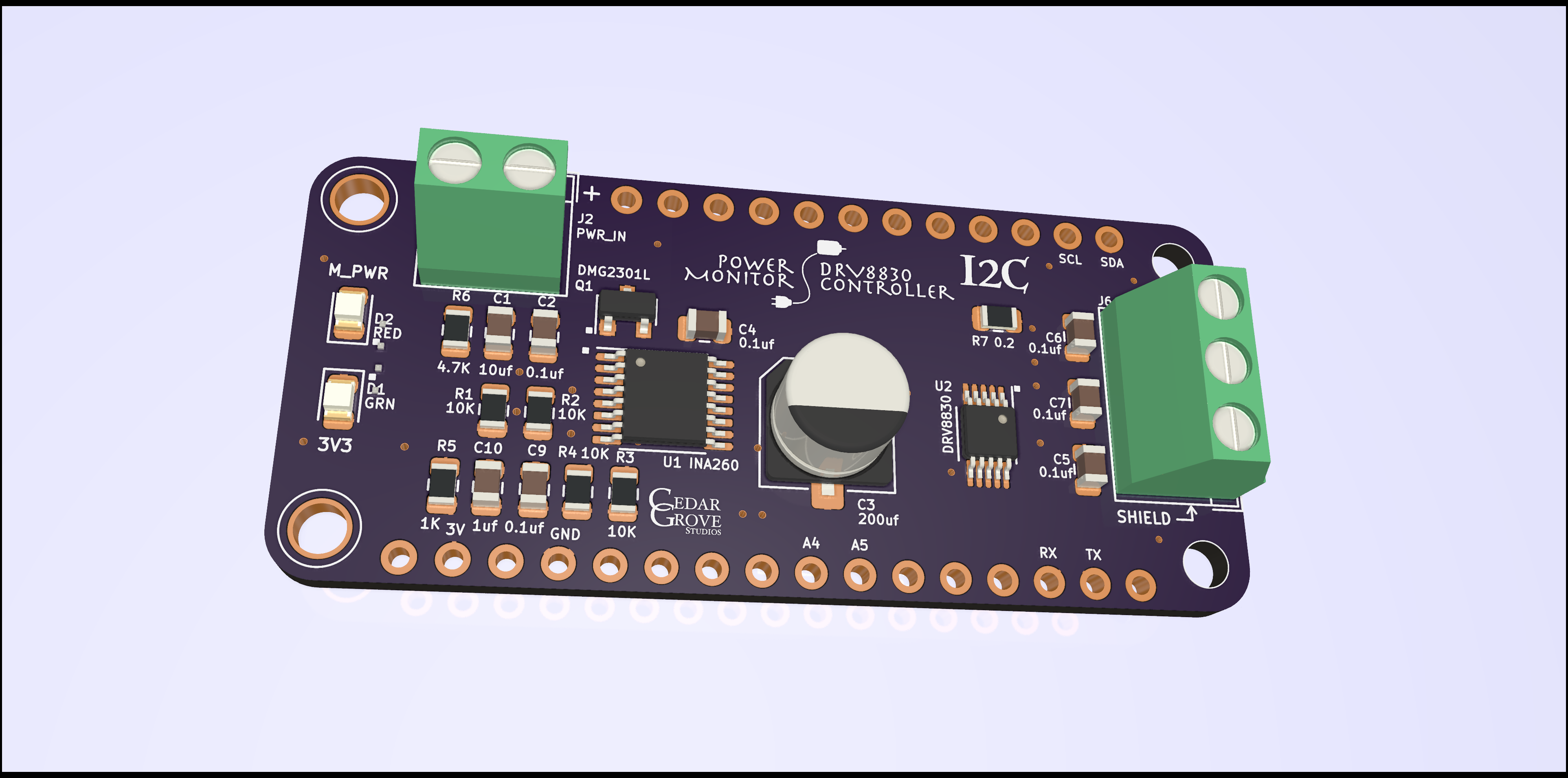

A custom motor controller and power monitor FeatherWing
DRV8830 CircuitPython Driver Class Description
Main components on the DRV8830 FeatherWing
DRV8830 FeatherWing bill of materials (BOM)
25 components, 17 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | INA260 | TSSOP-16_4.4x5mm_P0.65mm | U1 |
| 1 | DRV8830 | MSOP-10-1EP_3x3mm_P0.5mm_EP1.68x1.88mm_ThermalVias | U2 |
| 1 | Feather_M4_Express | Adafruit_Feather_M4_Express_bare | M1 |
| 1 | DMG2301L | SOT-23 | Q1 |
| 1 | SENSOR_UART-QT | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | J1 |
| 1 | PWR_IN | TerminalBlock_4Ucon_1x02_P3.50mm_Horizontal | J2 |
| 1 | MOTOR_OUT | TerminalBlock_4Ucon_1x03_P3.50mm_Horizontal | J6 |
| 1 | GRN | LED_0805_2012Metric | D1 |
| 1 | RED | LED_0805_2012Metric | D2 |
| 1 | 10uf | C_0805_2012Metric | C1 |
| 6 | 0.1uf | C_0805_2012Metric | C2, C4, C5, C6, C7, C9 |
| 1 | 200uf | CP_Elec_6.6x6.6 | C3 |
| 1 | 1uf | C_0805_2012Metric | C10 |
| 4 | 10K | R_0805_2012Metric | R1, R2, R3, R4 |
| 1 | 1K | R_0805_2012Metric | R5 |
| 1 | 4.7K | R_0805_2012Metric | R6 |
| 1 | 0.2 | R_0805_2012Metric | R7 |
DRV8830 FeatherWing design files
The KiCad project lives in the CedarGroveStudios/DRV8830_FeatherWing_PCB repository on GitHub; these links point at the commit this page was built from.
DRV8830 FeatherWing: common questions
How big is the DRV8830 FeatherWing PCB?
The DRV8830 FeatherWing measures 50.8 × 22.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the DRV8830 FeatherWing?
25 components, from 17 distinct parts. The full bill of materials is listed on this page.
Where can I download the DRV8830 FeatherWing design files?
From the CedarGroveStudios/DRV8830_FeatherWing_PCB repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the DRV8830 FeatherWing design in my own project?
Yes, under the terms of its MIT license, which CedarGroveStudios chose for the repository.
