Icepi sbc

cheyao·icepi-sbc·hardware/cm0.kicad_pcb

Icepi sbc PCB layout, top view — open source board by cheyao
Simulate this board

About the Icepi sbc PCB

Icepi sbc is an open source PCB design by cheyao, published on GitHub under the SHL-2.1 license. It is a 4-layer board measuring 85 × 56 mm, with 265 components from 52 distinct parts.

Other key parts include the H3, H5TQ4G63EFR, SY8088, SY8089A and SY8113. By type, the board carries 136 capacitors, 75 resistors, 24 ICs, 9 connectors, 7 inductors and 5 transistors.

It belongs with the iot & wireless designs in this gallery.

From the project

A low-cost H3 single-board computer capable of running Linux with DDR3

A low-cost single-board computer for the H3 CPU: A cheap yet powerful Linux device that you can take anywhere.

If there's a lot of people interested, there's a chance that I'll try to sell this at a relatively low price :P

- H3 Quad-Core ARM Cortex-A7 @ 1.296GHz CPU - Mali400 MP2 OpenGL ES 2.0 GPU - 512MiB of DDR3 RAM, stable at 696MHz (Upgradable to 1GiB) - Ethernet PHY, WiFi & Bluetooth - GPDI video out - USB connectors: - 2x USB-A - 2x USB-C (One OTG port) - 1x USB-C 100W PD power port - 3.5mm audio jack - uSD card slot - eMMC 5.1 storage

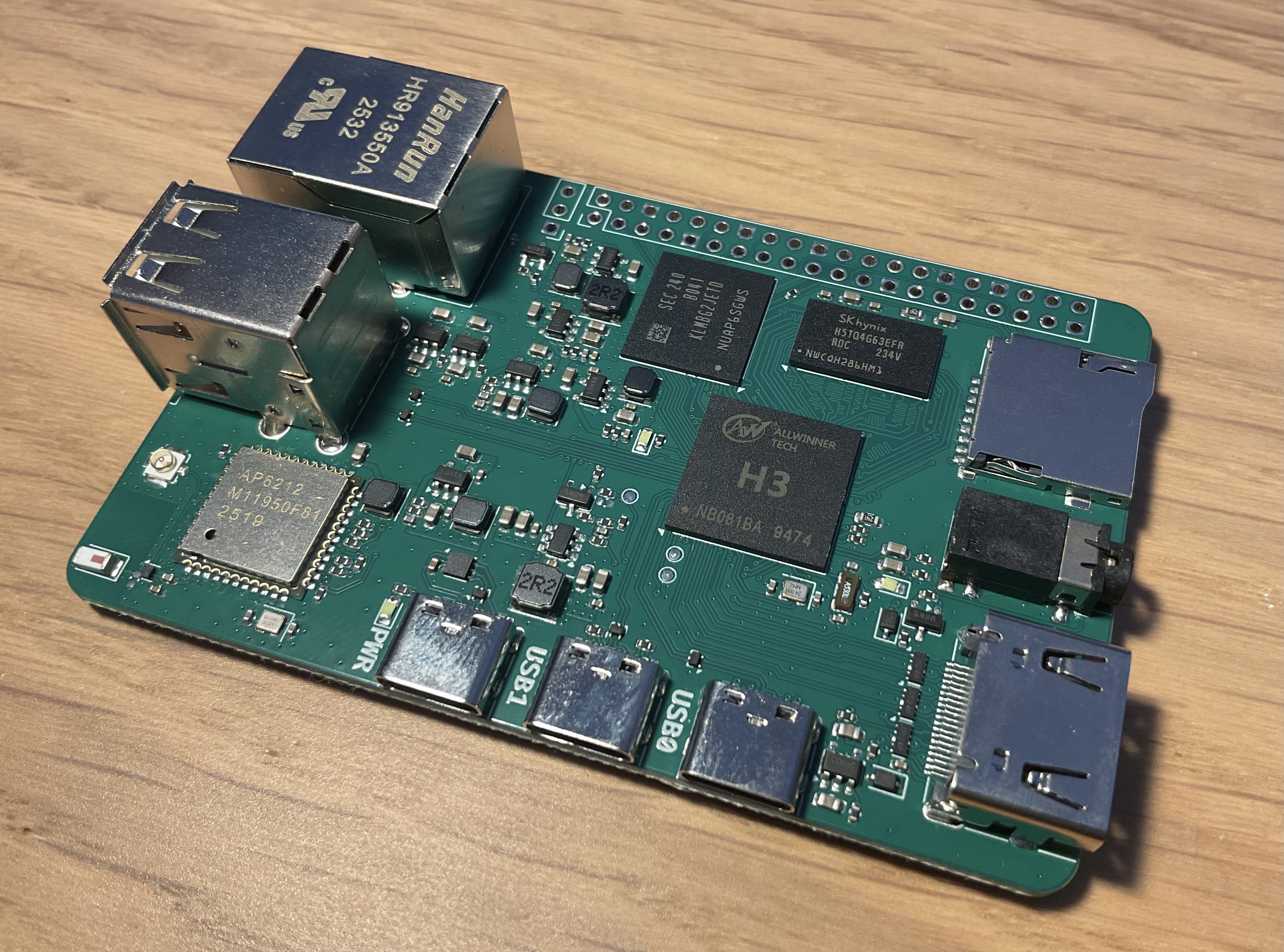

Icepi sbc, from the project README
From the project README

Main components on the Icepi sbc

H3H5TQ4G63EFRSY8088SY8089ASY8113SY6280AACTPD2EUSB30HUSB237UCL0524PEMMC5.1_BGA153AW13412HDNRAP6212

Icepi sbc bill of materials (BOM)

265 components, 52 distinct parts.

QtyPartRefs
1
H3
U1
1
H5TQ4G63EFR
U2
4
SY8088
U3, U4, U5, U8
1
SY8089A
U6
1
SY8113
U7
4
SY6280AAC
U9, U10, U11, U12
5
TPD2EUSB30
U13, U14, U15, U16, U18
1
HUSB237
U17
3
UCL0524P
U19, U20, U21
1
EMMC5.1_BGA153
U22
1
AW13412HDNR
U23
1
AP6212
U24
1
MMBT3904
Q1
3
BSN20
Q2, Q4, Q5
1
AO3415A
Q3
1
32kHz
Y1
1
24MHz
Y2
1
26MHz
Y3
1
USB_A_Stacked
J1
3
USB_C_Receptacle_USB2.0_14P
J2, J3, J4
Show 32 more
QtyPartRefs
1
GPDI_A
J5
1
Micro_SD_Card_Det1
J6
1
ANT
J7
1
RJ45_Hanrun_HR913550A_Horizontal
J8
1
AudioJack_PJ-342
J11
1
2450AT18A100E
AE1
2
1N5819WS
D1, D2
3
LED
D3, D4, D5
5
2.2uH
L1, L2, L3, L6, L7
2
2.2uH
L4, L5
66
100nF
C1, C2, C3, C4, C5, C6, C7, C9 +58
6
4.7uF
C8, C29, C31, C35, C116, C119
15
1uF
C10, C13, C14, C18, C19, C22, C30, C36 +7
27
10uF
C12, C17, C25, C27, C45, C51, C67, C70 +19
11
15pF
C33, C40, C65, C72, C77, C83, C94, C97 +3
2
18pF
C34, C41
7
22uF
C63, C80, C81, C86, C88, C93, C99
2
1nF
C126, C129
1
6.04k
R1
10
56k
R2, R3, R4, R13, R38, R39, R43, R44 +2
11
100k
R5, R20, R23, R24, R26, R27, R34, R36 +3
4
240
R6, R17, R65, R66
3
0
R7, R10, R33
15
10k
R8, R11, R12, R18, R19, R28, R29, R31 +7
1
220k
R9
1
10M
R14
8
2k
R15, R16, R32, R48, R49, R67, R68, R69
3
22k
R21, R25, R35
1
150k
R22
9
30k
R30, R37, R46, R47, R55, R56, R57, R58 +1
7
33
R53, R54, R60, R71, R72, R73, R74
1
100
R75

Icepi sbc design files

The KiCad project lives in the cheyao/icepi-sbc repository on GitHub; these links point at the commit this page was built from.

Icepi sbc: common questions

How big is the Icepi sbc PCB?

The Icepi sbc measures 85 × 56 mm, has 4 copper layers and is 1.59468 mm thick.

How many components are on the Icepi sbc?

265 components, from 52 distinct parts. The full bill of materials is listed on this page.

Where can I download the Icepi sbc design files?

From the cheyao/icepi-sbc repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Icepi sbc design in my own project?

It is published under SHL-2.1, which limits how it may be reused; read the license before building on it.
