HB-UNI-SEN-POOL 2023 05.1
About the HB-UNI-SEN-POOL 2023 05.1 PCB
HB-UNI-SEN-POOL 2023 05.1 is an open source AVR/Arduino PCB design by chianti2000, published on GitHub. It is a 2-layer board measuring 117 × 95 mm, with 69 components from 53 distinct parts.
Its main chip is the ATmega1284P-A, from the AVR/Arduino family. Other key parts include the ORP_Meter, PH_Meter, AMS1117-3.3, PCF8583PN and CC1101. By type, the board carries 24 connectors, 13 capacitors, 13 resistors, 6 ICs, 3 diodes and 2 transistors.
It belongs with the iot & wireless designs in this gallery.
From the project
Various SmartHome projects and PCB's
Dies ist eine Sammplung meiner Platinen für den Bereich HomeMatic, AskSinPP und usw.

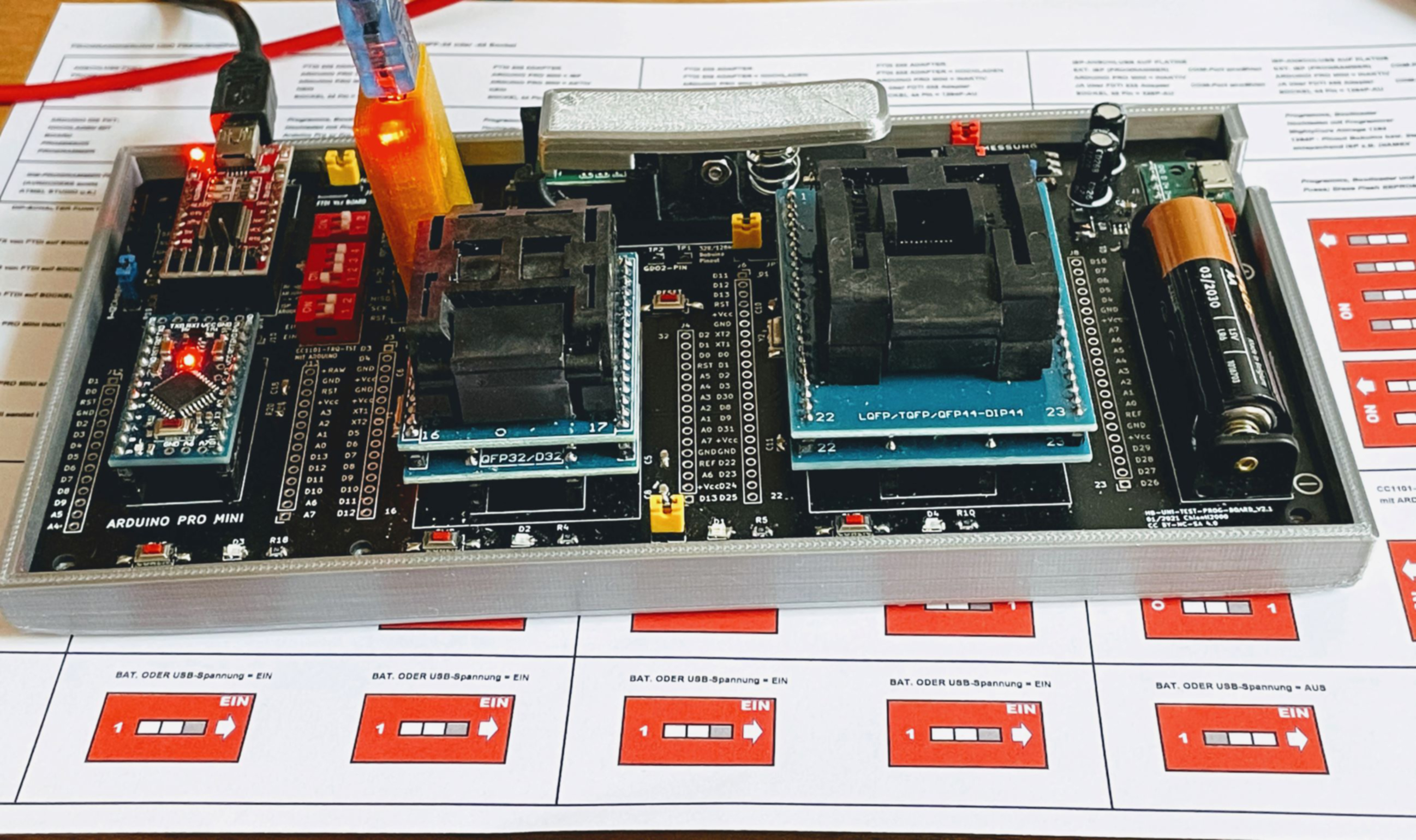

Eine Platine zum Programmieren des ARDUINO PRO MINI und der AVR 328P-AU /1284P-AU sowie für den Frequenztest / Frequenzpairing des Arduino / AVR mit dem CC1101.
Main components on the HB-UNI-SEN-POOL 2023 05.1
HB-UNI-SEN-POOL 2023 05.1 bill of materials (BOM)
69 components, 53 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ORP_Meter | ORP_Meter | U1 |
| 1 | PH_Meter | PH_Meter | U2 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U5 |
| 1 | PCF8583PN | DIP802W53P254L950H420Q8N | U7 |
| 1 | ATmega1284P-A | TQFP-44_10x10mm_P0.8mm | U8 |
| 1 | CC1101 | CC1101 | U9 |
| 1 | IRLML5203 | SOT-23 | Q1 |
| 1 | BC547 | TO-92_Inline | Q2 |
| 1 | Resonator | Resonator_SMD_muRata_CSTCC-3pin_7.2x3.0mm_HandSoldering | Y1 |
| 1 | NTC1 | TerminalBlock_Phoenix_MPT-0,5-3-2.54_1x03_P2.54mm_Horizontal | J1 |
| 1 | NTC2 | TerminalBlock_Phoenix_MPT-0,5-3-2.54_1x03_P2.54mm_Horizontal | J2 |
| 1 | Drucksens. | TerminalBlock_Phoenix_MPT-0,5-3-2.54_1x03_P2.54mm_Horizontal | J3 |
| 1 | Flow-Sens | TerminalBlock_Phoenix_MPT-0,5-3-2.54_1x03_P2.54mm_Horizontal | J4 |
| 1 | Schliesser 1 | TerminalBlock_Phoenix_MPT-0,5-2-2.54_1x02_P2.54mm_Horizontal | J5 |
| 1 | Schliesser 2 | TerminalBlock_Phoenix_MPT-0,5-2-2.54_1x02_P2.54mm_Horizontal | J6 |
| 1 | 20x4 Displ. | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | J7 |
| 1 | FTDI | PinSocket_1x06_P2.54mm_Vertical | J8 |
| 1 | ISP | PinHeader_2x03_P2.54mm_Vertical | J9 |
| 1 | Schalterausg. | TerminalBlock_Phoenix_MPT-0,5-6-2.54_1x06_P2.54mm_Horizontal | J10 |
| 1 | Tastereing. | TerminalBlock_Phoenix_MPT-0,5-6-2.54_1x06_P2.54mm_Horizontal | J11 |
Show 33 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ORP-Eing. | JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical | J12 |
| 1 | PH-Eing. | JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical | J13 |
| 1 | USB_B_Micro | Micro-USB-auf-DIP-Adapter | J14 |
| 1 | Extern | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | J15 |
| 1 | ORP_3.3V | PinHeader_1x02_P2.54mm_Vertical | J16 |
| 1 | PH_3.3V | PinHeader_1x02_P2.54mm_Vertical | J17 |
| 1 | DC Buchse 5,5x2,5 | BarrelJack_Horizontal | J18 |
| 1 | ORP_GND | PinHeader_1x02_P2.54mm_Vertical | J20 |
| 1 | PH_GND | PinHeader_1x02_P2.54mm_Vertical | J21 |
| 1 | DS18B20_W | TerminalBlock_Phoenix_MPT-0,5-3-2.54_1x03_P2.54mm_Horizontal | J23 |
| 1 | ext. Power | TerminalBlock_Phoenix_MPT-0,5-2-2.54_1x02_P2.54mm_Horizontal | J24 |
| 1 | ORP_SIG | PinHeader_1x02_P2.54mm_Vertical | J26 |
| 1 | PH_SIG | PinHeader_1x02_P2.54mm_Vertical | J27 |
| 1 | LCD-20X4B | LCD_LCD-20X4B | DS1 |
| 1 | BOBUINO STANDARD | SolderJumper-3_P1.3mm_Bridged12_RoundedPad1.0x1.5mm_NumberLabels | JP5 |
| 2 | G5V-2 | Relay_DPDT_Omron_G5V-2 | K1, K2 |
| 1 | B0505S-2WR2 | B0505S2WR2 | PS1/U6 |
| 1 | B0505S-1WR2 | B0505S1WR2 | PS2 |
| 1 | CONFIG | SW_SPST_FSMSM | SW1 |
| 1 | CONFIG | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D1 |
| 1 | Freilaufdiode | D_DO-34_SOD68_P7.62mm_Horizontal | D3 |
| 1 | LED | LED_D4.0mm | D4 |
| 1 | 470µF | CP_Radial_D5.0mm_P2.50mm | C1 |
| 1 | 10µF/6V | CP_Radial_D5.0mm_P2.50mm | C2 |
| 1 | 470µF/6V | CP_Radial_D5.0mm_P2.50mm | C3 |
| 9 | 100n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C4, C5, C6, C7, C8, C9, C10, C12 +1 |
| 1 | 1µ | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C11 |
| 1 | 80k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1 |
| 1 | 220k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R2 |
| 3 | 240 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R3, R10, R13 |
| 1 | 4.7k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R4 |
| 1 | 100k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R5 |
| 6 | 10k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R6, R7, R8, R9, R11, R12 |
HB-UNI-SEN-POOL 2023 05.1 design files
The KiCad project lives in the chianti2000/00-SmartHome repository on GitHub; these links point at the commit this page was built from.
HB-UNI-SEN-POOL 2023 05.1: common questions
What microcontroller does the HB-UNI-SEN-POOL 2023 05.1 use?
The HB-UNI-SEN-POOL 2023 05.1 is built around the ATmega1284P-A, from the AVR/Arduino family.
How big is the HB-UNI-SEN-POOL 2023 05.1 PCB?
The HB-UNI-SEN-POOL 2023 05.1 measures 117 × 95 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the HB-UNI-SEN-POOL 2023 05.1?
69 components, from 53 distinct parts. The full bill of materials is listed on this page.
Where can I download the HB-UNI-SEN-POOL 2023 05.1 design files?
From the chianti2000/00-SmartHome repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the HB-UNI-SEN-POOL 2023 05.1 design in my own project?
The repository has no license, so all rights stay with chianti2000. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the HB-UNI-SEN-POOL 2023 05.1 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
