HB-UNI-TEST-PROG-BOARD V2.2
About the HB-UNI-TEST-PROG-BOARD V2.2
HB-UNI-TEST-PROG-BOARD V2.2 is an open source AVR/Arduino PCB design by chianti2000, published on GitHub. It is a 2-layer board measuring 200.8 × 100.3 mm, with 86 components from 50 distinct parts.
Its main chip is the ATmega328P-AU, from the AVR/Arduino family. Other key parts include the CC1101, AMS1117-3.3, MAX1724, ATmega1284P-AU and FTDI232_PCB. By type, the board carries 20 resistors, 17 capacitors, 12 connectors, 11 jumpers, 8 switches and 7 ICs.
It belongs with the iot & wireless and usb & debug tools designs in this gallery, and the repository also holds 1 earlier revision of it.

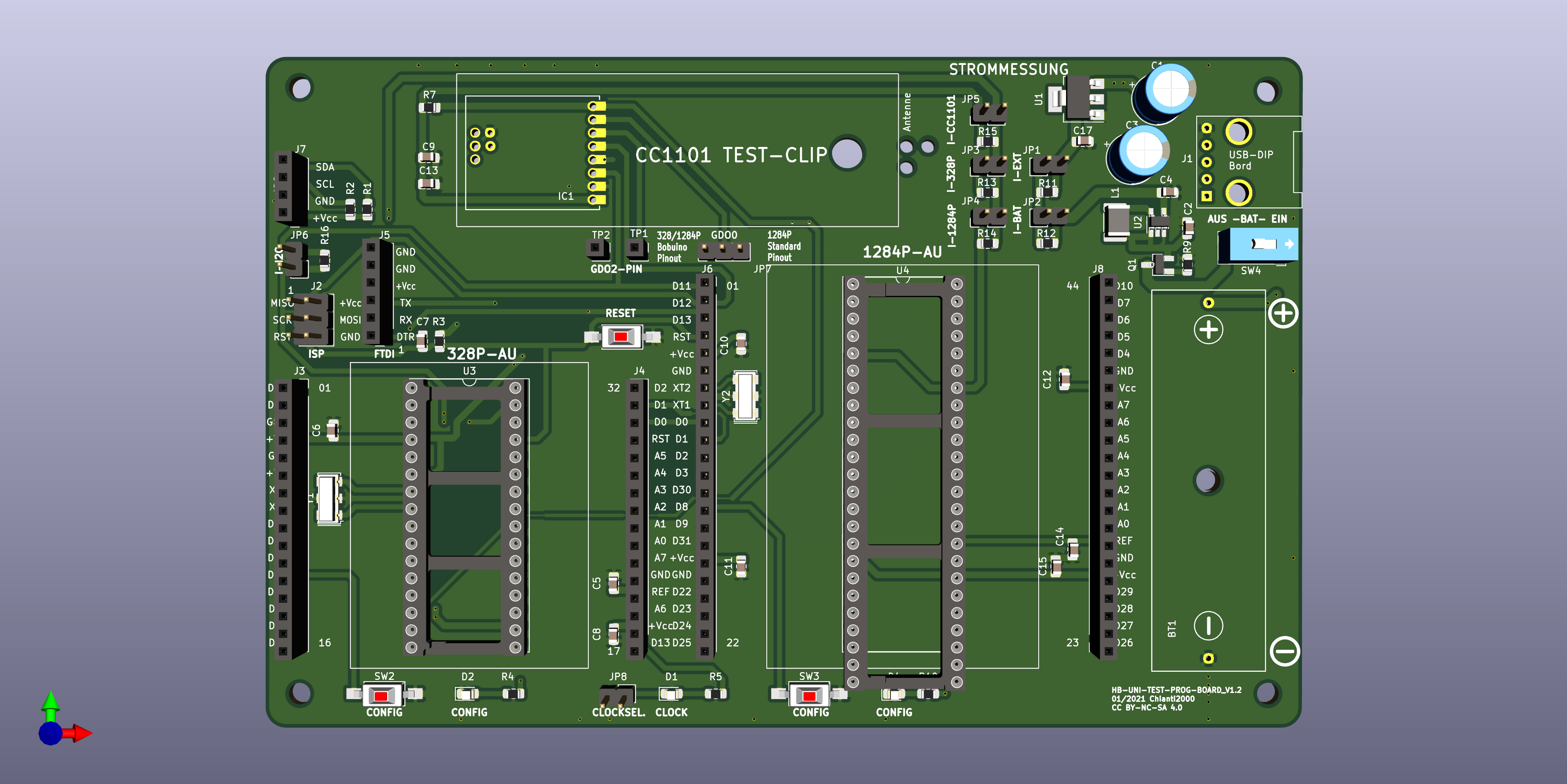

From the project
Various SmartHome projects and PCB's
Eine Platine zum Programmieren des ARDUINO PRO MINI und der AVR 328P-AU /1284P-AU sowie für den Frequenztest /Frequenzpairing der programmierten AVR mit dem CC1101 Funkmodul.
Ich möchte hier mein Programmier- und Testboard für den Arduino Pro Mini, 328P-AU und 1284P-AU und kompatible mit TQFP-32 und -44 Sockel vorstellen. Ausgangspunkt war die HB-CC01-Testbench von Tom. Da aber immer mehr User AVR-Chips bei ihren Selbstbauprojekten einsetzen, ist sicher auch hier der Bedarf für eine Programmier- und Testbench vorhanden.
Main components on the HB-UNI-TEST-PROG-BOARD V2.2
HB-UNI-TEST-PROG-BOARD V2.2 bill of materials (BOM)
86 components, 50 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CC1101 | CC1101_POGOPIN | IC1 |
| 1 | AMS1117-3.3 | SOT-223 | U1 |
| 1 | MAX1724 | SOT-23-5_HandSoldering | U2 |
| 1 | ATmega328P-AU | DIP-32_W15.24mm_Socket | U3 |
| 1 | ATmega1284P-AU | DIP-48_W15.24mm_Socket | U4 |
| 1 | FTDI232_PCB | FTDI232_PCB | U5 |
| 1 | ARDUINO_PRO_MINI | MODULE_ARDUINO_PRO_MINI | U6 |
| 1 | IRLML5203 | SOT-23_Handsoldering | Q1 |
| 2 | Resonator | Resonator_SMD-3Pin_7.2x3.0mm | Y1, Y2 |
| 1 | USB_B_Micro | USB-MICRO-DIP | J1 |
| 1 | ISP | PinHeader_2x03_P2.54mm_Vertical | J2 |
| 1 | 328_PIN 01-16 | PinSocket_1x16_P2.54mm_Vertical | J3 |
| 1 | 328_PIN 17-32 | PinSocket_1x16_P2.54mm_Vertical | J4 |
| 2 | FTDI | PinSocket_1x06_P2.54mm_Vertical | J5, J10 |
| 1 | 1284 PIN 01-22 | PinSocket_1x22_P2.54mm_Vertical | J6 |
| 2 | I2C | PinSocket_1x04_P2.54mm_Vertical | J7, J11 |
| 1 | 1284 PIN 23-44 | PinSocket_1x22_P2.54mm_Vertical | J8 |
| 2 | ARDUINO PIN | PinSocket_1x14_P2.54mm_Vertical | J12, J13 |
| 1 | Battery | BATTERY_HOLDER_GOOBAY_AA | BT1 |
| 1 | I-EXT | PinHeader_1x02_P2.54mm_Vertical | JP1 |
Show 30 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | I-BAT | PinHeader_1x02_P2.54mm_Vertical | JP2 |
| 1 | I-328P | PinHeader_1x02_P2.54mm_Vertical | JP3 |
| 1 | I-1284P | PinHeader_1x02_P2.54mm_Vertical | JP4 |
| 1 | I-CC1101 | PinHeader_1x02_P2.54mm_Vertical | JP5 |
| 1 | I-I2C | PinHeader_1x02_P2.54mm_Vertical | JP6 |
| 1 | BOBUINO - GDO0 - STANDARD | PinHeader_1x03_P2.54mm_Vertical | JP7 |
| 1 | CLOCKSEL | PinHeader_1x02_P2.54mm_Vertical | JP8 |
| 1 | I-I2CArd. | PinHeader_1x02_P2.54mm_Vertical | JP9 |
| 1 | I-ARDUINO | PinHeader_1x02_P2.54mm_Vertical | JP10 |
| 1 | VCC-SEL | PinHeader_1x03_P2.54mm_Vertical | JP11 |
| 1 | RESET | SW_SPST_FSMSM | SW1 |
| 3 | CONFIG | SW_SPST_FSMSM | SW2, SW3, SW5 |
| 1 | SW_DIP_x01 | SW_DIP_SPSTx01_Slide_9.78x4.72mm_W7.62mm_P2.54mm | SW4 |
| 1 | FRQ.-Test | SW_DIP_SPSTx02_Slide_9.78x7.26mm_W7.62mm_P2.54mm | SW6 |
| 1 | ISP-Funktion | SW_DIP_SPSTx04_Slide_9.78x12.34mm_W7.62mm_P2.54mm | SW7 |
| 1 | ISP_FKT. | SW_DIP_SPSTx02_Slide_9.78x7.26mm_W7.62mm_P2.54mm | SW8 |
| 2 | TestPin | PinSocket_1x01_P2.54mm_Vertical | TP1, TP2 |
| 1 | CLOCK | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D1 |
| 3 | CONFIG | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D2, D3, D4 |
| 1 | LQH43CN100K03L | L_1812_4532Metric_Pad1.30x3.40mm_HandSolder | L1 |
| 2 | 100µF/16V | CP_Radial_D7.5mm_P2.50mm | C1, C3 |
| 1 | 10µF/10V | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C2 |
| 2 | 10µF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C4, C17 |
| 11 | 100n | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C5, C6, C7, C8, C9, C10, C11, C12 +3 |
| 1 | 1µ | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C13 |
| 7 | 10k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R1, R2, R3, R6, R7, R8, R20 |
| 3 | 1,5k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R4, R10, R18 |
| 1 | 330 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R5 |
| 1 | 100k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R9 |
| 8 | SHUNT | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R11, R12, R13, R14, R15, R16, R17, R19 |
HB-UNI-TEST-PROG-BOARD V2.2 design files
The KiCad project lives in the chianti2000/00-SmartHome repository on GitHub; these links point at the commit this page was built from.
HB-UNI-TEST-PROG-BOARD V2.2: common questions
What microcontroller does the HB-UNI-TEST-PROG-BOARD V2.2 use?
The HB-UNI-TEST-PROG-BOARD V2.2 is built around the ATmega328P-AU, from the AVR/Arduino family.
How big is the HB-UNI-TEST-PROG-BOARD V2.2?
The HB-UNI-TEST-PROG-BOARD V2.2 measures 200.8 × 100.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the HB-UNI-TEST-PROG-BOARD V2.2?
86 components, from 50 distinct parts. The full bill of materials is listed on this page.
Where can I download the HB-UNI-TEST-PROG-BOARD V2.2 design files?
From the chianti2000/00-SmartHome repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the HB-UNI-TEST-PROG-BOARD V2.2 design in my own project?
The repository has no license, so all rights stay with chianti2000. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the HB-UNI-TEST-PROG-BOARD V2.2 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
