Frameortho

chinh4·frameergo·KiCAD/Keyboard/frameortho.kicad_pcb

Frameortho PCB layout, top view — open source RP2040/RP2350 board by chinh4

About the Frameortho PCB

Frameortho is an open source RP2040/RP2350 PCB design by chinh4, published on GitHub. It is a 2-layer board measuring 226 × 105 mm, with 67 components from 12 distinct parts.

Its main chip is the CY7C65634-28LTXC, from the RP2040/RP2350 family. Other key parts include the W25Q128JVS and XC6206PxxxMR. By type, the board carries 36 diodes, 18 capacitors, 7 resistors, 3 ICs, 2 switches and 1 crystal.

It belongs with the usb & debug tools designs in this gallery.

From the project

An ergonomic framework mod.

An ergonomic laptop based off of the framework 13, based off of the concept by the Evan and Katelyn youtube channel. It will feature a keyboard based on the ferris sweep (though modified), and an adjustable display.

images that look somewhat nice hopefully

Put it together and enjoy... its pretty self explanatory. You can pivot the screen however you wish, as long as the cables reach.

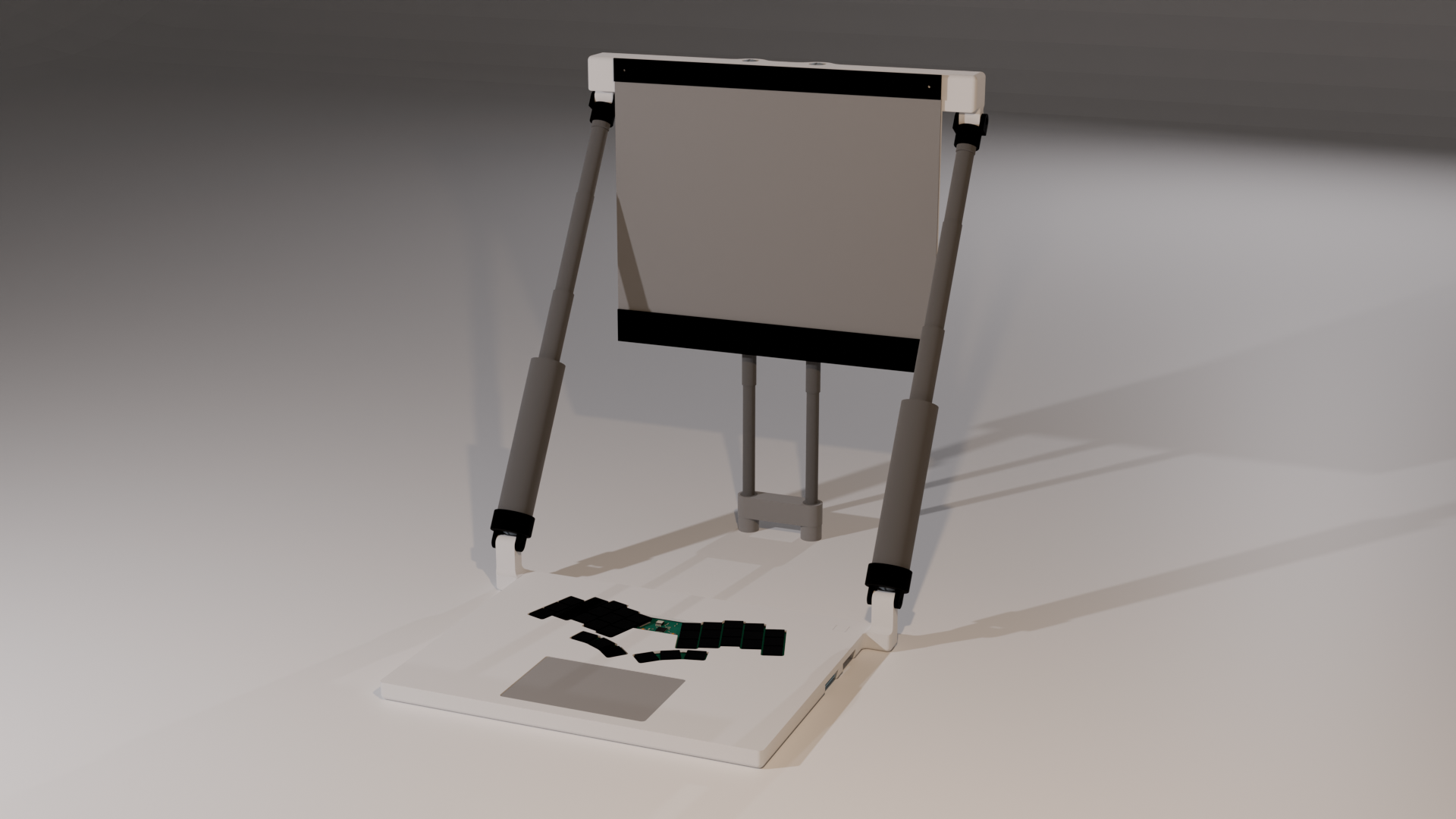

Frameortho, from the project README
From the project README

Main components on the Frameortho

CY7C65634-28LTXCW25Q128JVSXC6206PxxxMR

Frameortho bill of materials (BOM)

67 components, 12 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
CY7C65634-28LTXC
RP2040
U1
1
W25Q128JVS
U2
1
XC6206PxxxMR
U3
1
12 MHz 18pF
Y1
2
SW_Push
SW1, SW2
36
D_Small
D1, D2, D3, D4, D5, D6, D7, D8 +28
4
1µF
C1, C2, C11, C16
12
100nF
C3, C4, C5, C6, C7, C8, C9, C10 +4
2
27pF
C14, C15
2
27Ω
R3, R4
3
5.1kΩ
R5, R7, R8
2
1kΩ
R6, R9

Frameortho design files

The KiCad project lives in the chinh4/frameergo repository on GitHub; these links point at the commit this page was built from.

Frameortho: common questions

What microcontroller does the Frameortho use?

The Frameortho is built around the CY7C65634-28LTXC, from the RP2040/RP2350 family.

How big is the Frameortho PCB?

The Frameortho measures 226 × 105 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Frameortho?

67 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Frameortho design files?

From the chinh4/frameergo repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Frameortho design in my own project?

The repository has no license, so all rights stay with chinh4. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Frameortho without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
