Keyboard61 PCB layout, top view — open source RP2040/RP2350 board by cho0h5

About the Keyboard61 PCB

Keyboard61 is an open source RP2040/RP2350 PCB design by cho0h5, published on GitHub. It is a 2-layer board measuring 288.1 × 97.6 mm, with 151 components from 23 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the NCP1117-3.3_SOT223 and W25Q128JVS. By type, the board carries 62 switches, 61 diodes, 16 capacitors, 7 resistors, 3 ICs and 1 crystal.

It belongs with the keyboards designs in this gallery.

From the project

61-key mechanical keyboard

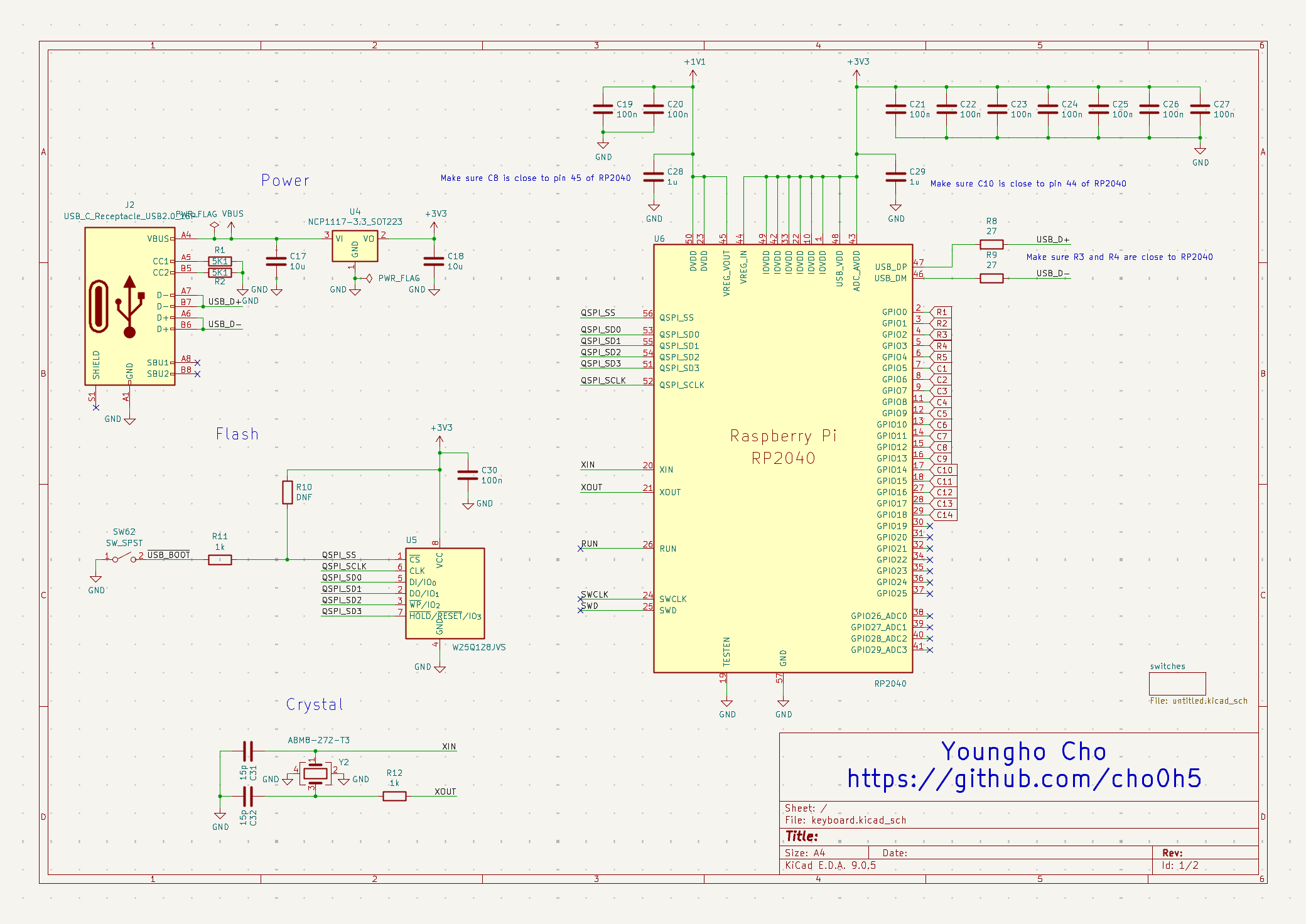

Keyboard61, from the project README
From the project README

Main components on the Keyboard61

NCP1117-3.3_SOT223W25Q128JVSRP2040

Keyboard61 bill of materials (BOM)

151 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
NCP1117-3.3_SOT223
U4
1
W25Q128JVS
U5
1
RP2040
U6
1
ABM8-272-T3
Y2
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J2
46
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +38
1
SW_Push
SW14
2
SW_Push
SW15, SW28
1
SW_Push
SW29
2
SW_Push
SW41, SW42
1
SW_Push
SW53
7
SW_Push
SW54, SW55, SW56, SW58, SW59, SW60, SW61
1
SW_Push
SW57
1
SW_SPST
SW62
61
D
D1, D2, D3, D4, D5, D6, D7, D8 +53
2
10U
10u
C17, C18
10
100N
100n
C19, C20, C21, C22, C23, C24, C25, C26 +2
2
1u
C28, C29
2
15P
15p
C31, C32
2
5K1
R1, R2
Show 3 more
QtyPartRefs
2
27
R8, R9
1
DNF
R10
2
1k
R11, R12

Keyboard61 design files

The KiCad project lives in the cho0h5/keyboard61 repository on GitHub; these links point at the commit this page was built from.

Keyboard61: common questions

What microcontroller does the Keyboard61 use?

The Keyboard61 is built around the RP2040, from the RP2040/RP2350 family.

How big is the Keyboard61 PCB?

The Keyboard61 measures 288.1 × 97.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Keyboard61?

151 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Keyboard61 design files?

From the cho0h5/keyboard61 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Keyboard61 design in my own project?

The repository has no license, so all rights stay with cho0h5. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Keyboard61 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
