SumoBot v1

choicebuilds·SumoBot-v1·electrical/kicad/Robowrestling-500g.kicad_pcb

SumoBot v1 PCB layout, top view — open source AVR/Arduino board by choicebuilds

About the SumoBot v1 PCB

SumoBot v1 is an open source AVR/Arduino PCB design by choicebuilds, published on GitHub. It is a 4-layer board measuring 88 × 60 mm, with 33 components from 12 distinct parts.

Its main chip is the Arduino_Nano_Every, from the AVR/Arduino family. Other key parts include the L7805CV and ROB-14450. By type, the board carries 12 diodes, 7 resistors, 3 modules, 2 ICs, 2 inductors and 2 capacitors.

It belongs with the robotics & motion, power & battery and sensors designs in this gallery.

From the project

A Robojackets robot (v1) built from scratch, featuring a (technically) 2-layer PCB fabricated using the LPKF Protomat/Protolaser and a 3D-printed chassis.

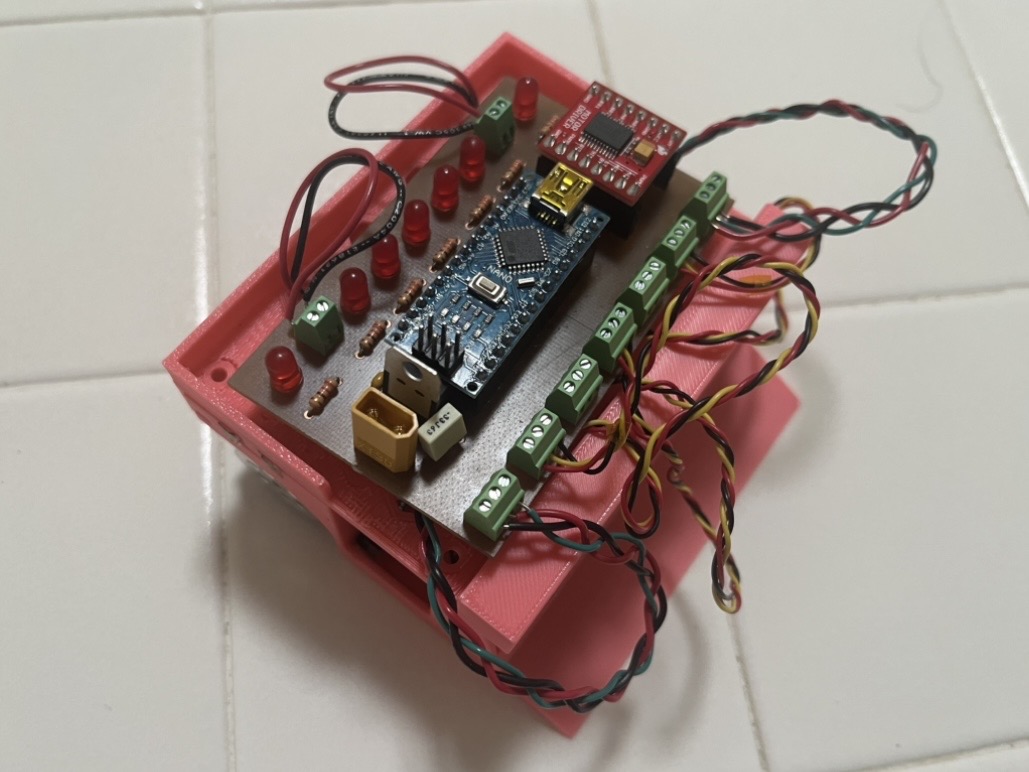

SumoBot v1, from the project README
From the project README

Main components on the SumoBot v1

L7805CVROB-14450Arduino_Nano_Every

SumoBot v1 bill of materials (BOM)

33 components, 12 distinct parts.

QtyPartRefs
1
L7805CV
U1
1
ROB-14450
U2
1
Arduino_Nano_Every
A2
2
Screw_Terminal_01x02
M1, M2
4
GND Via
G1, G2, G3, G4
1
Conn_01x02
JB1
5
Distance Sensor
D1, D2, D3, D4, D5
7
LED
D11, D12, D13, D14, D15, D21, D22
2
Line Sensor
L1, L2
1
0.33uF
C3
1
0.1uF
C6
7
220
R11, R12, R13, R14, R15, R21, R22

SumoBot v1 design files

The KiCad project lives in the choicebuilds/SumoBot-v1 repository on GitHub; these links point at the commit this page was built from.

SumoBot v1: common questions

What microcontroller does the SumoBot v1 use?

The SumoBot v1 is built around the Arduino_Nano_Every, from the AVR/Arduino family.

How big is the SumoBot v1 PCB?

The SumoBot v1 measures 88 × 60 mm, has 4 copper layers and is 1.600198 mm thick.

How many components are on the SumoBot v1?

33 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the SumoBot v1 design files?

From the choicebuilds/SumoBot-v1 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the SumoBot v1 design in my own project?

The repository has no license, so all rights stay with choicebuilds. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the SumoBot v1 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
