Loongcat40 PCB layout, top view — open source RP2040/RP2350 board by ChrisChrisLoLo
Simulate this board

About the Loongcat40 PCB

Loongcat40 is an open source RP2040/RP2350 PCB design by ChrisChrisLoLo, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 219.1 × 76.2 mm, with 86 components from 6 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. By type, the board carries 42 switches, 40 diodes, 2 ICs, 1 module and 1 jumper.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

loongcat is loooooong

Get PCBs here if you're in the EU!: https://keycapsss.com/Loongcat40-PCB/KC10265

Thank you to NextPCB and all of my Github Sponsors for sponsoring and supporting this project!

Big thank you to @suhga for the fantastic artwork used and displayed on this keyboard! Please check her out at https://twitter.com/suhga!

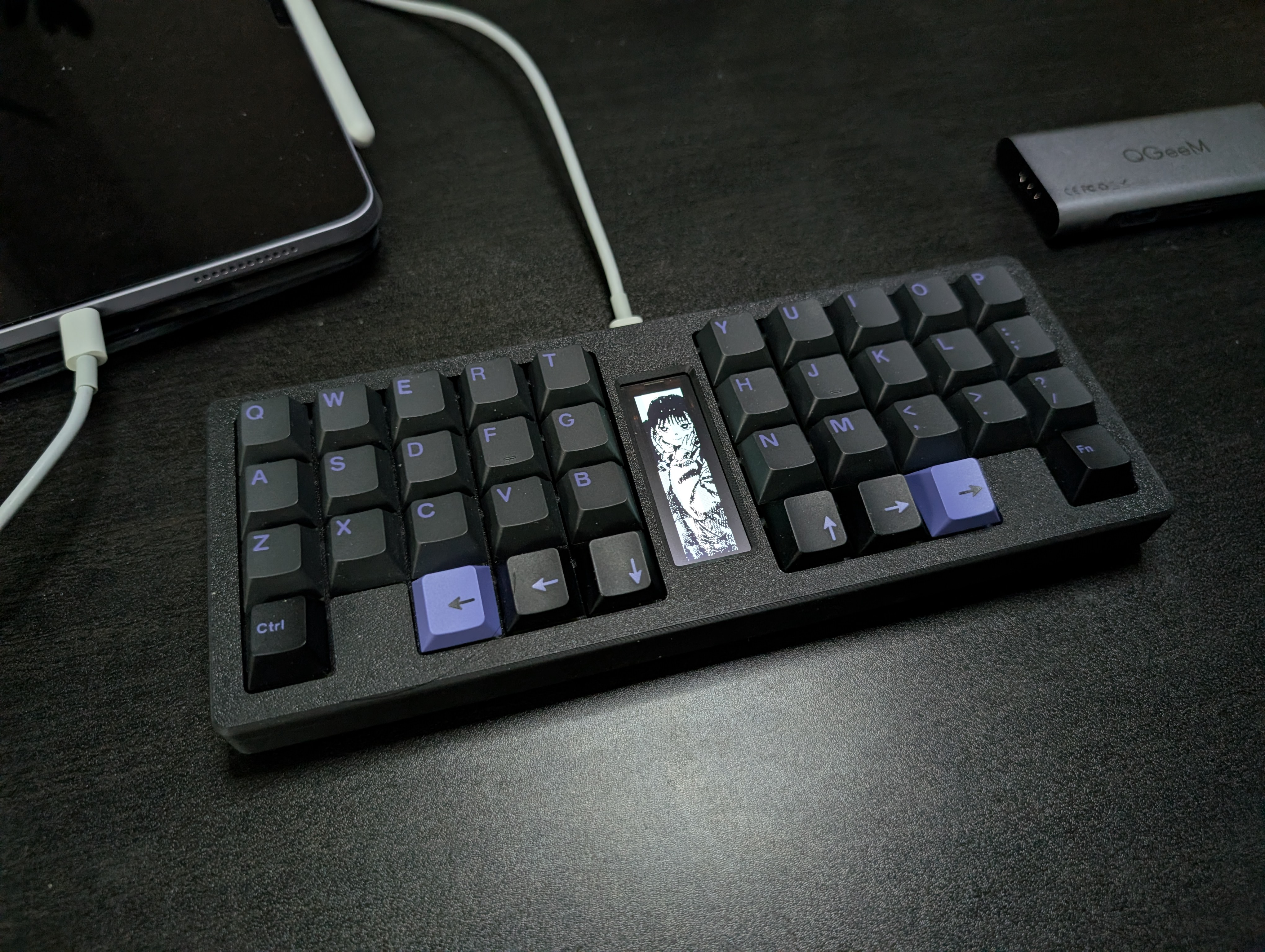

Loongcat40, from the project README
From the project README

Main components on the Loongcat40

RaspberryPi_Pico

Loongcat40 bill of materials (BOM)

86 components, 6 distinct parts.
