Stormduino

Chromico·stormduino

Stormduino PCB layout, top view — open source AVR/Arduino board by Chromico

About the Stormduino PCB

Stormduino is an open source AVR/Arduino PCB design by Chromico, published on GitHub under the MIT license. It is a 2-layer board measuring 68.6 × 53.3 mm, with 45 components from 27 distinct parts.

Its main chip is the ATmega328P-PU, from the AVR/Arduino family. Other key parts include the LM358, AMS1117-5.0, AMS1117-3.3 and CH340C. By type, the board carries 12 capacitors, 10 resistors, 9 connectors, 5 ICs, 5 diodes and 1 transistor.

It belongs with the usb & debug tools designs in this gallery.

From the project

An open source Arduino uno clone made in KiCad

Blog post: https://tecknologg.website/2020/02/02/stormduino-the-arduino-compatible-board-made-in-kicad/

Need to contact me ? Just send me an email at nathan@tecknologg.website or tecknologg@gmail.com

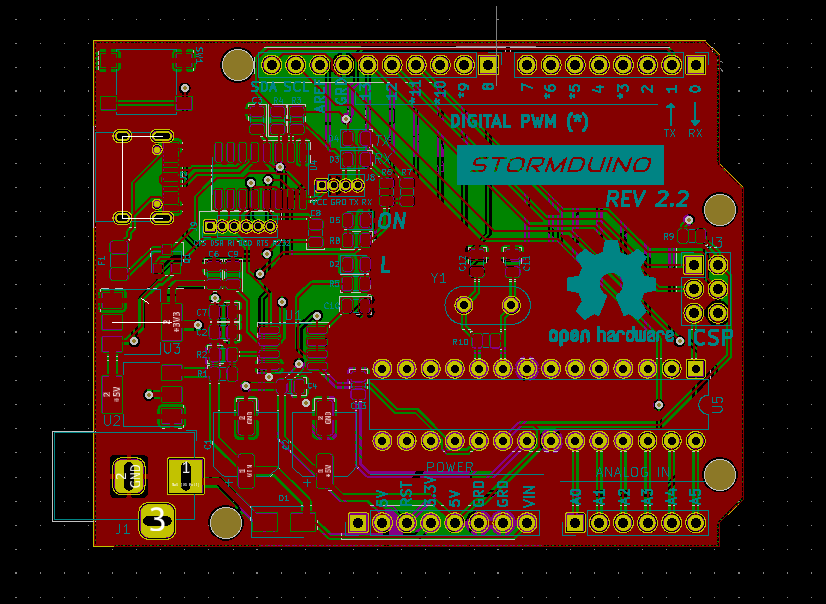

Stormduino, from the project README
From the project README

Main components on the Stormduino

LM358AMS1117-5.0AMS1117-3.3CH340CATmega328P-PU

Stormduino bill of materials (BOM)

45 components, 27 distinct parts.

QtyPartRefs
1
LM358
U1
1
AMS1117-5.0
U2
1
AMS1117-3.3
U3
1
CH340C
U4
1
ATmega328P-PU
U5
1
BS250
Q1
1
16 Mhz
Y1
1
Jack-DC
J1
1
USB_C_Receptacle_USB2.0
J2
1
Conn_02x03_Odd_Even
J3
1
Conn_01x06_MountingPin
J4
2
Conn_01x08_MountingPin
J5, J7
1
Conn_01x10_MountingPin
J6
1
Conn_01x04_MountingPin
J8
1
Conn_01x06_MountingPin
J9
1
Fuse
F1
1
SW_Push
SW1
1
DIODE
D1
4
LED
D2, D3, D4, D5
1
47uF
C1
Show 7 more
QtyPartRefs
1
10uF
C2
7
100nF
C3, C4, C7, C8, C9, C10, C13
1
10uF
C6
2
22pF
C11, C12
2
10k
R1, R2
7
1K
R3, R4, R5, R6, R7, R8, R9
1
1M
R10

Stormduino design files

The KiCad project lives in the Chromico/stormduino repository on GitHub; these links point at the commit this page was built from.

Stormduino: common questions

What microcontroller does the Stormduino use?

The Stormduino is built around the ATmega328P-PU, from the AVR/Arduino family.

How big is the Stormduino PCB?

The Stormduino measures 68.6 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Stormduino?

45 components, from 27 distinct parts. The full bill of materials is listed on this page.

Where can I download the Stormduino design files?

From the Chromico/stormduino repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Stormduino design in my own project?

Yes, under the terms of its MIT license, which Chromico chose for the repository.

Can I test firmware for the Stormduino without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
