Gesture recognition-APDS9500 PCB layout, top view — open source RP2040/RP2350 board by Circuit-Digest

About the Gesture recognition-APDS9500 PCB

Gesture recognition-APDS9500 is an open source RP2040/RP2350 PCB design by Circuit-Digest, published on GitHub. It is a 2-layer board measuring 25.7 × 14.6 mm, with 54 components from 23 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the ADM7171ACPZ-3.3-R7, W25Q16JVUXIQ_TR, APDS-9500 and ADM803SAKSZ-REEL7. By type, the board carries 27 capacitors, 14 resistors, 5 ICs, 4 diodes, 1 crystal and 1 connector.

From the project

Gesture recognition module using APDS9500

For gesture sensing we are using the APDS-9500 sensor from Broadcom. It is an imaging-based gesture recognition IC with an I2C-bus interface. It can recognise nine gestures, including move up, move down, move left, move right, move forward, move backwards, circle-clockwise, circle-counterclockwise and wave. An RP2040 ARM SoC from the Raspberry Pi Foundation is being used as the main controller. When it is plugged in the RP2040 will enumerate an HID device and whenever a gesture is detected it will send a corresponding pre-programmed response to the PC using HID protocol. An ADM7171 ultra low…

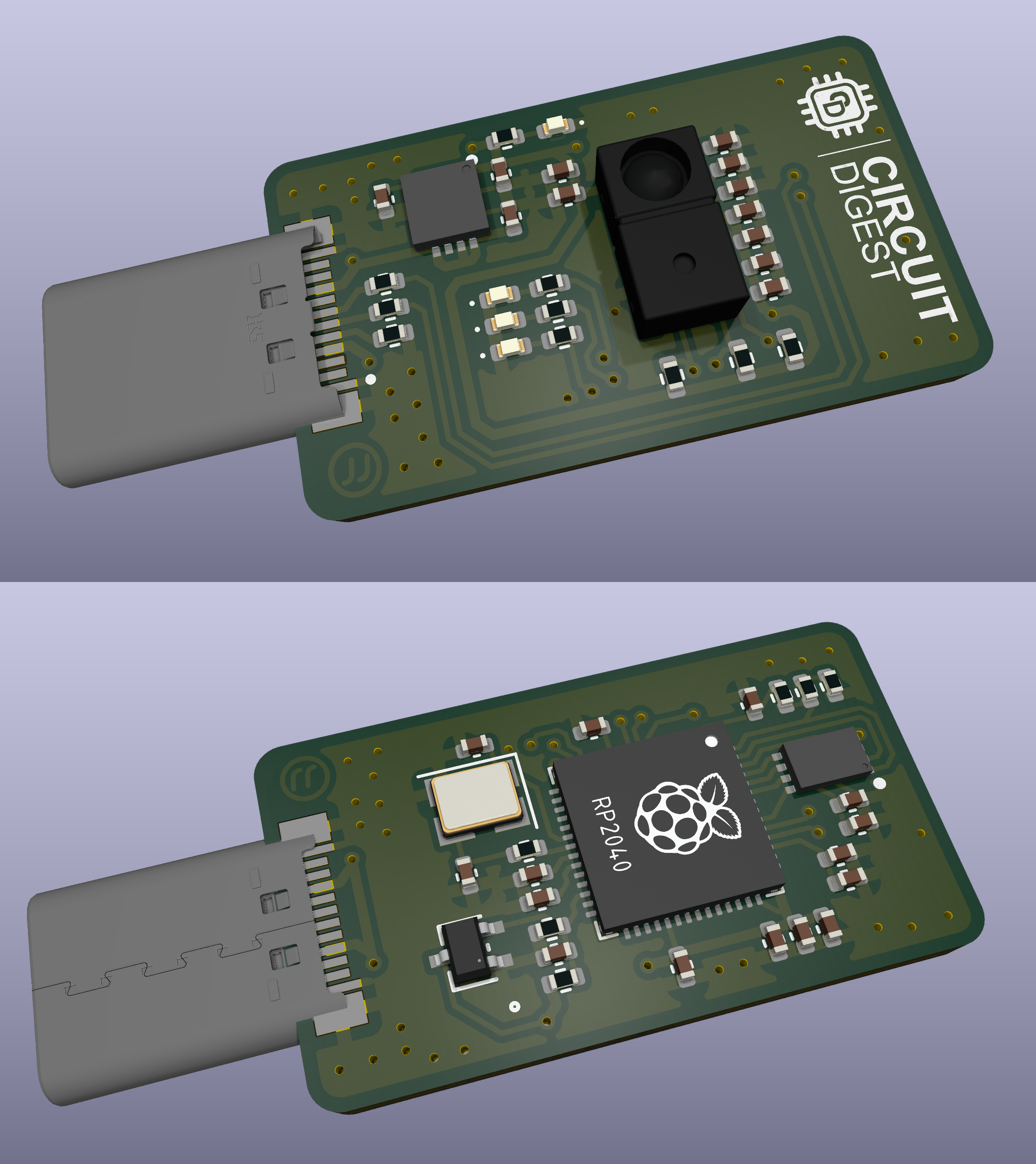

Gesture recognition-APDS9500, from the project README
From the project README

Main components on the Gesture recognition-APDS9500

ADM7171ACPZ-3.3-R7RP2040W25Q16JVUXIQ_TRAPDS-9500ADM803SAKSZ-REEL7

Gesture recognition-APDS9500 bill of materials (BOM)

54 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ADM7171ACPZ-3.3-R7
Analog Devices
IC1
1
RP2040
Raspberry Pi
U1
1
W25Q16JVUXIQ_TR
Winbond
U2
1
APDS-9500
Broadcom Limited
U3
1
ADM803SAKSZ-REEL7
Analog Devices Inc.
U4
1
YIC-12M20P2/XT324-10/10
Raltron Electronics
Y1
1
CX60-24S-UNIT
Hirose Electric Co Ltd
J1
1
UBOOT
BOOT1
1
RST
RST1
2
3147-B2841USD-20D001014U1930
LED Red
Harvatek Corporation
D2, D5
1
3147-B2841NG--05D000514U1930
LED Green
Harvatek Corporation
D3
1
3147-B2841NB--20C001414U1930
LED Blue
Harvatek Corporation
D4
14
100N
100n
Murata Electronics
C1, C2, C5, C6, C7, C8, C9, C10 +6
7
1u
Murata Electronics
C3, C4, C13, C17, C22, C23, C27
2
18PF
18pF
Murata Electronics
C15, C16
2
4.7UF
4.7uF
Samsung Electro-Mechanics
C18, C20
1
1n
Murata Electronics
C21
1
10UF
10uF
Manufacturer
C26
4
10K
10k
Panasonic Electronic Components
R1, R4, R6, R15
6
1k
Panasonic Electronic Components
R2, R3, R9, R10, R17, R18
Show 3 more
QtyPartRefs
1
DNP
R5
2
27R
Panasonic Electronic Components
R7, R8
1
5.1K
5.1k
Panasonic Electronic Components
R11

Gesture recognition-APDS9500 design files

The KiCad project lives in the Circuit-Digest/Gesture-recognition-APDS9500 repository on GitHub; these links point at the commit this page was built from.

Gesture recognition-APDS9500: common questions

What microcontroller does the Gesture recognition-APDS9500 use?

The Gesture recognition-APDS9500 is built around the RP2040, from the RP2040/RP2350 family.

How big is the Gesture recognition-APDS9500 PCB?

The Gesture recognition-APDS9500 measures 25.7 × 14.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Gesture recognition-APDS9500?

54 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Gesture recognition-APDS9500 design files?

From the Circuit-Digest/Gesture-recognition-APDS9500 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Gesture recognition-APDS9500 design in my own project?

The repository has no license, so all rights stay with Circuit-Digest. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Gesture recognition-APDS9500 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
