AfterBurner PCB layout, top view — open source ESP32 board by cloudUwU05

About the AfterBurner PCB

AfterBurner is an open source ESP32 PCB design by cloudUwU05, published on GitHub. It is a 2-layer board measuring 32.2 × 26.3 mm, with 3 components from 3 distinct parts.

Its main chip is the ESP32-C3_SUPERMINI_TH, from the ESP32 family. By type, the board carries 2 connectors and 1 IC.

From the project

Just me building some sort of Afterburner

This is my backup/posting of my little Afterburner test piece, \ Its not great but i have seen worse

The Stl files for the pipeclamps etc are all in the Stl folder \ The PCB is finally working, i scraped the power part, but the 5V from the ESC controller should be enough

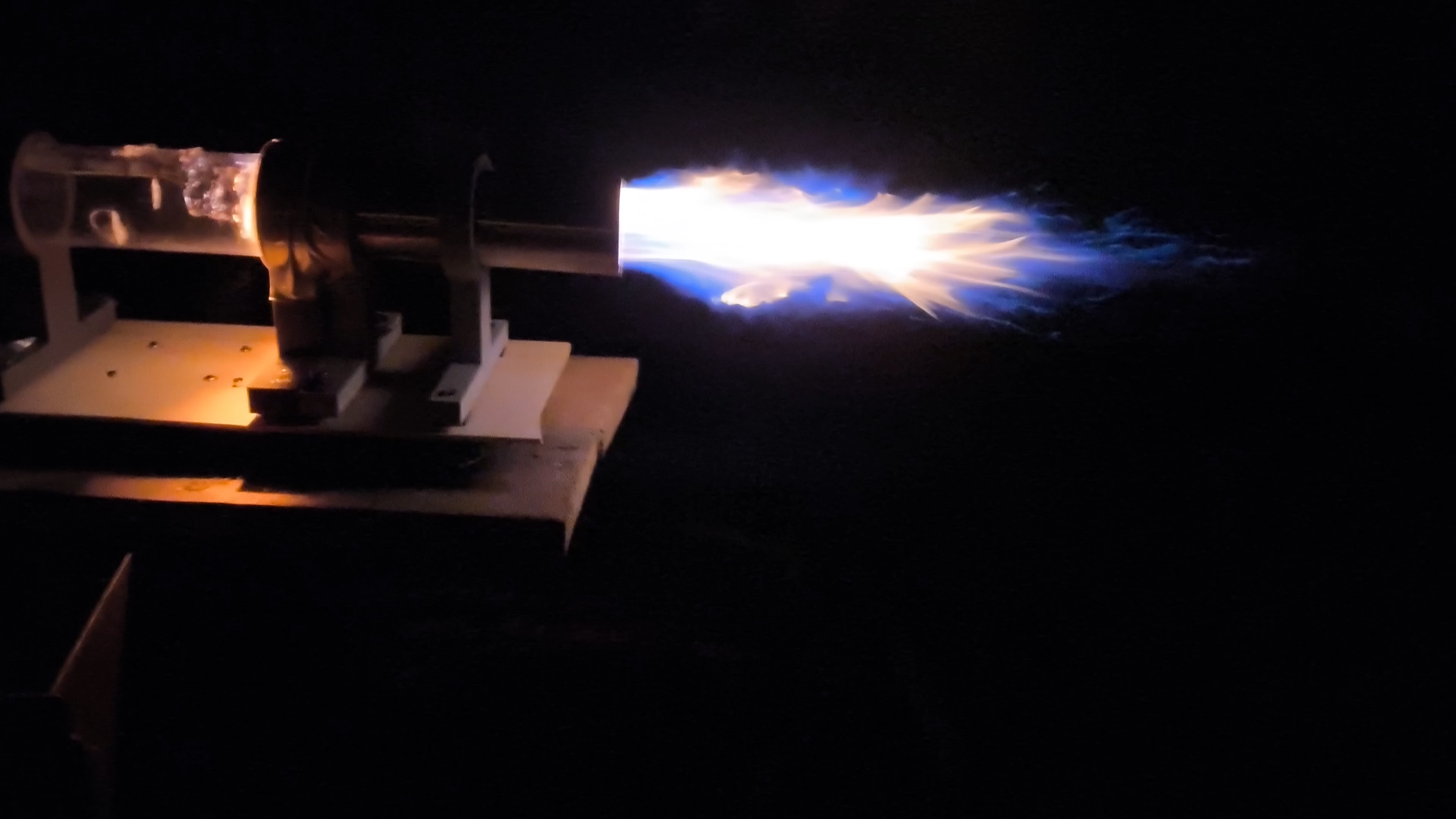

AfterBurner, from the project README
From the project README

Main components on the AfterBurner

ESP32-C3_SUPERMINI_TH

AfterBurner bill of materials (BOM)

3 components, 3 distinct parts.

QtyPartRefs
1
ESP32-C3_SUPERMINI_TH
U1
1
PulseIn
J1
1
Display
J2

AfterBurner design files

The KiCad project lives in the cloudUwU05/AfterBurner repository on GitHub; these links point at the commit this page was built from.

AfterBurner: common questions

What microcontroller does the AfterBurner use?

The AfterBurner is built around the ESP32-C3_SUPERMINI_TH, from the ESP32 family.

How big is the AfterBurner PCB?

The AfterBurner measures 32.2 × 26.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the AfterBurner?

3 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the AfterBurner design files?

From the cloudUwU05/AfterBurner repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the AfterBurner design in my own project?

The repository has no license, so all rights stay with cloudUwU05. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the AfterBurner without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
