Spinali mcxn t1 io

CogniPilot·spinali_mcxn_t1_shields·kicad/spinali_mcxn_t1_io/spinali_mcxn_t1_io.kicad_pcb

Spinali mcxn t1 io PCB layout, top view — open source board by CogniPilot
Simulate this board

About the Spinali mcxn t1 io PCB

Spinali mcxn t1 io is an open source PCB design by CogniPilot, published on GitHub under the SHL-2.1 license. It is a 4-layer board measuring 36.5 × 46 mm, with 78 components from 50 distinct parts.

By type, the board carries 26 diodes, 23 capacitors, 14 resistors, 13 connectors, 1 transistor and 1 switch.

It belongs with the rf & radio and sensors designs in this gallery.

From the project

Design files for MCXN-T1-Shields

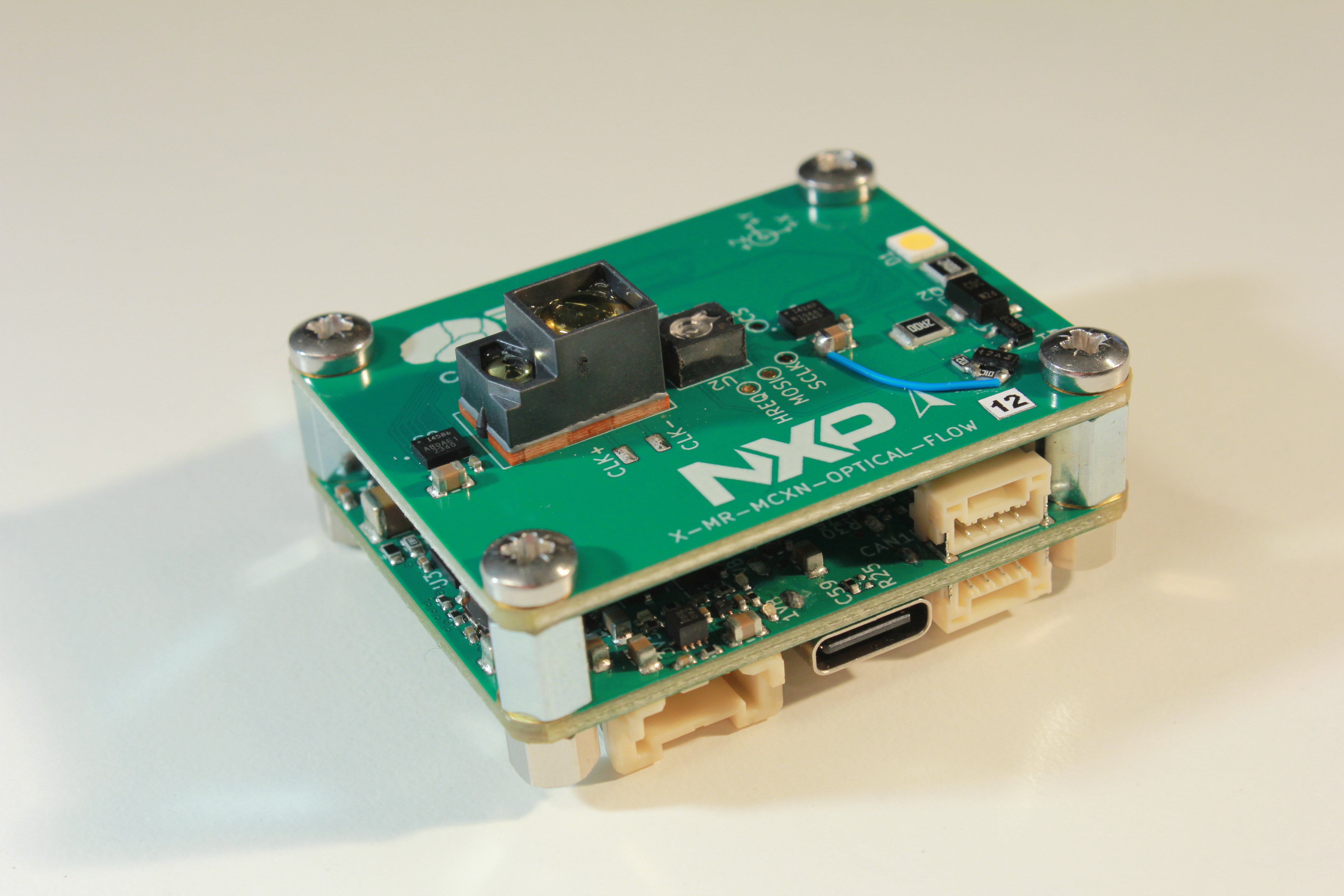

Spinali mcxn t1 io, from the project README
From the project README

Spinali mcxn t1 io bill of materials (BOM)

78 components, 50 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
480-75317
NX138BKMYL
ROHM
Q1
1
210-81775
DF40TC(4.0)-50DS-0.4V(51)
ANYTRONIC CORPORATION LIMITED
J1
1
210-81776
DF40TC(4.0)-50DS-0.4V(51)
ANYTRONIC CORPORATION LIMITED
J2
1
210-81775
I3C
ANYTRONIC CORPORATION LIMITED
J3
1
210-81774
I2C
ANYTRONIC CORPORATION LIMITED
J4
1
210-81617
UART1
ANYTRONIC CORPORATION LIMITED
J5
1
210-81617
UART2
ANYTRONIC CORPORATION LIMITED
J6
1
210-80998
QDEC
SULLINS ELECTRONICS CORP
J7
1
210-83442
GPS
ANYTRONIC CORPORATION LIMITED
J8
1
210-83440
SPI1
ANYTRONIC CORPORATION LIMITED
J9
1
210-78429
SPI2
Pinrex Enterprise Co., Ltd
J10
1
210-82931
ESC1
GLOBAL CONNECTOR TECHNOLOGY INC
J11
1
211-83462
ESC2
GLOBAL CONNECTOR TECHNOLOGY INC
J12
1
RTC_BAT
J13
1
510-78653
CHS-01TA
WURTH ELEKTRONIK EISOS GMBH & CO. KG (ELECTRONIC & ELECTROMEHANICAL COMP)
SW1
1
370-77428
ESD7104MUTAG
Wurth Electronik GmbH & Co. KG (PCB)
D1
1
370-76899
ESD7104MUTAG
Lianyungang Meihua Electronics Technology Co.,Ltd
D2
1
480-76978
ESD7104MUTAG
VISHAY INTERTECHNOLOGY
D3
2
480-76978
PESD5V0S1UL
VISHAY INTERTECHNOLOGY
D4, D6
1
370-76900
ESD7104MUTAG
Lianyungang Meihua Electronics Technology Co.,Ltd
D5
Show 30 more
QtyPartRefs
2
480-78454
ESD7104MUTAG
Nexperia
D7, D8
1
480-77157
ESD7104MUTAG
ON SEMICONDUCTOR
D9
2
370-76900
PESD5V0S1UL
Lianyungang Meihua Electronics Technology Co.,Ltd
D10, D12
1
370-77428
PESD5V0S1UL
Wurth Electronik GmbH & Co. KG (PCB)
D11
2
ESD7104MUTAG
D13, D19
1
480-79814
ESD7104MUTAG
Nexperia
D14
1
480-79814
BAT54HT1G
Nexperia
D15
1
480-79841
PESD5V0S1UL
Nexperia
D16
1
480-78365
ESD7104MUTAG
DIODES INC
D17
6
PESD5V0S1UL
D18, D22, D23, D24, D25, D26
2
P6SMB62A
D20, D21
1
150-80750
100nF 10V
WURTH ELEKTRONIK EISOS GMBH & CO. KG (ELECTRONIC & ELECTROMEHANICAL COMP)
C1
1
150-80750
100nF 16V
WURTH ELEKTRONIK EISOS GMBH & CO. KG (ELECTRONIC & ELECTROMEHANICAL COMP)
C2
9
150-75182
100nF 16V
SKYMOS
C3, C5, C7, C9, C11, C15, C20, C22 +1
6
150-75182
100nF 10V
SKYMOS
C4, C8, C12, C14, C16, C18
2
150-81891
100nF 10V
Wurth Electronik GmbH & Co. KG (PCB)
C6, C10
2
150-81891
100nF 16V
Wurth Electronik GmbH & Co. KG (PCB)
C13, C17
1
150-75182
10nF 25V
SKYMOS
C19
1
150-81893
10nF 25V
Wurth Electronik GmbH & Co. KG (PCB)
C21
2
470-80452
10R
VISHAY
R1, R2
1
470-80452
33k
VISHAY
R3
2
470-30315
2k2
PANASONIC
R4, R6
1
470-30315
33k
PANASONIC
R5
1
470-30315
10k
PANASONIC
R7
1
470-80866
75R
LIKET CORPORATION
R8
1
470-80866
0R
LIKET CORPORATION
R9
2
470-80866
10k
LIKET CORPORATION
R10, R11
1
470-80866
4k7
LIKET CORPORATION
R12
1
4k7
R13
1
470-80866
1k5
LIKET CORPORATION
R16

Spinali mcxn t1 io design files

The KiCad project lives in the CogniPilot/spinali_mcxn_t1_shields repository on GitHub; these links point at the commit this page was built from.

Spinali mcxn t1 io: common questions

How big is the Spinali mcxn t1 io PCB?

The Spinali mcxn t1 io measures 36.5 × 46 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Spinali mcxn t1 io?

78 components, from 50 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Spinali mcxn t1 io design files?

From the CogniPilot/spinali_mcxn_t1_shields repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Spinali mcxn t1 io design in my own project?

It is published under SHL-2.1, which limits how it may be reused; read the license before building on it.
