HockeyHelmetHeadphonesRight PCB layout, top view — open source board by Colden-Rother

About the HockeyHelmetHeadphonesRight PCB

HockeyHelmetHeadphonesRight is an open source PCB design by Colden-Rother, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 60.8 × 58 mm, with 24 components from 14 distinct parts.

By type, the board carries 9 capacitors, 8 resistors, 2 connectors, 2 switches, 1 IC and 1 speaker.

It belongs with the audio and iot & wireless designs in this gallery.

From the project

Open Source PCB and software for modern bluetooth headphones. This specific design was for hockey helmets, but this easily could be used to just make normal headphones or a custom headset. This project gives full part list as well as how to program the device. Working and Tested Project!

By: Colden Rother, Nathaniel Olsen, and Owen Cunningham

Feel free to email us with any questions you may have regarding this project, this is a very large project and you may have additional questions.

Custom Bluetooth stereo headphones designed to fit inside a hockey helmet. The project uses separate left- and right-ear PCBs, a Microchip BM83 Bluetooth audio module, two helmet-mounted speakers, an onboard digital microphone, media-control buttons, USB-C power/charging, and custom 3D-printable housings.

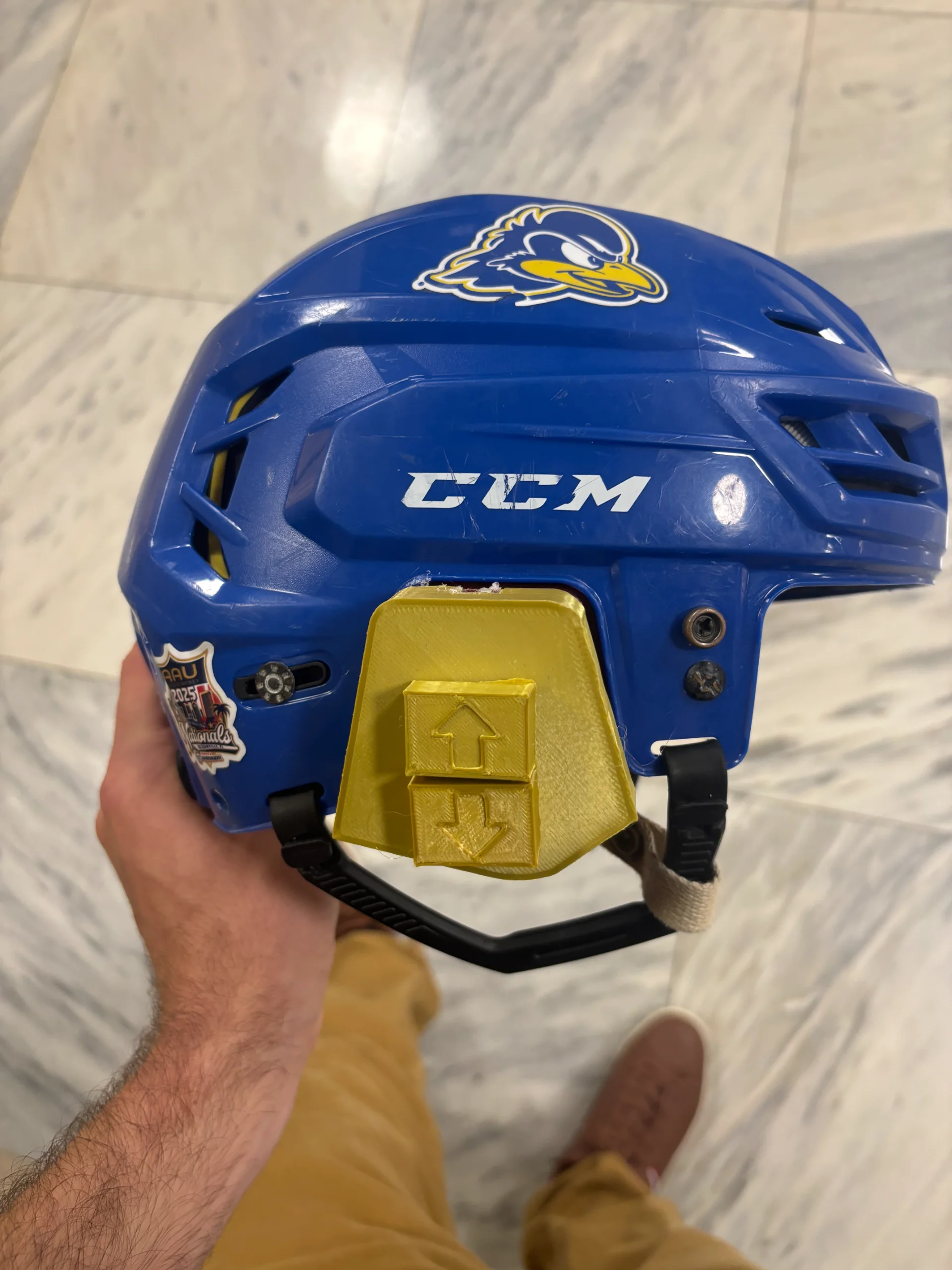

HockeyHelmetHeadphonesRight, from the project README
From the project README

HockeyHelmetHeadphonesRight bill of materials (BOM)

24 components, 14 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
~
U1
1
CONN_01X02
Conn_01x02
J1
1
903250012
J3
1
Speaker
LS101
2
~
SW101, SW102
1
LED_Green
D103
3
0.1U
0.1u
C101, C106, C109
1
1u
C102
1
4.7U
4.7u
C103
2
10U
10u
C107, C108
2
15P
15p
C116, C117
6
0
R1, R2, R3, R4, R5, R6
1
15
R7
1
470
R106

HockeyHelmetHeadphonesRight design files

The KiCad project lives in the Colden-Rother/Hockey-Jamz-Open-Source-Modern-Bluetooth-Headphones-for-Hockey-Helmets repository on GitHub; these links point at the commit this page was built from.

HockeyHelmetHeadphonesRight: common questions

How big is the HockeyHelmetHeadphonesRight PCB?

The HockeyHelmetHeadphonesRight measures 60.8 × 58 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the HockeyHelmetHeadphonesRight?

24 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the HockeyHelmetHeadphonesRight design files?

From the Colden-Rother/Hockey-Jamz-Open-Source-Modern-Bluetooth-Headphones-for-Hockey-Helmets repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the HockeyHelmetHeadphonesRight design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
