Walking Logger

ColouredCat·Walking_Logger·PCB/walking_logger/walking_logger.kicad_pcb

Walking Logger PCB layout, top view — open source RP2040/RP2350 board by ColouredCat

About the Walking Logger PCB

Walking Logger is an open source RP2040/RP2350 PCB design by ColouredCat, published on GitHub. It is a 2-layer board measuring 116.8 × 60.3 mm, with 7 components from 6 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. By type, the board carries 1 module, 1 battery holder and 1 switch.

It belongs with the rf & radio, sensors and displays & leds designs in this gallery.

From the project

Open source design for a GPS and weather monitoring device

A handy pocket-sized device to use while hiking to track you position on a map, heading, and current weather predictions without need for a mobile phone - very handy for cheating on your DofE expeditions!

This project is part of Hack Club Stasis.

- Rasperry Pi Pico microcontroller with micropython - Ublox NEO-6M GPS - BME280 Tempertaure, pressure and humidity sensor - 2x SSD1306 OLED Display - Ansman 16340 Li-ion battery

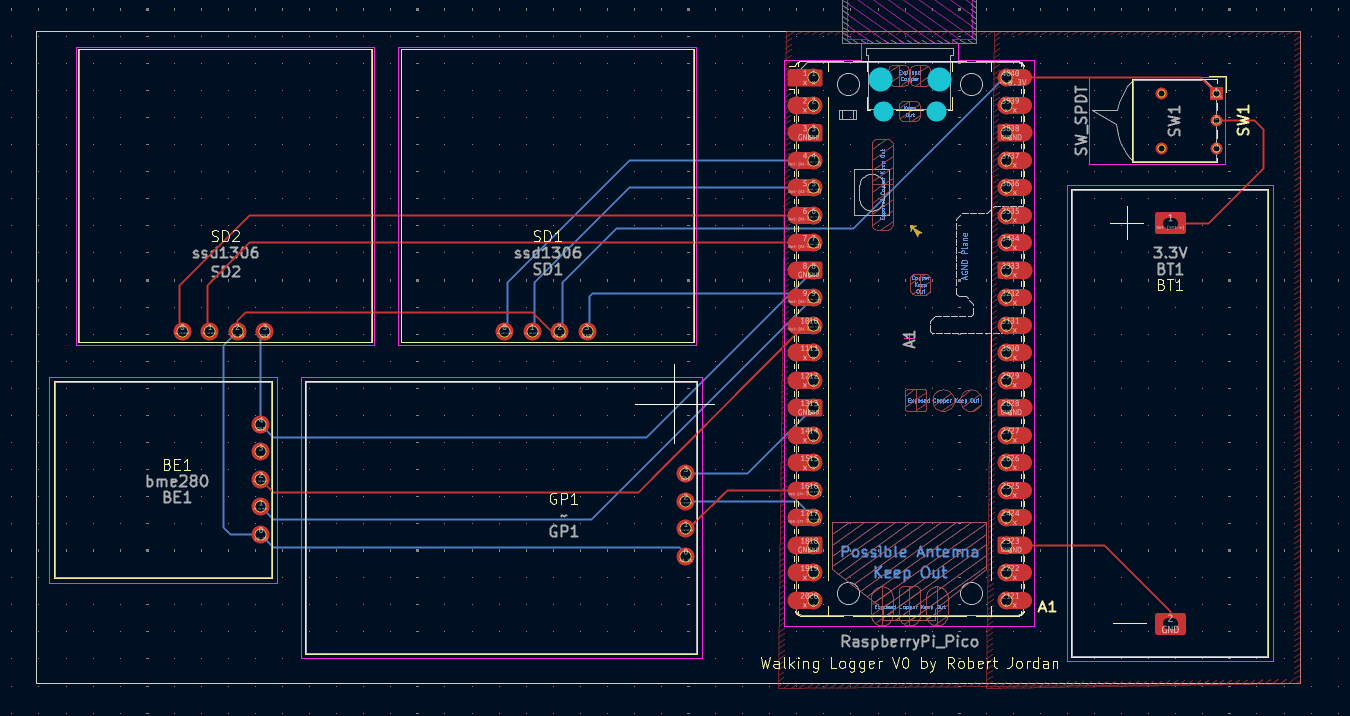

Walking Logger, from the project README
From the project README

Main components on the Walking Logger

RaspberryPi_Pico

Walking Logger bill of materials (BOM)

7 components, 6 distinct parts.

QtyPartRefs
1
RaspberryPi_Pico
A1
1
bme280
BE1
1
3.3V
BT1
1
~
GP1
2
ssd1306
SD1, SD2
1
SW_SPDT
SW1

Walking Logger design files

The KiCad project lives in the ColouredCat/Walking_Logger repository on GitHub; these links point at the commit this page was built from.

Walking Logger: common questions

What microcontroller does the Walking Logger use?

The Walking Logger is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the Walking Logger PCB?

The Walking Logger measures 116.8 × 60.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Walking Logger?

7 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Walking Logger design files?

From the ColouredCat/Walking_Logger repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Walking Logger design in my own project?

The repository has no license, so all rights stay with ColouredCat. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Walking Logger without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
