About the Eurorack-DIST PCB

Eurorack-DIST is an open source PCB design by cookiemonsternz, published on GitHub. It is a 2-layer board measuring 105 × 100 mm, with 173 components from 39 distinct parts.

Other key parts include the TL072. By type, the board carries 66 resistors, 57 capacitors, 12 diodes, 9 connectors, 7 ICs and 5 transistors.

It belongs with the audio designs in this gallery.

From the project

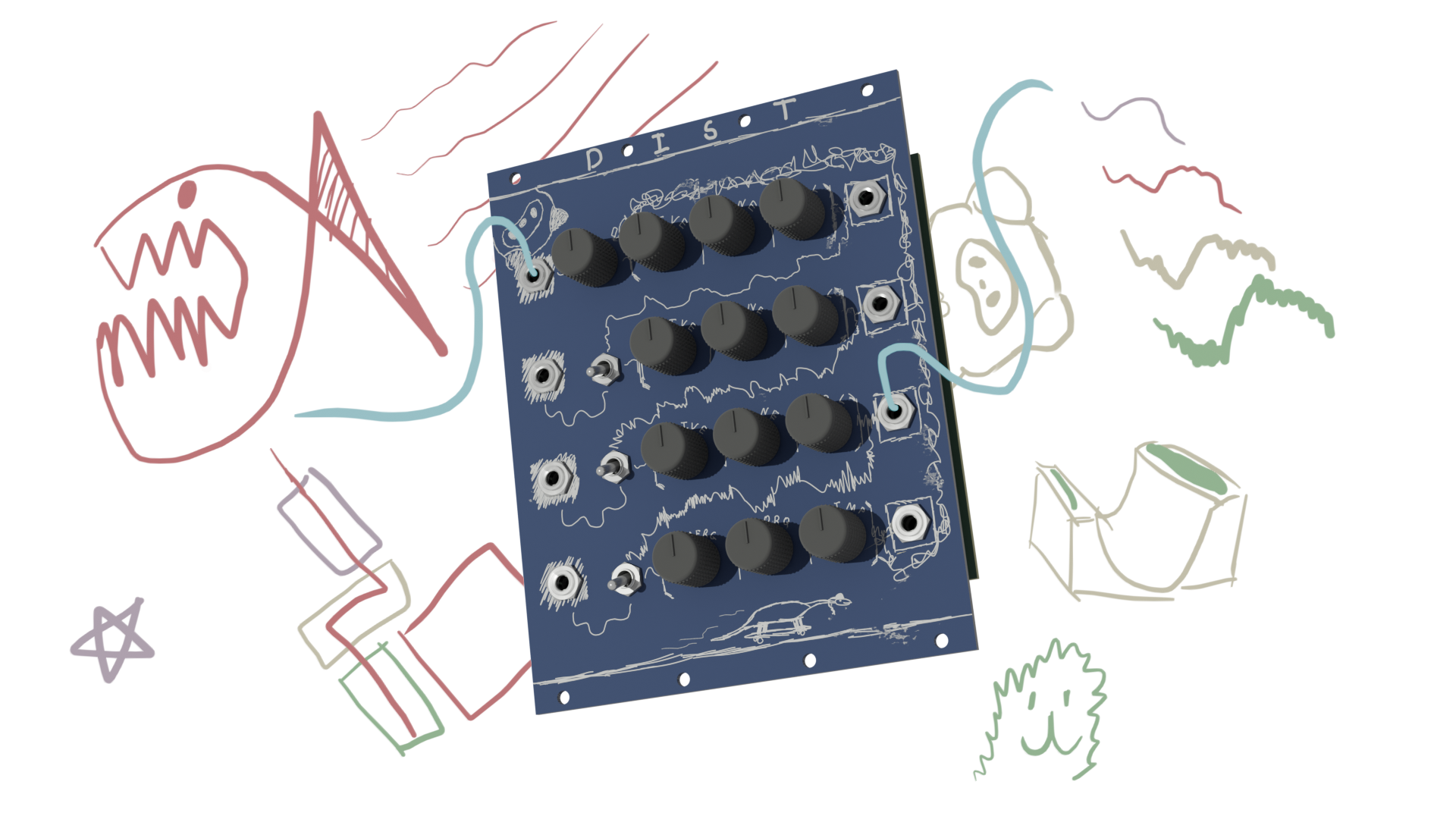

Every circuit has a gain, tone, and volume control, as well as a switch deciding whether to take input from the previous section or from the input jack. The overdrive has a potentiometer instead of a switch, setting an overall feedback control for more fun effects.

Every circuit has a gain, tone, and volume control, as well as a switch deciding whether to take input from the previous section or from the input jack. The overdrive has a potentiometer instead of a switch, setting an overall feedback control for more fun effects.

Its definitely a big module, but you do get an absolute crapton of features and control, which is always nice to have.

Eurorack-DIST, from the project README
From the project README

Main components on the Eurorack-DIST

TL072

Eurorack-DIST bill of materials (BOM)

173 components, 39 distinct parts — part numbers from the project's BOM.

QtyPartRefs
7
TL072
U1, U2, U3, U4, U5, U6, U7
4
BC547B
Q1, Q2, Q3, Q4
1
BSP89
Q5
8
PJ301M
J1, J2, J3, J4, J5, J6, J7, J8
1
Conn_02x08_Odd_Even
J10
7
100k
RV1, RV2, RV3, RV4, RV7, RV10, RV14
6
A-100k
RV5, RV6, RV8, RV9, RV11, RV13
1
B-100k
RV12
3
SW_SPDT
SW1, SW2, SW3
12
1N4148
D1, D2, D3, D4, D5, D6, D7, D8 +4
3
10u
C1, C3, C55
13
220n
C2, C4, C6, C8, C15, C16, C19, C29 +5
19
100n
C9, C10, C11, C12, C20, C23, C27, C30 +11
2
22n
C13, C35
6
1n
C14, C17, C18, C38, C42, C50
3
4.7n
C22, C43, C57
1
2.2u
C24
3
4.7u
C25, C26, C56
1
1u
C36
4
1u
C39, C41, C52, C53
Show 19 more
QtyPartRefs
2
10n
C45, C58
13
100k
R2, R4, R6, R8, R10, R22, R34, R37 +5
4
200k
R9, R21, R33, R56
2
1M
R11, R63
10
1k
R12, R13, R16, R24, R27, R39, R60, R62 +2
2
2.2k
R14, R70
2
220k
R15, R17
4
39k
R18, R31, R50, R71
10
10k
R19, R30, R38, R40, R44, R45, R48, R52 +2
5
560
R20, R26, R32, R55, R76
2
47
R25, R68
1
1.5k
R28
1
6.8k
R36
2
150
R42, R49
3
470k
R43, R47, R66
2
22k
R51, R72
1
150k
R54
1
2.2M
R64
1
4.7k
R65

Eurorack-DIST design files

The KiCad project lives in the cookiemonsternz/Eurorack-DIST repository on GitHub; these links point at the commit this page was built from.

Eurorack-DIST: common questions

How big is the Eurorack-DIST PCB?

The Eurorack-DIST measures 105 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Eurorack-DIST?

173 components, from 39 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Eurorack-DIST design files?

From the cookiemonsternz/Eurorack-DIST repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Eurorack-DIST design in my own project?

The repository has no license, so all rights stay with cookiemonsternz. Use it as a reference, and ask the author before reusing the design.
