About the MicrocontrollerInputModule PCB

MicrocontrollerInputModule is an open source RP2040/RP2350 PCB design by corndog2000, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 31 × 111.4 mm, with 337 components from 19 distinct parts.

Its main chip is the C2040, from the RP2040/RP2350 family. Other key parts include the C2843335 and C554218. By type, the board carries 18 capacitors, 17 resistors, 5 diodes, 4 ICs, 2 fuses and 1 crystal.

It belongs with the displays & leds designs in this gallery.

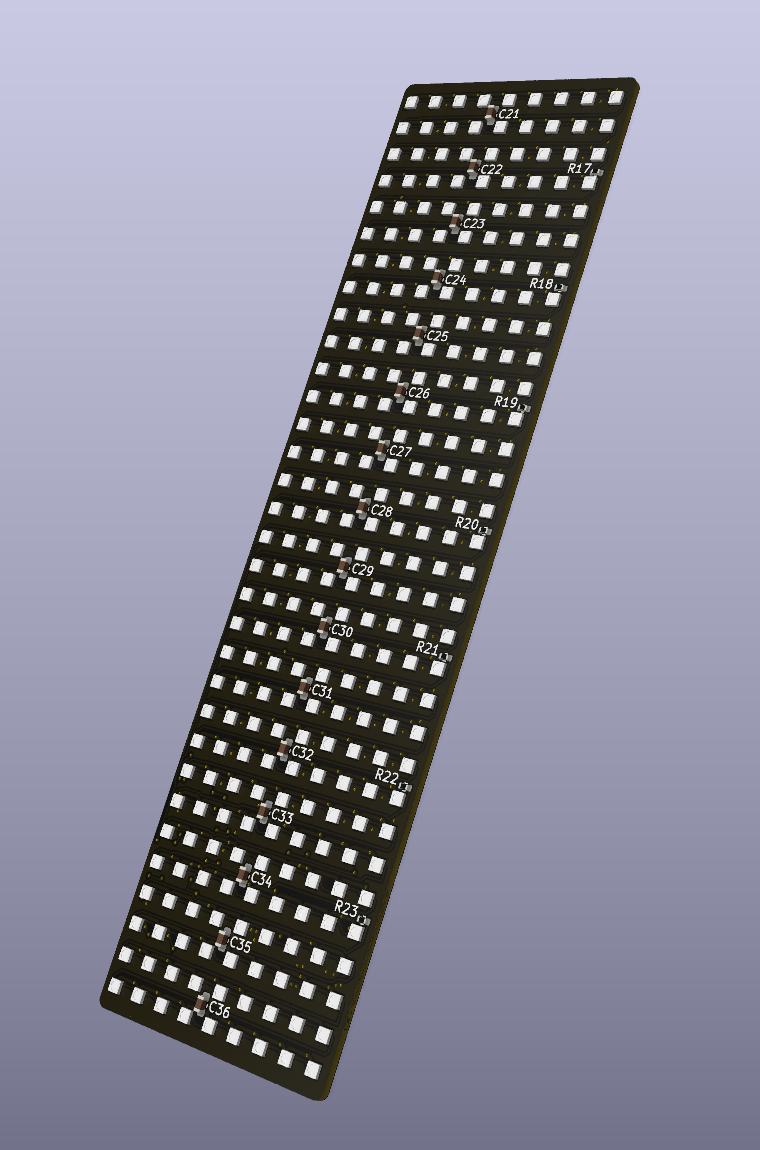

MicrocontrollerInputModule, from the project README
From the project README

Main components on the MicrocontrollerInputModule

C2843335C2040C554218

MicrocontrollerInputModule bill of materials (BOM)

337 components, 19 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C2843335
W25Q16JVUXIQ
U1
1
C2040
RP2040
U2
2
C554218
74AHC125BQ_115
Nexperia
U3, U4
1
C7294551
12.000MHz
Y1
1
C424659
FH34SRJ-12S-0.5SH_50_
J2
1
C883122
Polyfuse 600mA
F1
1
C910826
Polyfuse 200mA
F2
288
C2909055
SK6805-EC14
N1, N2, N3, N4, N5, N6, N7, N8 +280
1
C224990
A6H-2101
SW1
5
C468904
D_TVS
D1, D2, D3, D4, D5
2
C76950
15pF
C1, C2
10
C1525
100nF
C3, C4, C5, C7, C9, C10, C11, C12 +2
2
C29266
1uF
C6, C8
4
C19702
10uF
C15, C16, C17, C18
2
C106235
1k
R1, R3
4
C60490
10k
R2, R4, R8, R24
2
C138021
27
R5, R6
1
C138046
180k
R7
8
C25117
470
R9, R10, R11, R12, R13, R14, R15, R16

MicrocontrollerInputModule design files

The KiCad project lives in the corndog2000/RGB-LED-Matrix-Input-Module repository on GitHub; these links point at the commit this page was built from.

MicrocontrollerInputModule: common questions

What microcontroller does the MicrocontrollerInputModule use?

The MicrocontrollerInputModule is built around the C2040, from the RP2040/RP2350 family.

How big is the MicrocontrollerInputModule PCB?

The MicrocontrollerInputModule measures 31 × 111.4 mm, has 2 copper layers and is 0.955 mm thick.

How many components are on the MicrocontrollerInputModule?

337 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the MicrocontrollerInputModule design files?

From the corndog2000/RGB-LED-Matrix-Input-Module repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the MicrocontrollerInputModule design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.

Can I test firmware for the MicrocontrollerInputModule without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
