Rp2350a main board

Crem2y·rp2350a_main_board

Rp2350a main board layout, top view — open source RP2040/RP2350 board by Crem2y

About the Rp2350a main board

Rp2350a main board is an open source RP2040/RP2350 PCB design by Crem2y, published on GitHub. It is a 2-layer board measuring 63.5 × 40.6 mm, with 73 components from 30 distinct parts.

Its main chip is the RP2350_60QFN, from the RP2040/RP2350 family. Other key parts include the TPS63802, TPS2117DRL, W25Q16JVSS, APS1604M-3SQRx-SN and USBLC6-2SC6. By type, the board carries 26 capacitors, 25 resistors, 10 connectors, 6 ICs, 3 switches and 2 inductors.

From the project

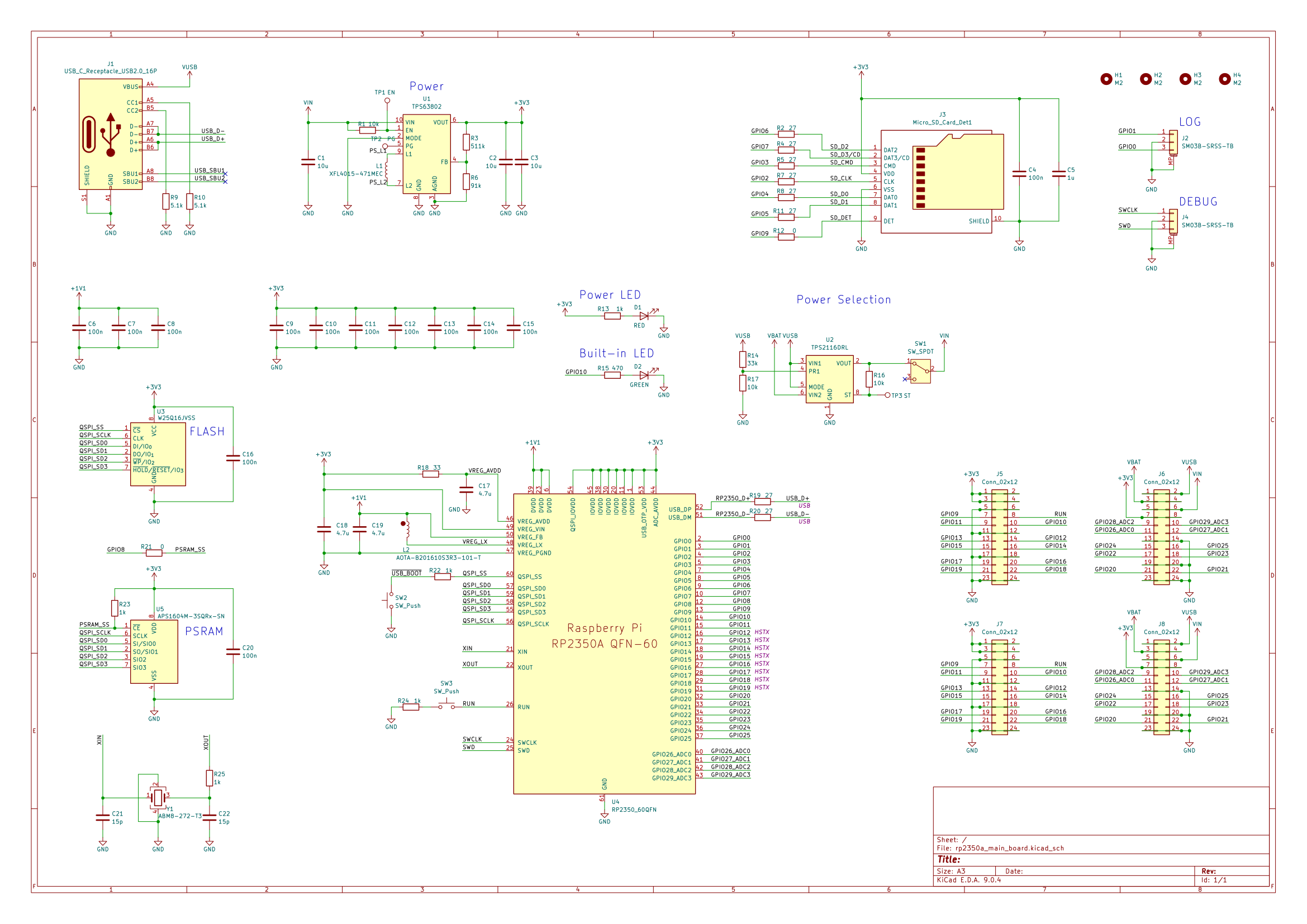

rp2350a main board

Rp2350a main board, from the project README
From the project README

Main components on the Rp2350a main board

TPS63802TPS2117DRLW25Q16JVSSRP2350_60QFNAPS1604M-3SQRx-SNUSBLC6-2SC6

Rp2350a main board bill of materials (BOM)

73 components, 30 distinct parts.

QtyPartRefs
1
TPS63802
U1
1
TPS2117DRL
U2
1
W25Q16JVSS
U3
1
RP2350_60QFN
U4
1
APS1604M-3SQRx-SN
U5
1
USBLC6-2SC6
U6
1
ABM8-272-T3
Y1
1
USB_C_Receptacle_USB2.0_16P
J1
2
SM03B-SRSS-TB
J2, J4
1
Micro_SD_Card_Det1
J3
2
Conn_02x12
J5, J6
4
Conn_02x12
J7, J8, J9, J10
1
SW_SPDT
SW1
2
SW_Push
SW2, SW3
1
XFL4015-471MEC
L1
1
AOTA-B201610S3R3-101-T
L2
6
10u
C1, C2, C3, C23, C24, C25
13
100n
C4, C6, C7, C8, C9, C10, C11, C12 +5
2
1u
C5, C26
3
4.7u
C17, C18, C19
Show 10 more
QtyPartRefs
2
15p
C21, C22
2
10k
R1, R16
8
27
R2, R4, R5, R7, R8, R11, R19, R20
1
511k
R3
1
91k
R6
2
5.1k
R9, R10
4
0
R12, R14, R17, R21
5
1k
R13, R22, R23, R24, R25
1
470
R15
1
33
R18

Rp2350a main board design files

The KiCad project lives in the Crem2y/rp2350a_main_board repository on GitHub; these links point at the commit this page was built from.

Rp2350a main board: common questions

What microcontroller does the Rp2350a main board use?

The Rp2350a main board is built around the RP2350_60QFN, from the RP2040/RP2350 family.

How big is the Rp2350a main board?

The Rp2350a main board measures 63.5 × 40.6 mm, has 2 copper layers and is 1 mm thick.

How many components are on the Rp2350a main board?

73 components, from 30 distinct parts. The full bill of materials is listed on this page.

Where can I download the Rp2350a main board design files?

From the Crem2y/rp2350a_main_board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Rp2350a main board design in my own project?

The repository has no license, so all rights stay with Crem2y. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Rp2350a main board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
