Hardware
About the Hardware PCB
Hardware is an open source PCB design by CropSentry, published on GitHub under the GPL-3.0 license. It is a board, with 13 components from 9 distinct parts.
Other key parts include the SGP41-D-R4, BME688 and SHT4x. By type, the board carries 5 ICs, 5 capacitors and 3 resistors.
It belongs with the power & battery, sensors and rf & radio designs in this gallery.
From the project
A solar-powered field sensor node that watches crops for stress signals before symptoms are visible.
A solar-powered field sensor node that watches crops for stress signals before symptoms are visible.
**_______________________________________________________________________________________**
CropSentry is a battery-and-solar sensor node that sits in a field and measures the volatile organic compounds a plant emits, alongside soil moisture and ambient conditions. Plants under stress change their VOC output before visible symptoms appear, so a node reading those compounds continuously can flag a problem earlier than a person walking rows.
Main components on the Hardware
Hardware bill of materials (BOM)
13 components, 9 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SGP41-D-R4 | XDCR_SGP41-D-R4 | U1 |
| 1 | BME688 | IC_BME688 | U2 |
| 1 | SHT4x | Sensirion_DFN-4_1.5x1.5mm_P0.8mm_SHT4x_NoCentralPad | U3 |
| 2 | — | U4, U5 | |
| 4 | 100 nF | C2, C3, C4, C6 | |
| 1 | 1 µF | C_0805_2012Metric | C5 |
| 1 | 100 Ω | R1 | |
| 1 | 10k | R2 | |
| 1 | 10kΩ | R6 |
Hardware design files
The KiCad project lives in the CropSentry/Hardware repository on GitHub; these links point at the commit this page was built from.
Hardware: common questions
How many components are on the Hardware?
13 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Hardware design files?

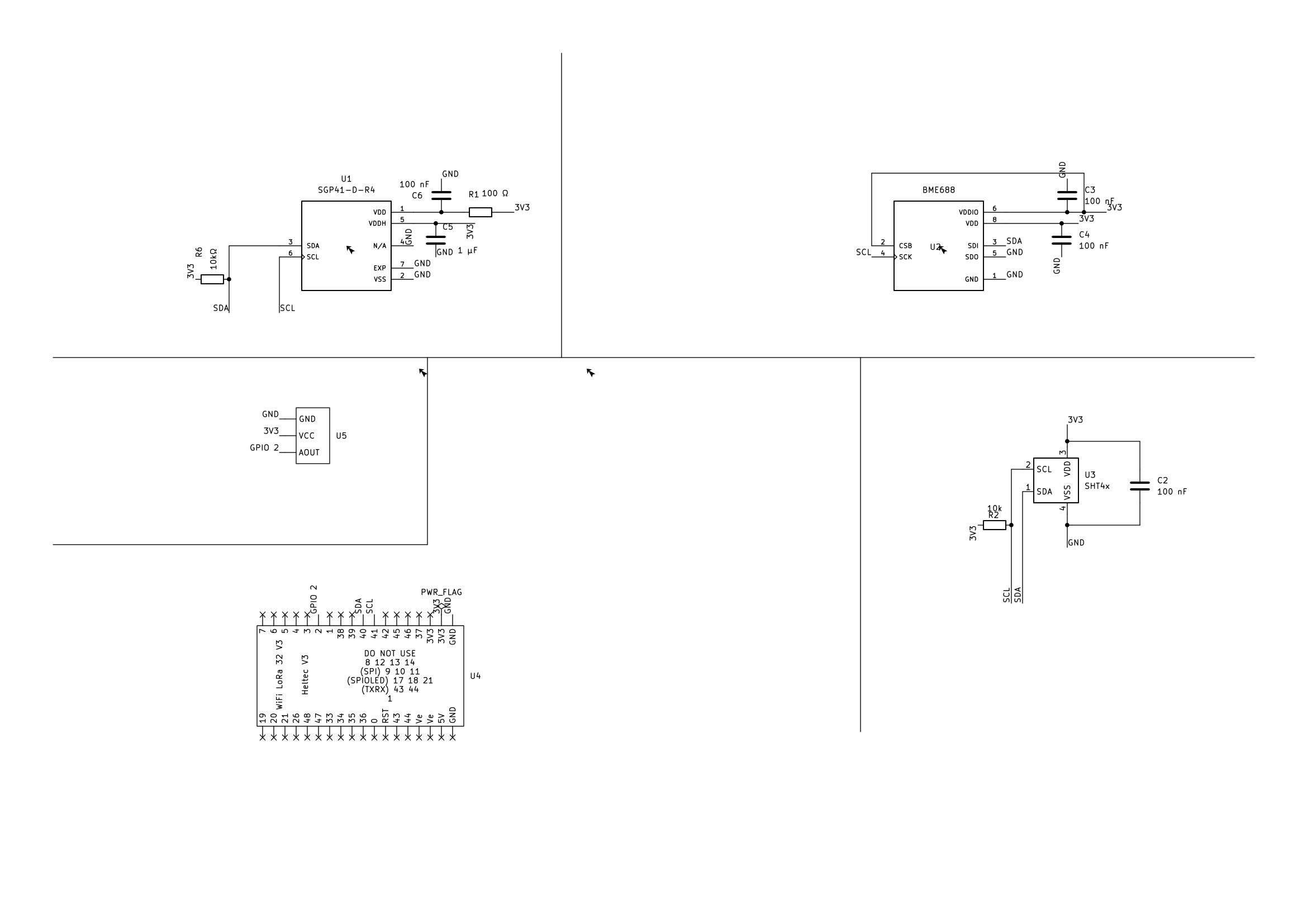

From the CropSentry/Hardware repository on GitHub, which has the schematic and the BOM; the links under Design files point to each one.
Can I use the Hardware design in my own project?
Yes, under the terms of its GPL-3.0 license, which CropSentry chose for the repository.
