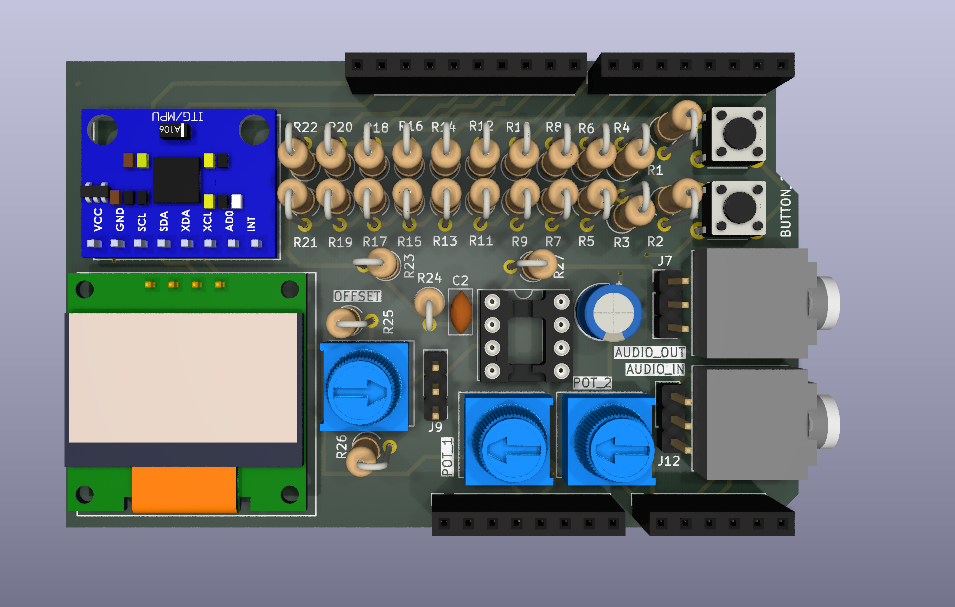

Uno Shield DSP Class v1
About the Uno Shield DSP Class v1
Uno Shield DSP Class v1 is an open source PCB design by cshieldsce, published on GitHub. It is a 2-layer board measuring 83.8 × 53.3 mm, with 46 components from 20 distinct parts.
Other key parts include the MCP6002-xP. By type, the board carries 27 resistors, 11 connectors, 2 switches, 2 capacitors and 1 IC.
It belongs with the dev boards & breakouts designs in this gallery, and the repository also holds 1 earlier revision of it.
Main components on the Uno Shield DSP Class v1
Uno Shield DSP Class v1 bill of materials (BOM)
46 components, 20 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MCP6002-xP | DIP-8_W7.62mm_Socket_LongPads | U1 |
| 1 | Power | PinSocket_1x08_P2.54mm_Vertical | J1 |
| 1 | Digital/PWM | PinSocket_1x10_P2.54mm_Vertical | J2 |
| 1 | Analog | PinSocket_1x06_P2.54mm_Vertical | J3 |
| 1 | Digital/PWM | PinSocket_1x08_P2.54mm_Vertical | J4 |
| 1 | IMU_CONN | PinSocket_1x08_P2.54mm_Vertical | J5 |
| 1 | SCREEN_CONN | PinHeader_1x04_P2.54mm_Vertical | J6 |
| 1 | AUDIO_OUT | PinHeader_1x03_P2.54mm_Vertical | J7 |
| 1 | JUMPER | PinHeader_1x03_P2.54mm_Vertical | J9 |
| 2 | AudioJack5 | Jack_3.5mm_CUI_SJ1-3525N_Horizontal | J10, J11 |
| 1 | AUDIO_IN | PinHeader_1x03_P2.54mm_Vertical | J12 |
| 3 | 100k | Potentiometer_Bourns_3386P_Vertical | RV1, RV2, RV3 |
| 1 | BT_1 | SW_PUSH_6mm | SW1 |
| 1 | BT_2 | SW_PUSH_6mm | SW2 |
| 1 | 47uF | CP_Radial_D6.3mm_P2.50mm | C1 |
| 1 | 100pF | C_Disc_D5.0mm_W2.5mm_P2.50mm | C2 |
| 2 | 100k | R_Axial_DIN0309_L9.0mm_D3.2mm_P2.54mm_Vertical | R1, R2 |
| 15 | 20k | R_Axial_DIN0309_L9.0mm_D3.2mm_P2.54mm_Vertical | R3, R4, R6, R8, R10, R12, R14, R16 +7 |
| 9 | 10k | R_Axial_DIN0309_L9.0mm_D3.2mm_P2.54mm_Vertical | R5, R7, R9, R11, R13, R15, R17, R19 +1 |
| 1 | 1k | R_Axial_DIN0309_L9.0mm_D3.2mm_P2.54mm_Vertical | R27 |
Uno Shield DSP Class v1 design files
The KiCad project lives in the cshieldsce/ENCE_3210_Charlie_Shields_2026 repository on GitHub; these links point at the commit this page was built from.
Uno Shield DSP Class v1: common questions
How big is the Uno Shield DSP Class v1?
The Uno Shield DSP Class v1 measures 83.8 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Uno Shield DSP Class v1?
46 components, from 20 distinct parts. The full bill of materials is listed on this page.
Where can I download the Uno Shield DSP Class v1 design files?
From the cshieldsce/ENCE_3210_Charlie_Shields_2026 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Uno Shield DSP Class v1 design in my own project?
The repository has no license, so all rights stay with cshieldsce. Use it as a reference, and ask the author before reusing the design.
