Final PCB layout, top view — open source AVR/Arduino board by cshieldsce

About the Final PCB

Final is an open source AVR/Arduino PCB design by cshieldsce, published on GitHub. It is a 2-layer board measuring 59.1 × 55.4 mm, with 20 components from 15 distinct parts.

Its main chip is the Arduino_Uno_R3_Shield, from the AVR/Arduino family. Other key parts include the SparkFun OpenLog, LD1117V33 and TMP36. By type, the board carries 4 diodes, 4 resistors, 3 ICs, 3 connectors, 3 capacitors and 1 module.

It belongs with the sensors and dev boards & breakouts designs in this gallery.

From the project

ENCE 3210 Microprocessors 1 | Winter Quarter 2026 | Final Project Created by: Charlie Shields

ENCE 3210 Microprocessors 1 | Winter Quarter 2026 | Final Project Created by: Charlie Shields

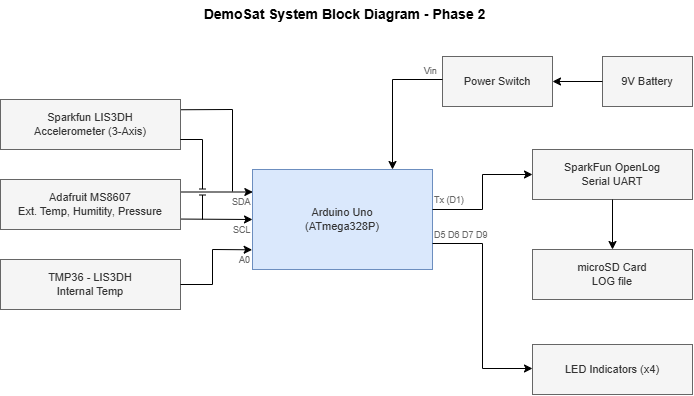

This phase contains the final custom PCB design for the DemoSat project — a sensor data logging system built around an Arduino Uno (ATmega328P). The board interfaces with multiple sensors, logs data to a microSD card, and provides visual status indicators.

The PCB acts as a shield/carrier board for the Arduino Uno and integrates the following components:

Final, from the project README
From the project README

Main components on the Final

SparkFun OpenLogLD1117V33TMP36Arduino_Uno_R3_Shield

Final bill of materials (BOM)

20 components, 15 distinct parts.

QtyPartRefs
1
SparkFun OpenLog
U1
1
LD1117V33
U4
1
TMP36
U6
1
Arduino_Uno_R3_Shield
A1
1
Adafruit MS8607
J1
2
Conn_01x06_Pin
J2, J3
1
Battery
BT1
1
SW_SPST
SW1
1
LED1
D1
1
LED2
D2
1
LED3
D3
1
LED4
D4
2
10µF
C1, C2
1
0.1uF
C3
4
470
R1, R2, R3, R4

Final design files

The KiCad project lives in the cshieldsce/ENCE_3210_Charlie_Shields_2026 repository on GitHub; these links point at the commit this page was built from.

Final: common questions

What microcontroller does the Final use?

The Final is built around the Arduino_Uno_R3_Shield, from the AVR/Arduino family.

How big is the Final PCB?

The Final measures 59.1 × 55.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Final?

20 components, from 15 distinct parts. The full bill of materials is listed on this page.

Where can I download the Final design files?

From the cshieldsce/ENCE_3210_Charlie_Shields_2026 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Final design in my own project?

The repository has no license, so all rights stay with cshieldsce. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Final without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
