60WKeyboard PCB layout, top view — open source Nordic nRF board by dac63701

About the 60WKeyboard PCB

60WKeyboard is an open source Nordic nRF PCB design by dac63701, published on GitHub. It is a 4-layer board measuring 285 × 95 mm, with 296 components from 40 distinct parts.

Its main chip is the NRF52840, from the Nordic nRF family. Other key parts include the TXB0101DRL. By type, the board carries 93 capacitors, 62 diodes, 61 switches, 61 LEDs, 6 resistors and 4 connectors.

It belongs with the keyboards and iot & wireless designs in this gallery.

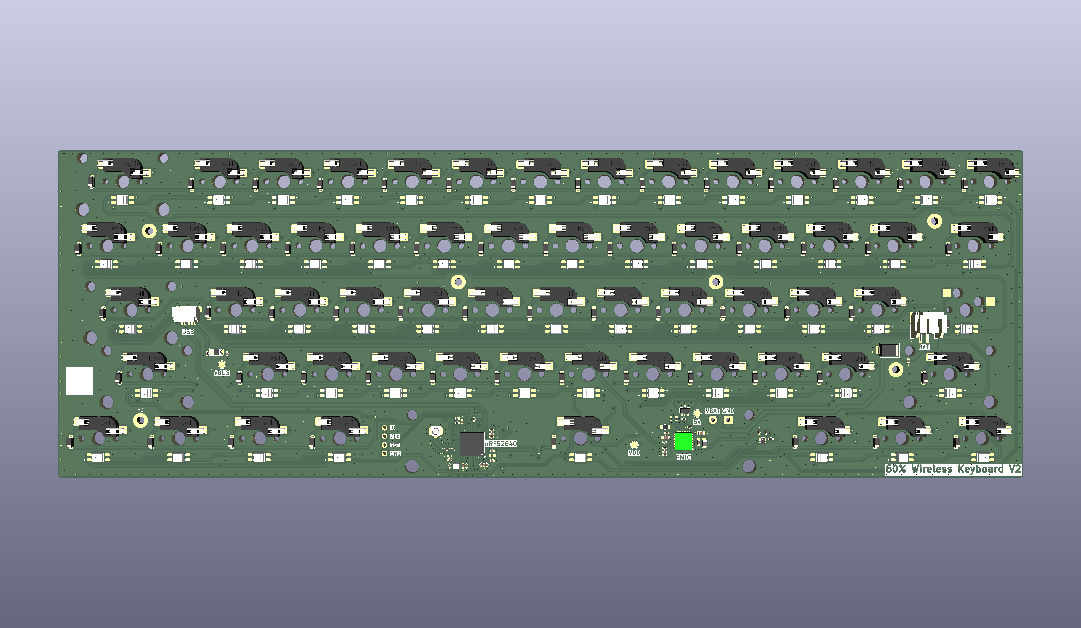

60WKeyboard, from the project README
From the project README

Main components on the 60WKeyboard

NRF52840TXB0101DRL

60WKeyboard bill of materials (BOM)

296 components, 40 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
NRF52840
nRF52840
U1
1
TXB0101DRL
U2
1
ABM11W-32.0000MHZ-7-D1X-T3
Y1
1
ECS-.327-7-12
ECS-.327-7-12-TR
Y2
1
CONN_02X01_MOUNTINGPIN
Conn_02x01_MountingPin
J1
1
CONN_01X04_SOCKET
Conn_01x04_Socket
J2
1
CONN_01X05_MOUNTINGPIN
Conn_01x05_MountingPin
J4
1
Conn_Coaxial
J5
1
SI3865DDV-T1-GE3
MOSFET1
46
Keyswitch
S1, S6, S7, S8, S10, S11, S12, S13 +38
2
Keyswitch
S2, S58
1
Keyswitch
S3
2
Keyswitch
S4, S59
7
Keyswitch
S5, S9, S14, S48, S53, S56, S61
1
Keyswitch
S31
1
Keyswitch
S57
1
Keyswitch
S60
61
SK6812-E
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +53
1
D_TVS
D1
61
Diode
D2, D3, D4, D5, D6, D7, D8, D9 +53
Show 20 more
QtyPartRefs
1
300R
FB1
1
2.2UH
2.2uH
L1
1
4.7NH
4.7nH
L2
1
2.2NH
2.2nH
L3
70
100NF
100nF
C1, C6, C8, C10, C13, C14, C30, C31 +62
3
4.7UF
4.7uF
C2, C3, C5
3
1UF
1uF
C4, C11, C15
1
DNP
C7
1
100PF
100pF
C9
4
8PF
8pF
C12, C17, C18, C19
1
2.2UF
2.2uF
C16
3
10UF
10uF
C20, C21, C22
3
3.3UF
3.3uF
C23, C24, C25
1
1PF
1pF
C26
2
0.1UF
0.1uF
C27, C29
1
1.2PF
1.2pF
C28
1
250K
250k
R1
3
10K
10k
R2, R3, R6
1
300
R5
1
100k
R7

60WKeyboard design files

The KiCad project lives in the dac63701/60WKeyboard repository on GitHub; these links point at the commit this page was built from.

60WKeyboard: common questions

What microcontroller does the 60WKeyboard use?

The 60WKeyboard is built around the NRF52840, from the Nordic nRF family.

How big is the 60WKeyboard PCB?

The 60WKeyboard measures 285 × 95 mm, has 4 copper layers and is 1.6062 mm thick.

How many components are on the 60WKeyboard?

296 components, from 40 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the 60WKeyboard design files?

From the dac63701/60WKeyboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the 60WKeyboard design in my own project?

The repository has no license, so all rights stay with dac63701. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the 60WKeyboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
