STM32F030K6T6TR Devel
About the STM32F030K6T6TR Devel PCB
STM32F030K6T6TR Devel is an open source STM32 PCB design by danielvilas, published on GitHub under the MIT license. It is a 4-layer board measuring 69 × 50 mm, with 32 components from 21 distinct parts.
Its main chip is the STM32F030K6Tx, from the STM32 family. Other key parts include the AMS1117-3.3. By type, the board carries 11 capacitors, 7 connectors, 5 resistors, 3 diodes, 2 ICs and 2 switches.

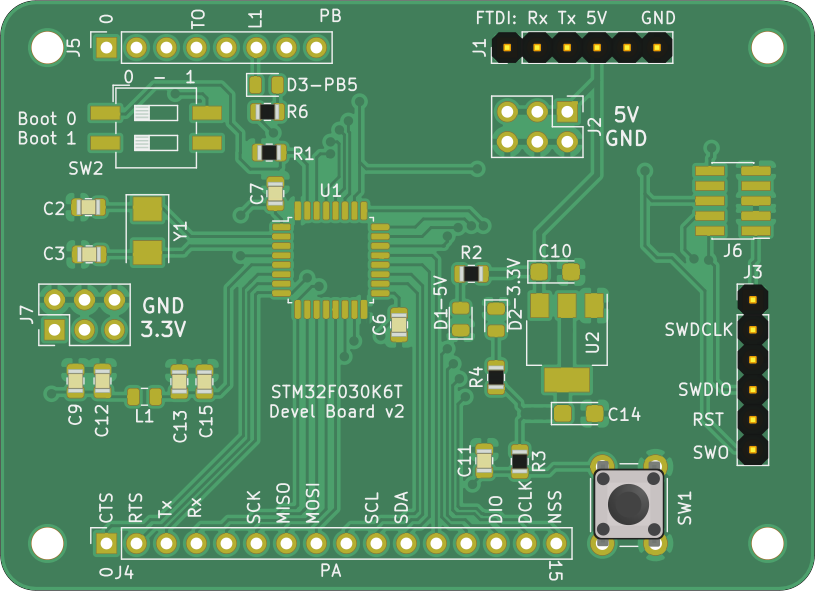

From the project
Digital Trains
Main components on the STM32F030K6T6TR Devel
STM32F030K6T6TR Devel bill of materials (BOM)
32 components, 21 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32F030K6Tx | LQFP-32_7x7mm_P0.8mm | U1 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U2 |
| 1 | 8MHz | Crystal_SMD_5032-2Pin_5.0x3.2mm | Y1 |
| 2 | Conn_01x06 | PinHeader_1x06_P2.54mm_Vertical | J1, J3 |
| 2 | Conn_02x03_Odd_Even | PinHeader_2x03_P2.54mm_Vertical | J2, J7 |
| 1 | Conn_01x16 | PinSocket_1x16_P2.54mm_Vertical | J4 |
| 1 | Conn_01x16 | PinSocket_1x08_P2.54mm_Vertical | J5 |
| 1 | Conn_02x05 Odd_Even | PinHeader_2x05_P1.27mm_Vertical_SMD | J6 |
| 1 | SW_Push | SW_PUSH_6mm | SW1 |
| 1 | SW_DIP_x02 | SW_DIP_SPSTx02_Slide_6.7x6.64mm_W8.61mm_P2.54mm_LowProfile | SW2 |
| 1 | RED | LED_0805_2012Metric | D1 |
| 1 | BLUE | LED_0805_2012Metric | D2 |
| 1 | GREEN | LED_0805_2012Metric | D3 |
| 1 | 10uH | L_0805_2012Metric | L1 |
| 2 | 20pf | C_0805_2012Metric | C2, C3 |
| 3 | 100nf | C_0805_2012Metric | C6, C7, C11 |
| 2 | 1uF | C_0805_2012Metric | C9, C13 |
| 2 | 10uf | CP_EIA-3216-18_Kemet-A | C10, C14 |
| 2 | 10nF | C_0805_2012Metric | C12, C15 |
| 3 | 10K | R_0805_2012Metric | R1, R2, R3 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 1K | R_0805_2012Metric | R4, R6 |
STM32F030K6T6TR Devel design files
The KiCad project lives in the danielvilas/DigitalTrains repository on GitHub; these links point at the commit this page was built from.
STM32F030K6T6TR Devel: common questions
What microcontroller does the STM32F030K6T6TR Devel use?
The STM32F030K6T6TR Devel is built around the STM32F030K6Tx, from the STM32 family.
How big is the STM32F030K6T6TR Devel PCB?
The STM32F030K6T6TR Devel measures 69 × 50 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the STM32F030K6T6TR Devel?
32 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the STM32F030K6T6TR Devel design files?
From the danielvilas/DigitalTrains repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the STM32F030K6T6TR Devel design in my own project?
Yes, under the terms of its MIT license, which danielvilas chose for the repository.
Can I test firmware for the STM32F030K6T6TR Devel without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
